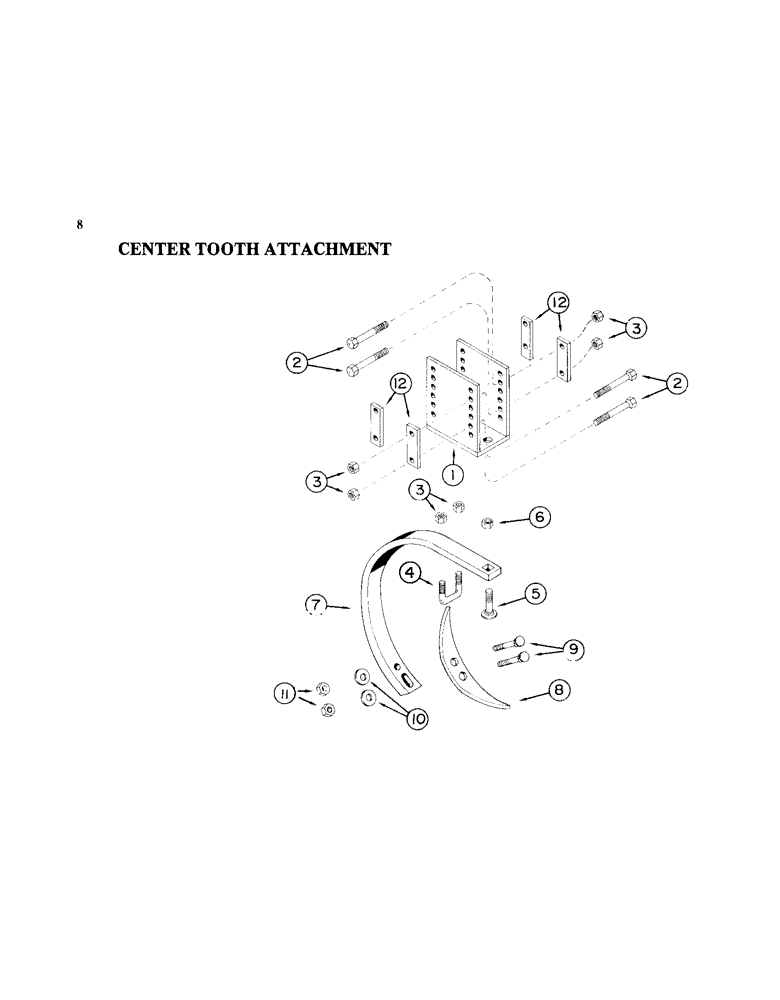

Запчасти Case IH K23 (08) - CENTER TOOTH ATTACHMENT

1

T54081

MOUNTING PARTS

Buster - Balk

1шт.

2

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- Machine 5/8 x 5 NC, PL, GR5

8шт.

3

230-41110

LOCK NUT,5/8"-11, GA

Nut - Lock 5/8 NC, PL

10шт.

4

T54083

U-BOLT

Bolt - "U" 5/8 Dia

1шт.

5

111-707

CARRIAGE BOLT,Short NK, 3/4" -10 x 2 1/2", G8

Bolt - Carriage 3/4 x 2-1/2 NC, PL

1шт.

6

131-385

LOCK NUT,3/4"-10, GA

Nut - Lock 3/4 NC, PL

1шт.

7

T52735

SHANK

Tine

1шт.

8

T52734

SHANK

Spike

1шт.

9

19-836

BOLT

- Plow 1/2 x 2-1/4 NC, PL

2шт.

10

195-106

WASHER,1/2"

- 1/2 PL

2шт.

11

131-165

NUT,1/2"-13, GA

Nut - Lock 1/2 NC, PL

2шт.

12

T54082

STRAP

- Clamp 1/2 x 1-1/2 x 5-1/4 Long

4шт.

T91123

Center Tooth Attachment - Complete

1шт.
