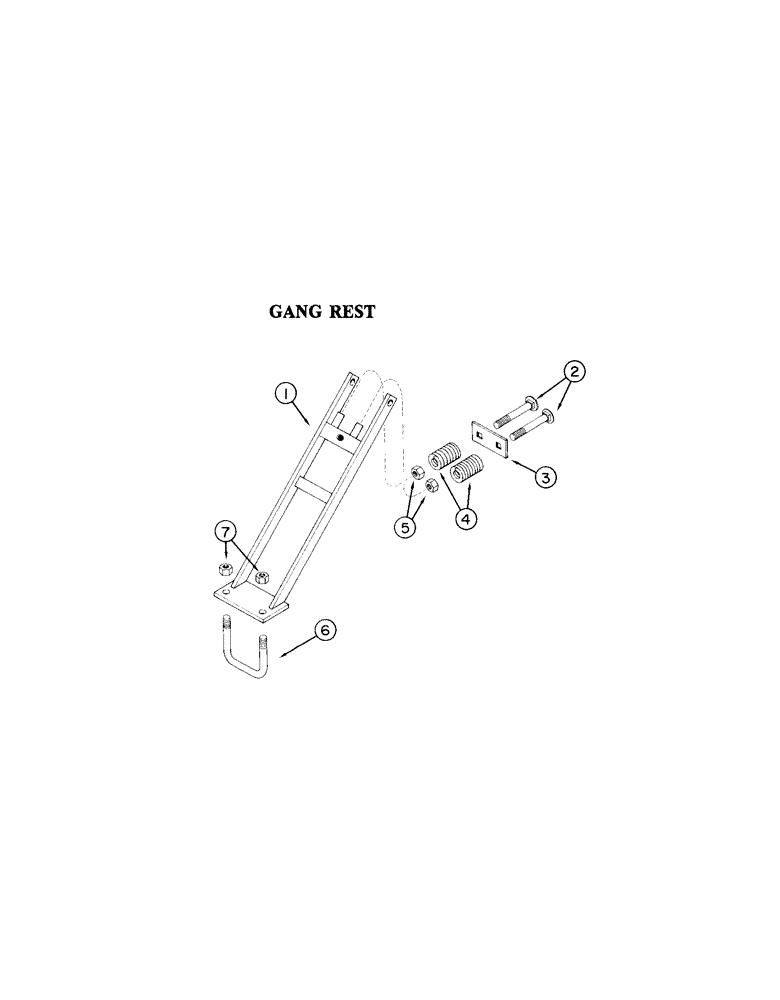

Запчасти Case IH K23 (08[1]) - CASE K23 SERIES DISK HARROW GANG REST

1

T53838

BRACKET

Rest - Gang

4шт.

2

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

Bolt - Carriage 5/8 x 6 NC, PL

8шт.

3

T53213

Pad - Bumper

4шт.

4

T53212

Spring

8шт.

5

230-41110

LOCK NUT,5/8"-11, GA

Nut - Lock 5/8 NC, PL

8шт.

6

T53186

U-BOLT

Bolt - U

4шт.

7

131-385

LOCK NUT,3/4"-10, GA

Nut - Lock 3/4 NC, PL

8шт.

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

(Not Shown) Hex, 3/4"-10 x 5", G5

4шт.
