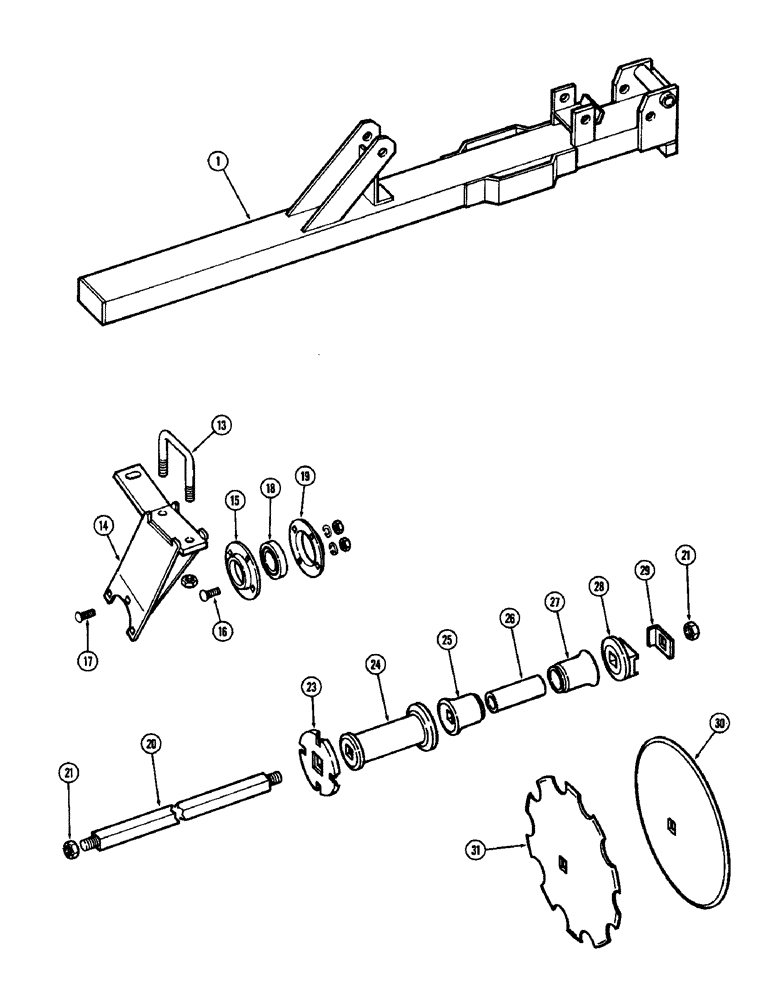

Запчасти Case IH F21H (098[1]) - REAR LEFT GANG, 7 INCH SPACING, F21H

1

T55078

FRAME - gang

1шт.

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16"

1шт.

13

T53186

U-BOLT

U BOLT

3шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

6шт.

14

T53700

RISER

- bearing, R.H.

3шт.

15

T53705

FLANGE

TTE

3шт.

16

111-401

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2

BOLT - 7/16" x 1" cge., Z.P.

3шт.

17

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" cge., Z.P.

9шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

129-104

NUT,7/16"-14, G5

12шт.

18

T53781

BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W

BEARING

3шт.

19

T53704

FLANGE

TTE

3шт.

20

T55093

BOLT

BOLT - gang, 1-1/8" x 70"

1шт.

21

25-1618

NUT,1 1/8"-7, G5, Hvy

- 1-1/8" N.C. hex.

2шт.

23

T55045

WASHER

- bumper

1шт.

24

T53996

SPOOL

- spacer (214, 228, 242)

6шт.

T53996

SPOOL

- spacer (256)

5шт.

25

T53706

BELL HOUSING

END BELL - small

3шт.

26

T53707

SLEEVE

- insert

3шт.

27

T53708

BELL HOUSING

END BELL - large

3шт.

28

T53710

WASHER

- end

1шт.

29

T53711

PLATE

- lock

1шт.

30

H2627S

DISC

BLADE - disk, 20" x 7 ga. solid

10шт.

30

T53740

BLADE

- disk, 20" x 9 ga. solid

10шт.

31

H5857S

DISC

BLADE - disk, 20" x 7 ga. notched

10шт.
