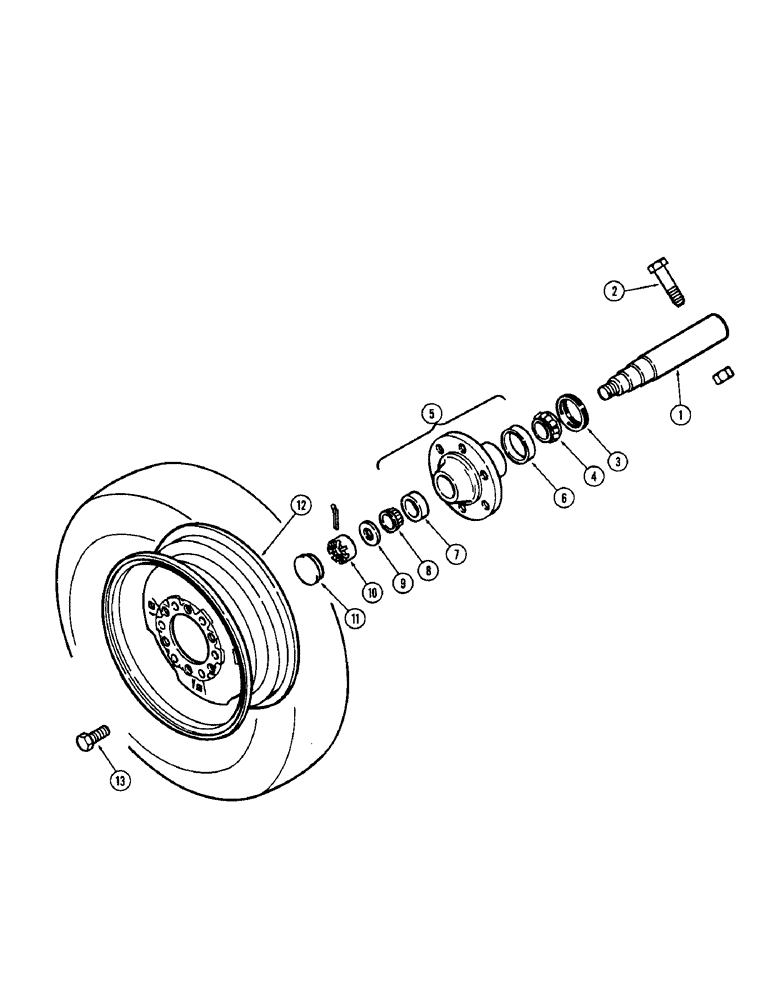

Запчасти Case IH F21H (014) - SPINDLE AND WHEEL, F21 & F21H, SINGLE AND DUAL WHEEL

1

T52707

SPINDLE

(Single wheel)

2шт.

T52707

SPINDLE

(Dual wheel)

4шт.

132-311

COTTER PIN,5/32" x 1 1/4"

(Single wheel) 5/32" x 1 1/4"

2шт.

132-311

COTTER PIN,5/32" x 1 1/4"

(Dual wheel) 5/32" x 1 1/4"

4шт.

2

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Single wheel) Hex, 3/8"-16 x 3 1/2", G5

2шт.

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Dual wheel) Hex, 3/8"-16 x 3 1/2", G5

4шт.

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock, 3/8" N.C. hex., Z.P. (Single wheel)

2шт.

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock, 3/8" N.C. hex., Z.P. (Dual wheel)

4шт.

3

T30028

SEAL

- grease (Single wheel)

2шт.

T30028

SEAL

- grease (Dual wheel)

4шт.

4

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing, inner (Single wheel)

2шт.

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing, inner (Dual wheel)

4шт.

5

T30011

HUB

- with cups (Single wheel)

2шт.

T30011

HUB

- with cups (Dual wheel)

4шт.

6

40421

BEARING CUP

CUP - bearing, inner

1шт.

7

A29977

BEARING CUP

CUP - bearing, outer

1шт.

8

A29976

ROLLER BEARING

CONE - bearing, outer (Single wheel)

2шт.

A29976

ROLLER BEARING

CONE - bearing, outer (Dual wheel)

4шт.

9

195-110

WASHER,7/8"

- 2-1/4" x 15/16" x 8 ga. (Single wheel)

2шт.

195-110

WASHER,7/8"

- 2-1/4" x 15/16" x 8 ga. (Dual wheel)

4шт.

10

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex., slotted (Single wheel)

2шт.

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex., slotted (Dual wheel)

4шт.

11

T30029

HUB CAP

CAP - hub (Order G57436) (Single wheel)

2шт.

T30029

HUB CAP

CAP - hub (Order G57436) (Dual wheel)

4шт.

12

T53675

WHEEL

- 15 x 6 (Order G57007) (Single wheel)

2шт.

T53675

WHEEL

- 15 x 6 (Order G57007) (Dual wheel)

4шт.

12

T53528

WHEEL

- 15 x 8 (Order A57879) (Single wheel)

2шт.

T53528

WHEEL

- 15 x 8 (Order A57879) (Dual wheel)

4шт.

13

A30064

BOLT

- wheel (Single wheel)

12шт.

A30064

BOLT

- wheel (Dual wheel)

24шт.
