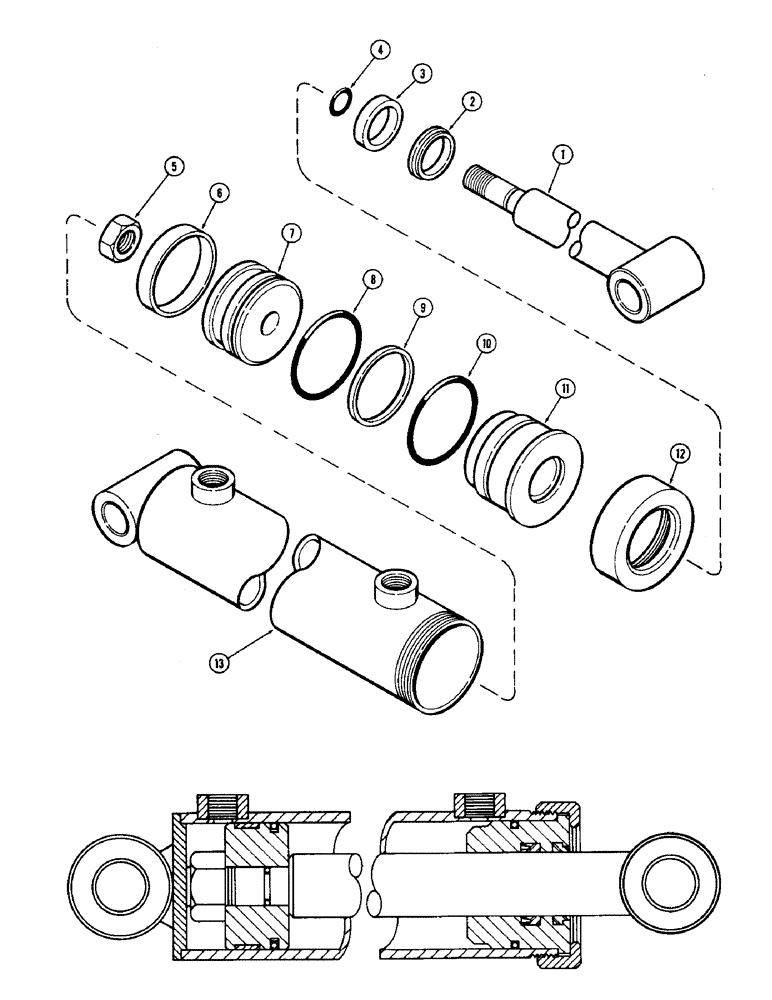

Запчасти Case IH F21H (164) - CYLINDER, T55101, F21H

T55101

CYLINDER - hydraulic, 2-1/2" x 16" complete

4шт.

1

T55113

ROD

1шт.

2

H232116

COLLAR

1шт.

3

H223271

WIPER SEAL

WIPER - rod

1шт.

Part of seal kit P/N T55118

1шт.

4

D32114

O-RING,0.75" ID x 0.875" OD

SEAL - rod

1шт.

Part of seal kit P/N T55118

1шт.

5

131-1252

LOCK NUT,7/8"-14, GC

NUT, LOCK, , Piston rod 7/8"-14, GC

1шт.

6

T55116

STRIP

- wear

1шт.

Part of seal kit P/N T55118

1шт.

7

T55111

PISTON

1шт.

8

T55115

SEAL

SEAL - piston

1шт.

Part of seal kit P/N T55118

1шт.

9

T55114

SEAL ASSY.

"O" RING - piston

1шт.

Part of seal kit P/N T55118

1шт.

10

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

SEAL - glang

1шт.

Part of seal kit P/N T55118

1шт.

11

T55110

GLAND

1шт.

12

H232108

SEAL

- rod

1шт.

Part of seal kit P/N T55118

1шт.

13

T55112

BARREL

1шт.

T55118

KIT

- seal, Includes: Ref. 3, 4, 6, 8, 9, 10 and 12

1шт.
