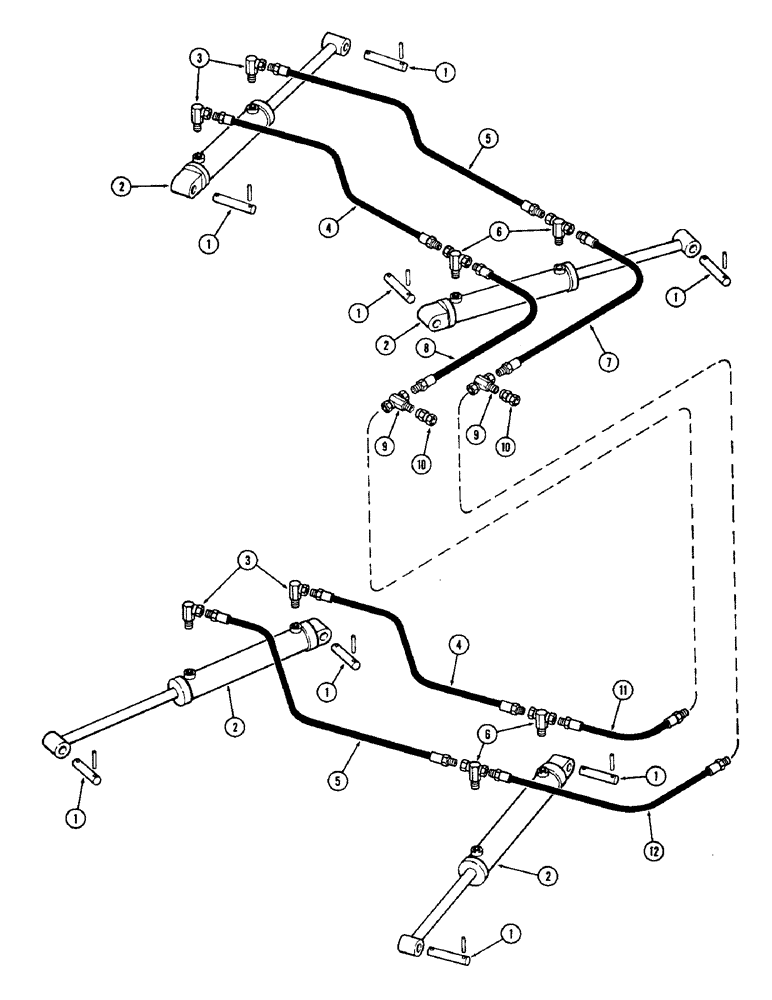

Запчасти Case IH F21H (162) - HYDRAULIC CURCUIT, F21H

1

T54078

PIN

- 1" x 5"

8шт.

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

16шт.

2

T55101

CYLINDER - wing lift (See page 164)

4шт.

3

218-922

ELBOW,90 Degree, 1/2" NPTF Male x 1/4" NPSM Fem Sw

- 1/2" x 90 degrees

4шт.

4

T55108

HOSE - 1/4" x 90"

2шт.

5

T55109

HOSE - 1/4" x 96"

2шт.

6

218-1426

FITTING

TEE - 1/4" x 1/2"

4шт.

7

F36230

HOSE - 1/4" x 72"

1шт.

8

T55106

HOSE - 1/4" x 60"

1шт.

9

T55104

FITTING

TEE - 1/4" x 1/2"

2шт.

10

218-911

HYD CONNECTOR,Sw, 1/2" NPT Fem x 1/2" NPSM Fem

UNION - swivel, 1/2" x 1/2"

2шт.

11

D29834

HOSE - 1/4" x 30"

1шт.

12

T55105

HOSE - 1/4" x 48"

1шт.
