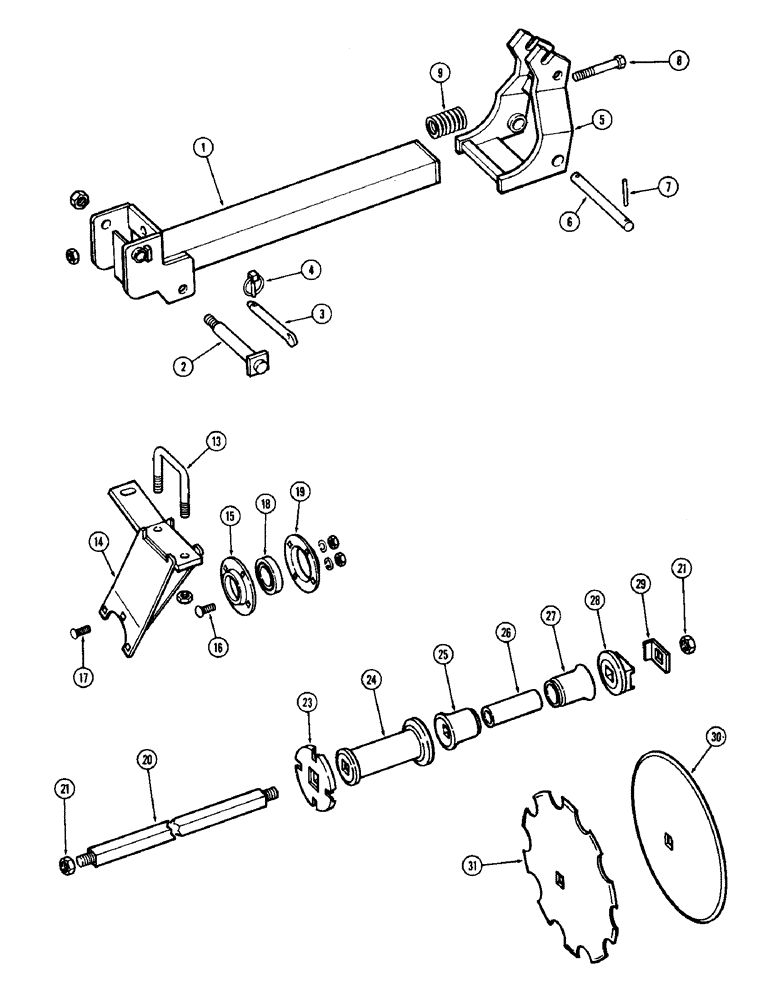

Запчасти Case IH F21H (142) - 4 BLADE WING GANG, FRONT LEFT, 9 INCH SPACING, F21H, F21H-9-216 & F21H-0-214

1

T55079

FRAME - gang

1шт.

2

T54676

PIN

- pivot

1шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

1шт.

3

T55083

PIN - wing hold

1шт.

4

A30338

PIN

- klik

1шт.

5

T55082

LATCH - wing

1шт.

6

T55084

PIN - latch, 1-1/16" x 10-5/8"

1шт.

7

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

8

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex., Z.P.

1шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

1шт.

9

T53212

SPRING

1шт.

13

T53186

U-BOLT

U BOLT

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

4шт.

14

T53713

RISER

- bearing, L.H.

2шт.

15

T53705

FLANGE

TTE

2шт.

16

111-401

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2

BOLT - 7/16" x 1" cge., Z.P.

2шт.

17

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" cge., Z.P.

6шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

129-104

NUT,7/16"-14, G5

8шт.

18

T53781

BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W

BEARING

2шт.

19

T53704

FLANGE

TTE

2шт.

20

T55097

BOLT

BOLT - gang, 1-1/8" x 32-1/4"

1шт.

21

25-1618

NUT,1 1/8"-7, G5, Hvy

- 1-1/8" N.C. hex.

2шт.

23

T55045

WASHER

- bumper

1шт.

24

T53997

SPOOL

- spacer

2шт.

25

T53754

BELL HOUSING

END BELL - small

2шт.

26

T53707

SLEEVE

- insert

2шт.

27

T53755

BELL HOUSING

END BELL - large

2шт.

28

T53710

WASHER

- end

1шт.

29

T53711

PLATE

- lock

1шт.

30

H2627S

DISC

BLADE - disk, 20" x 7 ga. solid

4шт.

30

T53740

BLADE

- dis, 20" x 9 ga. solid

4шт.

30

T53771

BLADE

- disk, 22" x 7 ga. solid (9-216)

4шт.

31

H5857S

DISC

BLADE - disk, 20" x 7 ga. notched

4шт.

31

H2594S

DISC

BLADE - disk, 22" x 7 ga. notched (0-216)

4шт.
