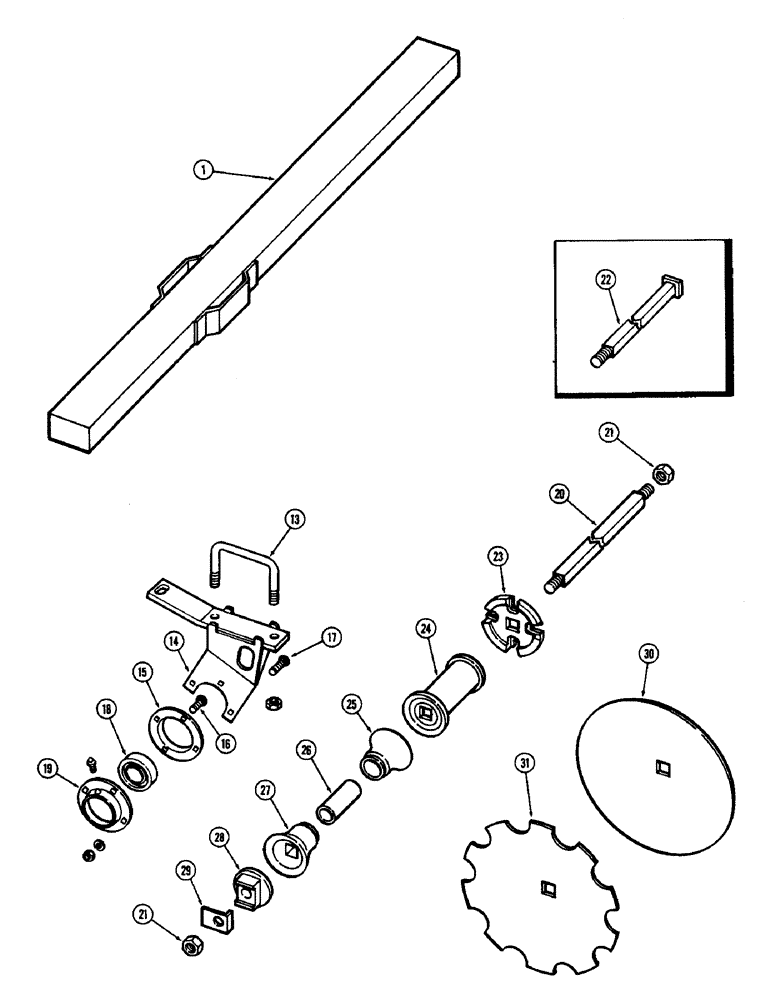

Запчасти Case IH F21 (016) - FRONT RIGHT GANG, 7 INCH SPACING, F21, F21-7-144 & 158

1

T55217

FRAME - gang (144)

1шт.

1

T55219

FRAME - gang (158)

1шт.

13

T53186

U-BOLT

U BOLT

3шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

6шт.

14

T53700

RISER

- bearing, R.H.

3шт.

15

T53705

FLANGE

TTE

3шт.

16

111-401

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2

BOLT - 7/16" x 1" cge., Z.P.

3шт.

17

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" cge., Z.P.

9шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

129-104

NUT,7/16"-14, G5

12шт.

18

T53781

BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W

BEARING

3шт.

REF#18 IS PRESSED FIT ON T53707 SLEEVE.

1шт.

19

T53704

FLANGE

TTE

3шт.

20

T55093

BOLT

BOLT - gang, 1-1/8" x 70" (Eff. ser. #1,606,900 & up) (144)

1шт.

20

T55128

BOLT

- gang, 1-1/8" x 77-3/8" (Eff. ser. #1,606,900 & up) (158)

1шт.

21

25-1618

NUT,1 1/8"-7, G5, Hvy

- 1-1/8" N.C. hex.

1шт.

21

25-1618

NUT,1 1/8"-7, G5, Hvy

- 1-1/8" N.C. hex. (Eff. ser. #1,606,900 & up)

2шт.

22

T53702

BOLT

- gang, 1-1/8" x 69" (144)

1шт.

22

T53718

BOLT

- gang, 1-1/8" x 76-3/8" (158)

1шт.

23

T53703

WASHER

- bumper (Order T55045)

1шт.

23

T55045

WASHER

- bumper (Eff. ser. #2251 & up)

1шт.

24

T53996

SPOOL

- spacer (Repl. T53709 inter) (144)

6шт.

24

T53996

SPOOL

- spacer (Repl. T53709 inter) (158)

7шт.

25

T53706

BELL HOUSING

END BELL - small

3шт.

26

T53707

SLEEVE

- insert

3шт.

27

T53708

BELL HOUSING

END BELL - large

3шт.

28

T53710

WASHER

- end

1шт.

29

T53711

PLATE

- lock

1шт.

30

H2627S

DISC

BLADE - disk, 20" x 7 ga. solid (144)

10шт.

30

H2627S

DISC

BLADE - disk, 20" x 7 ga. solid (158)

11шт.

30

T53740

BLADE

- disk, 20" x 9 ga. solid (144)

10шт.

30

T53740

BLADE

- disk, 20" x 9 ga. solid (158)

11шт.

31

H5857S

DISC

BLADE - disk, 20" x 7 ga. notched (144)

10шт.

31

H5857S

DISC

BLADE - disk, 20" x 7 ga. notched (158)

11шт.
