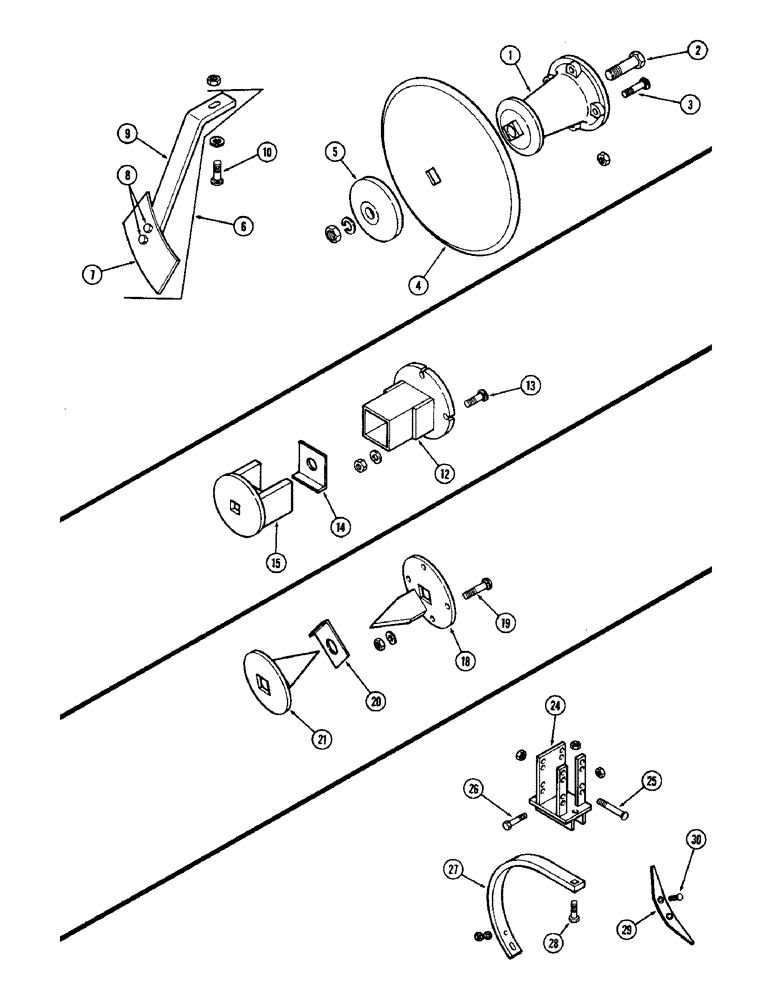

Запчасти Case IH F21 (174) - FEATHERING BLADES, F21 & F21H, WING GANG DRIVERS, F21, F21

1

T51685

SPOOL

SPACER - blade

2шт.

2

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- 7/8" N.C. hex., Z.P.

2шт.

192-29

LOCK WASHER,7/8"

7/8"

2шт.

129-109

NUT,7/8"-9, G5

2шт.

3

111-504

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G5

BOLT - 1/2" x 2-1/2" cge., Z.P.

8шт.

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

8шт.

4

H5860S

DISC

BLADE - disk, 16" x 10 ga. solid

2шт.

5

T51687

CAP

- blade

2шт.

6

T55087

SCRAPER

ASSEMBLY - R.H.

1шт.

6

T55088

SCRAPER

ASSEMBLY - L.H.

1шт.

7

T55102

HALF BLADE

BLADE - scraper

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

2шт.

9

NSS

NOT SOLD SEPARAT

LEG - scraper

1шт.

10

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2" x 1-1/2" cge., Z.P.

2шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

2шт.

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

2шт.

12

T53750

LOCK - gang, male (F21-9)

4шт.

T53750

LOCK - gang, male (F21-0)

2шт.

12

T53773

LOCK - gang, male (F21-7)

4шт.

T53773

LOCK - gang, male (F21-0)

2шт.

13

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2" x 1-1/2" cge., Z.P.

16шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

16шт.

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

16шт.

14

T53751

STRAP

4шт.

15

T53749

BLOCK DRIVER

LOCK - gang, female

4шт.

18

T55091

LOCK

- gang and end washer

4шт.

19

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2" x 2" cge., Z.P.

16шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

16шт.

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

16шт.

20

T53751

STRAP

4шт.

21

T55089

LOCK - gang, 7" spacing (F21H-7)

4шт.

T55089

LOCK - gang, 7" spacing (F21H-0)

2шт.

21

T55090

LOCK

- gang, 9" spacing (F21H-9)

4шт.

T55090

LOCK

- gang, 9" spacing (F21H-0)

2шт.

24

T53748

CLAMP

1шт.

25

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - 5/8" x 6" cge., Z.P.

4шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

4шт.

26

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" N.C. hex., Z.P.

1шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

1шт.

27

T52735

SHANK

- tooth, 1" x 2" x 22"

1шт.

28

111-707

CARRIAGE BOLT,Short NK, 3/4" -10 x 2 1/2", G8

BOLT - 3/4" x 2-1/2" cge., Z.P.

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

1шт.

29

T52734

SHANK

TOOTH - spike

1шт.

30

19-836

BOLT

- plow, 1/2" x 2-1/4" Z.P.

2шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga

2шт.

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

2шт.
