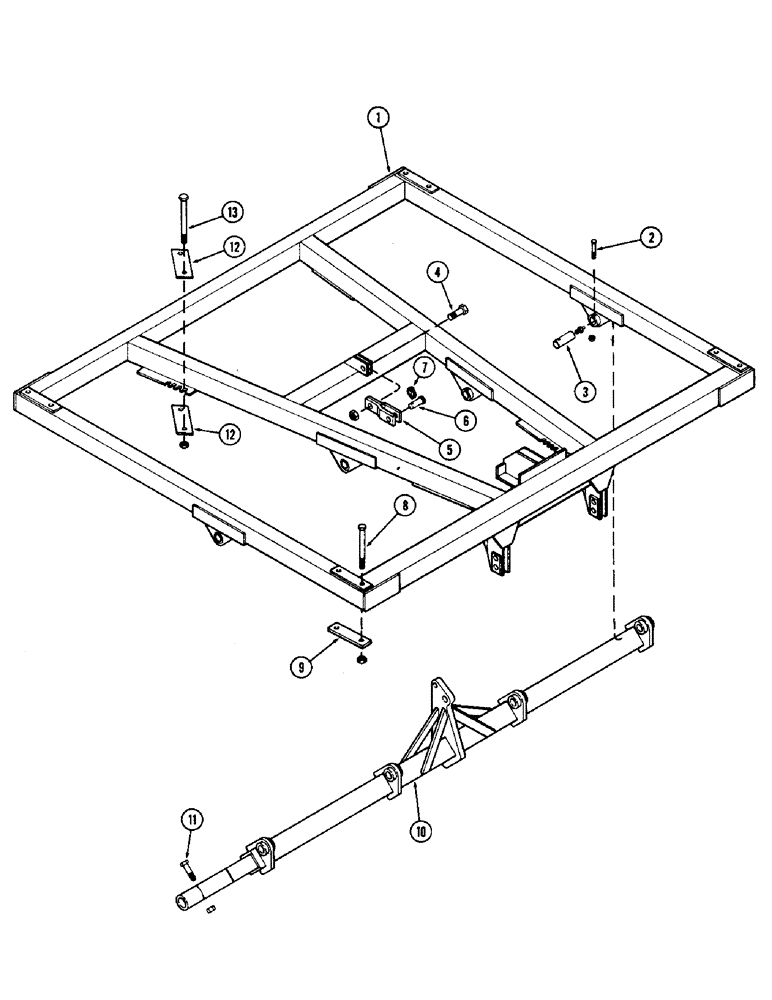

Запчасти Case IH F21 (010) - MAIN FRAME & ROCKSHAFT, F21

1

T53687

FRAME

- main

1шт.

2

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock, 3/8" N.C. hex., Z.P.

4шт.

3

T51587

PIN

- retainer

4шт.

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16"

4шт.

4

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- 1" x 3" N.C. hex., Z.P.

1шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

1шт.

5

T53696

STRAP - transport

1шт.

6

T53204

PIN - transport

1шт.

7

A30338

PIN

- klik

1шт.

8

113-828

BOLT,Hex, 7/8" - 9 x 9", Gr 5

- 7/8" x 9" N.C. hex., Z.P.

8шт.

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock, 7/8" N.C. hex., Z.P.

8шт.

9

T53695

STRAP

4шт.

10

T53688

ROCKSHAFT

1шт.

11

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock, 3/8" N.C. hex., Z.P.

2шт.

12

T53694

BRACKET - angle set

8шт.

13

113-830

BOLT - 7/8" x 10 N.C. hex., Z.P.

8шт.

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - lock, 7/8" N.C. hex., Z.P.

8шт.
