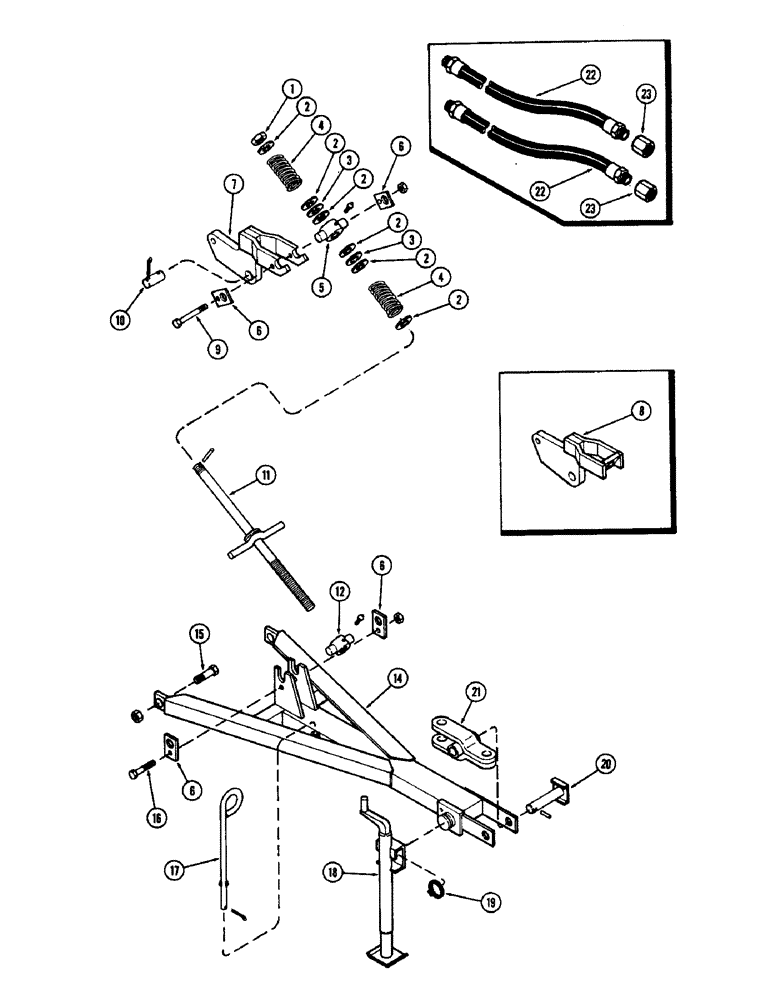

Запчасти Case IH F21 (006) - HITCH, F21

1

129-153

X

NUT - jam, 1-3/8" N.C. hex., Z.P.

1шт.

2

195-114

WASHER,1 3/8"

- 3-1/4" x 1-1/2" x 7 ga.

6шт.

3

T54555

WASHER

- thrust, teflon (Effective on F21-7 ser. #2251, F21-9 ser. #5333 & F21-0 ser. #158)

2шт.

4

T51576

SPRING

- stabilizer

2шт.

5

T54556

PIVOT

SWIVEL - (Effective on F21-7 ser. #2251, F21-9 ser. #5333 & F21-0 ser. #158)

1шт.

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16"

1шт.

6

T52681

CLAMP

- trunnion

4шт.

7

T54554

MOUNT - cylinder (Effective on F21-7 ser. #2251, F21-9 ser. #5333 & F21-0 ser. #158)

1шт.

8

T53692

MOUNT - cylinder

1шт.

9

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

1шт.

10

T53201

PIN - pivot

1шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

11

T53693

ROD - stabilizer

1шт.

11

T54553

ROD - stabilizer (Effective on F21-7 ser. #2251, F21-9 ser. #5333 & F21-0 ser. #158)

1шт.

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

12

T53870

PIVOT

SWIVEL - stabilizer (Effective on F21-7 ser. #2001, F21-9 ser. #5014 & F21-0 ser. #102)

1шт.

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 5/16"

1шт.

14

T53691

TOW BAR

TONGUE - pull

1шт.

15

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

2шт.

REF#15 ANOTHER BOLT USED 113-926 10/28/96

1шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

2шт.

16

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex., Z.P.

1шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

1шт.

17

T53995

HOLDER - hose (Rep. T751570 inter)

1шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

18

T51689

JACK

- tongue

1шт.

19

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

20

T53690

PIN

- clevis

1шт.

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

21

T53689

CLEVIS

1шт.

22

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - extension, 32" (For portable cylinder)

2шт.

23

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- hose, 1/2" x 7/8"

2шт.
