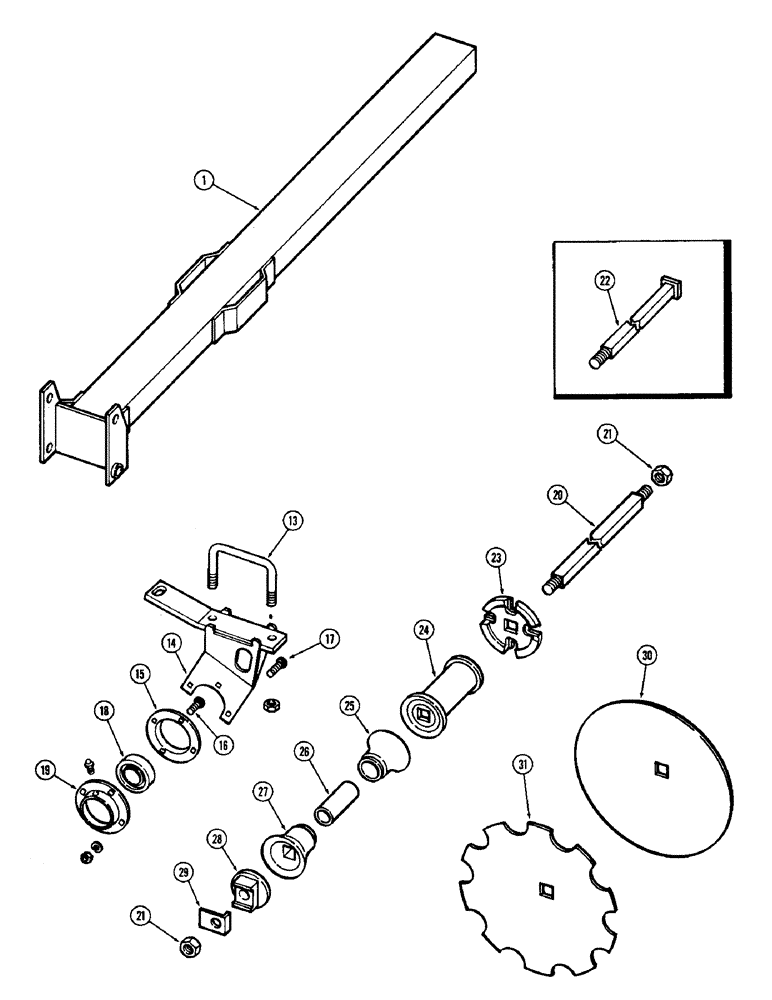

Запчасти Case IH F21 (062) - FRONT RIGHT GANG, 9 INCH SPACING, F21, F21-0-214, 242, 256
№
Артикул
Название
Примечание
Количество
1
T54680
FRAME
- gang (0-214, 0-242)
1шт.
1
T54679
FRAME
- gang (0-256)
1шт.
13
T53186
U-BOLT
U BOLT
3шт.
131-385
LOCK NUT,3/4"-10, GA
NUT - lock, 3/4" N.C. hex., Z.P.
6шт.
14
T53700
RISER
- bearing, R.H.
3шт.
15
T53705
FLANGE
TTE
3шт.
16
111-401
CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2
BOLT - 7/16" x 1" cge., Z.P.
3шт.
17
111-410
CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5
BOLT - 7/16" x 1-1/2" cge., Z.P.
9шт.
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
12шт.
129-104
NUT,7/16"-14, G5
12шт.
18
T53781
BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W
BEARING
3шт.
19
T53704
FLANGE
TTE
3шт.
20
T55098
BOLT
BOLT - gang, 1-1/8" x 69-1/16" (Eff. ser. #1, 606, 840 & up) (0-214, 0-242)
1шт.
20
T55129
BOLT
- gang, 1-1/8" x 78-1/4" (Eff. ser. #1, 606, 840 & up) (0-256)
1шт.
21
25-1618
NUT,1 1/8"-7, G5, Hvy
- 1-1/8" N.C. hex.
1шт.
25-1618
NUT,1 1/8"-7, G5, Hvy
- 1-1/8" N.C. hex. (Eff. ser. #1, 606, 840 & up)
2шт.
22
T53753
BOLT
- gang, 1-1/8" x 68-1/16" (0-214, 0-242)
1шт.
22
T53760
BOLT
- gang, 1-1/8" x 77-1/4" (0-256)
1шт.
23
T53703
WASHER
- bumper (Order T55045)
1шт.
23
T55045
WASHER
- bumper (Eff. ser. #158 & up)
1шт.
24
T53997
SPOOL
- spacer (Rep. T53756 inter) (0-214)
3шт.
T53997
SPOOL
- spacer (Rep. T53756 inter) (0-242)
4шт.
T53997
SPOOL
- spacer (Rep. T53756 inter) (0-256)
5шт.
25
T53754
BELL HOUSING
END BELL - small
3шт.
26
T53707
SLEEVE
- insert
3шт.
27
T53755
BELL HOUSING
END BELL - large
3шт.
28
T53710
WASHER
- end
1шт.
29
T53711
PLATE
- lock
1шт.
30
H2627S
DISC
BLADE - disk, 20" x 7 ga. solid (0-214, 0-242)
8шт.
H2627S
DISC
BLADE - disk, 20" x 7 ga. solid (0-256)
9шт.
30
T53740
BLADE
- disk, 20" x 9 ga. solid (0-214, 0-242)
8шт.
T53740
BLADE
- disk, 20" x 9 ga. solid (0-256)
9шт.
31
H5857S
DISC
BLADE - disk, 20" x 7 ga. notched (0-214, 0-242)
8шт.
H5857S
DISC
BLADE - disk, 20" x 7 ga. notched (0-256)
9шт.
Выбрано товаров: 34
