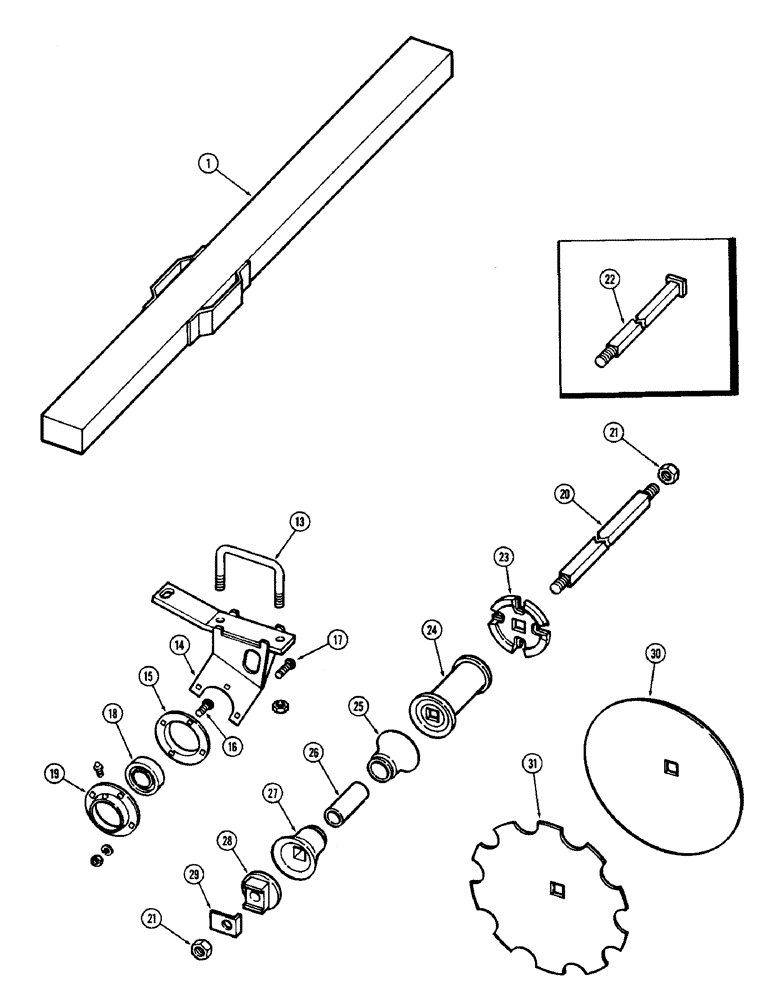

Запчасти Case IH F21 (056) - FRONT RIGHT GANG, 9 INCH SPACING, F21, F21-9-147, 162 & 180
№
Артикул
Название
Примечание
Количество
1
T55217
FRAME - gang (9-147)
1шт.
1
T55219
FRAME - gang (9-162)
1шт.
1
T53766
FRAME - gang (9-180)
1шт.
13
T53186
U-BOLT
U BOLT (9-147, 9-162)
3шт.
T53186
U-BOLT
U BOLT (9-180)
4шт.
131-385
LOCK NUT,3/4"-10, GA
NUT - lock, 3/4" N.C. hex., Z.P. (9-147, 9-162)
6шт.
131-385
LOCK NUT,3/4"-10, GA
NUT - lock, 3/4" N.C. hex., Z.P. (9-180)
8шт.
14
T53700
RISER
- bearing, R.H. (9-147, 9-162)
3шт.
T53700
RISER
- bearing, R.H. (9-180)
4шт.
15
T53705
FLANGE
TTE (9-147, 9-162)
3шт.
T53705
FLANGE
TTE (9-180)
4шт.
16
111-401
CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2
BOLT - 7/16" x 1" cge., Z.P. (9-147, 9-162)
3шт.
111-401
CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2
BOLT - 7/16" x 1" cge., Z.P. (9-180)
4шт.
17
111-410
CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5
BOLT - 7/16" x 1-1/2" cge., Z.P. (9-147, 9-162)
9шт.
111-410
CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5
BOLT - 7/16" x 1-1/2" cge., Z.P. (9-180)
12шт.
192-22
LOCK WASHER,7/16"
WASHER, LOCK, (9-147, 9-162) 7/16"
12шт.
192-22
LOCK WASHER,7/16"
WASHER, LOCK, (9-180) 7/16"
16шт.
129-104
NUT,7/16"-14, G5
(9-147, 9-162) 7/16"-14, G5
12шт.
129-104
NUT,7/16"-14, G5
(9-180) 7/16"-14, G5
16шт.
18
T53781
BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W
BEARING - (9-147, 9-162)
3шт.
18
T53781
BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W
BEARING - (9-180)
4шт.
19
T53704
FLANGE
TTE - (9-147, 9-162)
3шт.
T53704
FLANGE
TTE - (9-180)
4шт.
20
T55098
BOLT
BOLT - gang, 1-1/8" x 69-1/16" (Eff. ser. #1, 606, 100 & up) (9-147)
1шт.
20
T55129
BOLT
- gang, 1-1/8" x 78-1/4" (Eff. ser. #1, 606, 100 & up) (9-162)
1шт.
20
T55097
BOLT
BOLT - gang, 1-1/8" x 32-1/4" (Eff. ser. #1, 606, 100 & up) (9-180)
1шт.
20
T55100
BOLT
BOLT - gang, 1-1/8" x 50-7/8" (Eff. ser. #1, 606, 100 & up) (9-180)
1шт.
21
25-1618
NUT,1 1/8"-7, G5, Hvy
- 1-1/8" N.C. hex. (9-147, 9-162)
1шт.
25-1618
NUT,1 1/8"-7, G5, Hvy
- 1-1/8" N.C. hex. (9-180)
2шт.
21
25-1618
NUT,1 1/8"-7, G5, Hvy
- 1-1/8" N.C. hex. (Eff. ser. #1, 606, 100 & up) (9-147, 9-162)
2шт.
25-1618
NUT,1 1/8"-7, G5, Hvy
- 1-1/8" N.C. hex. (Eff. ser. #1, 606, 100 & up) (9-180)
4шт.
22
T53753
BOLT
- gang, 1-1/8" x 68-/16" (9-147)
1шт.
22
T53760
BOLT
- gang, 1-1/8" x 77-1/4" (9-162)
1шт.
22
T53769
BOLT
- gang, 1-1/8" x 31-1/4" (9-180)
1шт.
22
T53768
BOLT
- gang, 1-1/8" x 49-7/8" (9-180)
1шт.
23
T53703
WASHER
- bumper (Order T55045) (9-147, 9-162)
1шт.
T53703
WASHER
- bumper (Order T55045) (9-180)
2шт.
23
T55045
WASHER
- bumper (Eff. ser. #5333 & up) (9-147, 9-162)
1шт.
T55045
WASHER
- bumper (Eff. ser. #5333 & up) (9-180)
2шт.
24
T53997
SPOOL
- spacer (Rep. T53756 inter) (9-147, 9-180)
4шт.
T53997
SPOOL
- spacer (Rep. T53756 inter) (9-162)
5шт.
25
T53754
BELL HOUSING
END BELL - small (9-147, 9-162)
3шт.
T53754
BELL HOUSING
END BELL - small (9-180)
4шт.
26
T53707
SLEEVE
- insert (9-147, 9-162)
3шт.
T53707
SLEEVE
- insert (9-180)
4шт.
27
T53755
BELL HOUSING
END BELL - large (9-147, 9-162)
3шт.
T53755
BELL HOUSING
END BELL - large (9-180)
4шт.
28
T53710
WASHER
- end (9-147, 9-162)
1шт.
T53710
WASHER
- end (9-180)
2шт.
29
T53711
PLATE
- lock (9-147, 9-162)
1шт.
T53711
PLATE
- lock (9-180)
2шт.
30
H2627S
DISC
BLADE - disk, 20" x 7 ga. solid (9-147)
8шт.
H2627S
DISC
BLADE - disk, 20" x 7 ga. solid (9-162, 9-180)
9шт.
30
T53740
BLADE
- disk, 20" x 9 ga. solid (9-162)
8шт.
T53740
BLADE
- disk, 20" x 9 ga. solid (9-162, 9-180)
9шт.
30
T53771
BLADE
- disk, 22" x 7 ga. solid (9-147)
8шт.
T53771
BLADE
- disk, 22" x 7 ga. solid (9-162, 9-180)
9шт.
30
T19858
DISC
BLADE - disk, 18" x 9 ga. solid (9-180)
1шт.
31
H5857S
DISC
BLADE - disk, 20" x 7 ga. notched (9-147)
8шт.
H5857S
DISC
BLADE - disk, 20" x 7 ga. notched (9-162, 9-180)
9шт.
31
H2594S
DISC
BLADE - disk, 22" x 7 ga. notched (9-147)
8шт.
H2594S
DISC
BLADE - disk, 22" x 7 ga. notched (9-162, 9-180)
9шт.
31
H2250S
DISC
BLADE - disk, 18" x 10 ga. notched (9-180)
1шт.
Выбрано товаров: 63
