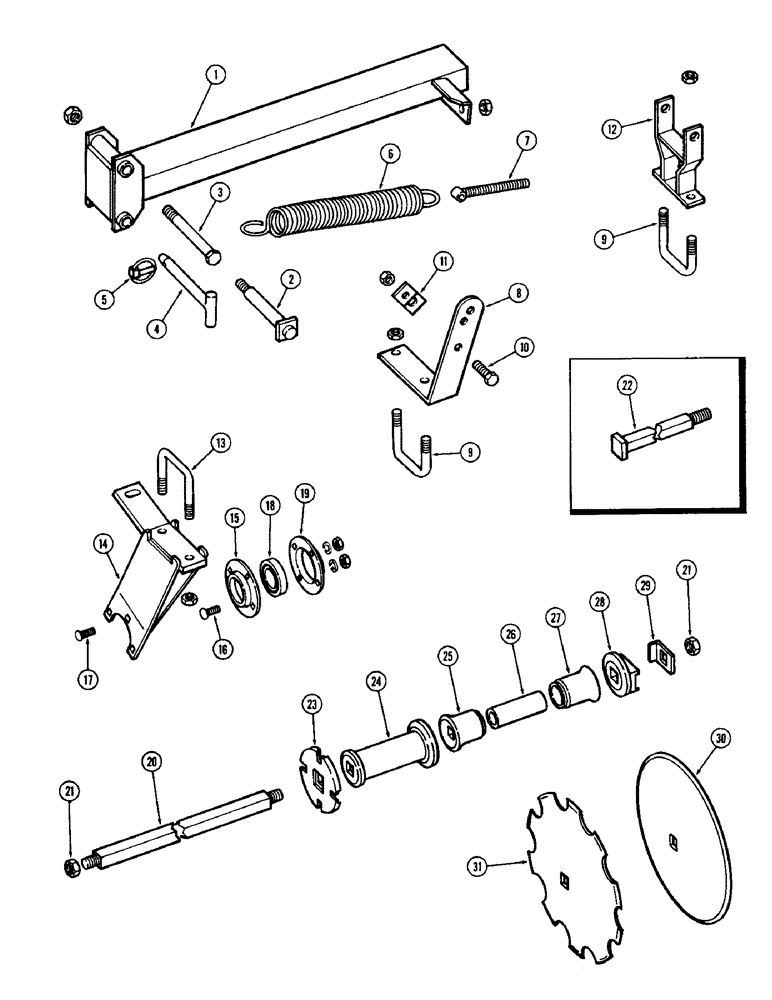

Запчасти Case IH F21 (044) - 5 BLADE WING GANG, FRONT LEFT, 7 INCH SPACING, F21, F21-7-214 & 228

1

T53731

FRAME - gang

1шт.

2

T54676

PIN

- pivot (Eff. ser. #2126 & up)

1шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

1шт.

3

113-911

BOLT,Hex, 1" - 8 x 10", Gr 5

- 1" x 10" N.C. hex., Z.P.

1шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1" N.C. hex., Z.P.

1шт.

4

T53728

PIN

- wing hold

1шт.

5

A30338

PIN

- klik

1шт.

6

T53725

SPRING - lift, 22"

1шт.

7

T53727

ROD - spring adjusting

1шт.

129-108

NUT,3/4"-10, G5

1шт.

8

T53732

ANCHOR - spring, L.H.

1шт.

9

T53186

U-BOLT

U BOLT

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

4шт.

10

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

1шт.

11

T53723

BRACE

- anchor

1шт.

11

T54675

BRACE

- anchor (Eff. ser. #2126 & up)

1шт.

12

T53722

REST - gang

1шт.

13

T53186

U-BOLT

U BOLT

2шт.

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

4шт.

14

T53713

RISER

- bearing, L.H.

2шт.

15

T53705

FLANGE

TTE

2шт.

16

111-401

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G2

BOLT - 7/16" x 1" cge., Z.P.

2шт.

17

111-410

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/2", G5

BOLT - 7/16" x 1-1/2" cge., Z.P.

6шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

129-104

NUT,7/16"-14, G5

8шт.

18

T53781

BALL BEARING,49.21mm ID x 90mm OD x 30.16mm W

BEARING

2шт.

19

T53704

FLANGE

TTE

2шт.

20

T55092

BOLT

BOLT - gang, 1-1/8" x 33-3/4" (Eff. ser. #1, 606, 900 & up)

1шт.

21

25-1618

NUT,1 1/8"-7, G5, Hvy

- 1-1/8" N.C. hex.

1шт.

21

25-1618

NUT,1 1/8"-7, G5, Hvy

- 1-1/8" N.C. hex. (Eff. ser. #1, 606, 900 & up)

2шт.

22

T53729

BOLT

- gang, 1-1/8" x 32-3/4"

1шт.

23

T53703

WASHER

- bumper (Order T55045)

1шт.

23

T55045

WASHER

- bumper (Eff. ser. #2251 & up)

1шт.

24

T53996

SPOOL

- spacer (Rep. T53709 inter)

2шт.

25

T53706

BELL HOUSING

END BELL - small

2шт.

26

T53707

SLEEVE

- insert

2шт.

27

T53708

BELL HOUSING

END BELL - large

2шт.

28

T53710

WASHER

- end

1шт.

29

T53711

PLATE

- lock

1шт.

30

H2627S

DISC

BLADE - disk, 20" x 7 ga. solid

4шт.

30

T53740

BLADE

- disk, 20" x 9 ga. solid

4шт.

30

T19858

DISC

BLADE - disk, 18" x 9 ga. solid

1шт.

31

H5857S

DISC

BLADE - disk, 20" x 7 ga. notched

4шт.

31

H2250S

DISC

BLADE - disk, 18" x 10 ga. notched

1шт.
