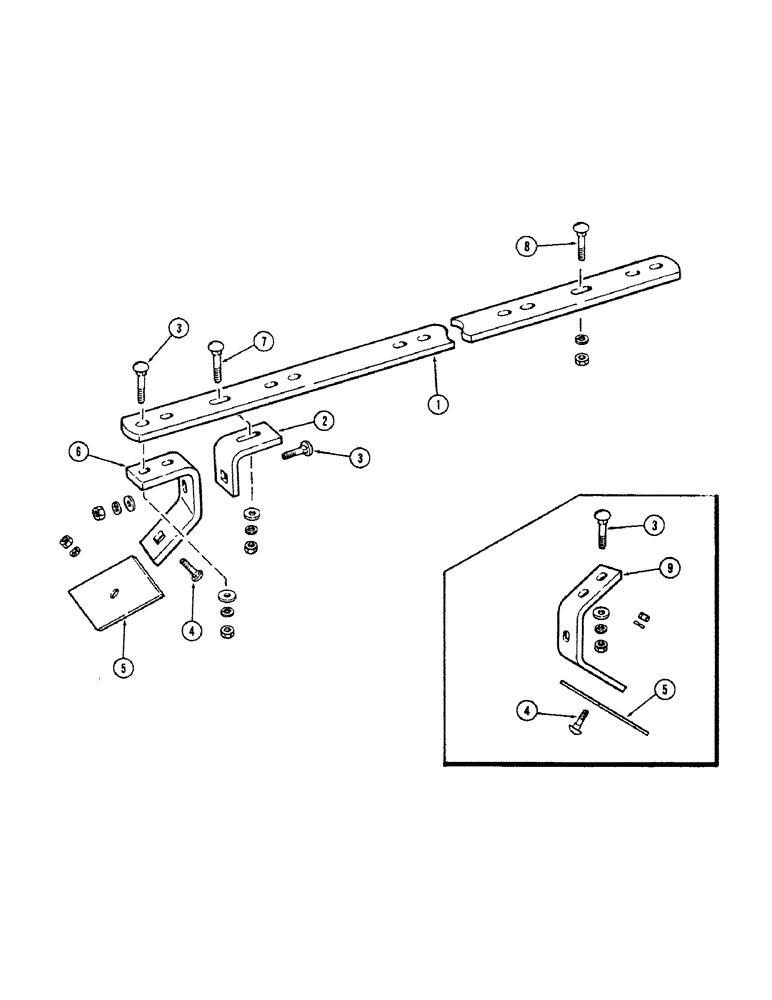

Запчасти Case IH D-SERIES (14) - DISK SCRAPERS, CONICAL BLADES, D11, D13, D15

1

T50426

BAR - scraper (D11)

4шт.

1

T50438

BAR - scraper (D13)

4шт.

1

T50439

BAR - scraper (D15)

4шт.

2

T51504

BRACE - scraper support

4шт.

3

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/2" cge. (D11)

44шт.

3

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" cge. (D13)

52шт.

3

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" cge. (D15)

60шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga. (D11)

44шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga. (D13)

52шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga. (D15)

60шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D11) 5/8"

44шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D13) 5/8"

52шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D15) 5/8"

60шт.

25-1010

NUT,5/8"-11, G5

(D11) 5/8"-11, G5

44шт.

25-1010

NUT,5/8"-11, G5

(D13) 5/8"-11, G5

52шт.

25-1010

NUT,5/8"-11, G5

(D15) 5/8"-11, G5

60шт.

4

11-1024

BOLT - 5/8" x 1-1/2" cge. (D11)

20шт.

4

11-1024

BOLT - 5/8" x 1-1/2" cge. (D13)

24шт.

4

11-1024

BOLT - 5/8" x 1-1/2" cge. (D15)

28шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D11) 5/8"

20шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D13) 5/8"

24шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D15) 5/8"

28шт.

25-1010

NUT,5/8"-11, G5

(D11) 5/8"-11, G5

20шт.

25-1010

NUT,5/8"-11, G5

(D13) 5/8"-11, G5

24шт.

25-1010

NUT,5/8"-11, G5

(D15) 5/8"-11, G5

28шт.

5

T50427

BLADE - scraper (D11)

20шт.

5

T50427

BLADE - scraper (D13)

24шт.

5

T50427

BLADE - scraper (D15)

28шт.

6

T50475

SUPPORT - R.H. (D11)

10шт.

6

T50475

SUPPORT - R.H. (D13)

12шт.

6

T50475

SUPPORT - R.H. (D15)

14шт.

7

11-1044

BOLT - 5/8" x 2-3/4" cge.

4шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

8

11-1032

X,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" cge. (D11)

4шт.

8

11-1032

X,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" cge. (D13, D15)

8шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga. (D11)

4шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga. (D13, D15)

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D11) 5/8"

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (D13, D15) 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

(D11) 5/8"-11, G5

4шт.

25-1010

NUT,5/8"-11, G5

(D13, D15) 5/8"-11, G5

8шт.

9

T50476

SUPPORT - L.H. (D11)

10шт.

9

T50476

SUPPORT - L.H. (D13)

12шт.

9

T50476

SUPPORT - L.H. (D15)

14шт.
