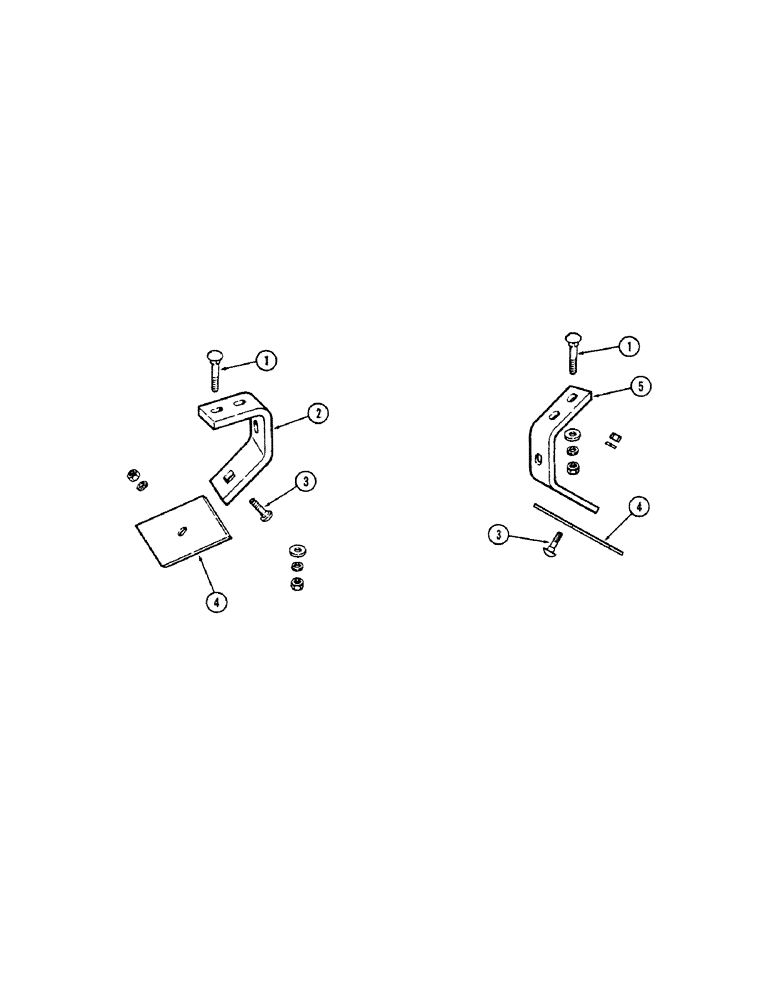

Запчасти Case IH D-SERIES (14[1]) - END DISK SCRAPERS, CONICAL BLADES

1

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" cge.

8шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga.

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

8шт.

2

T50475

SUPPORT - R.H.

2шт.

3

11-1024

BOLT - 5/8" x 1-1/2" cge.

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

4

T50427

BLADE - scrapers

4шт.

5

T50476

SUPPORT - L.H.

2шт.
