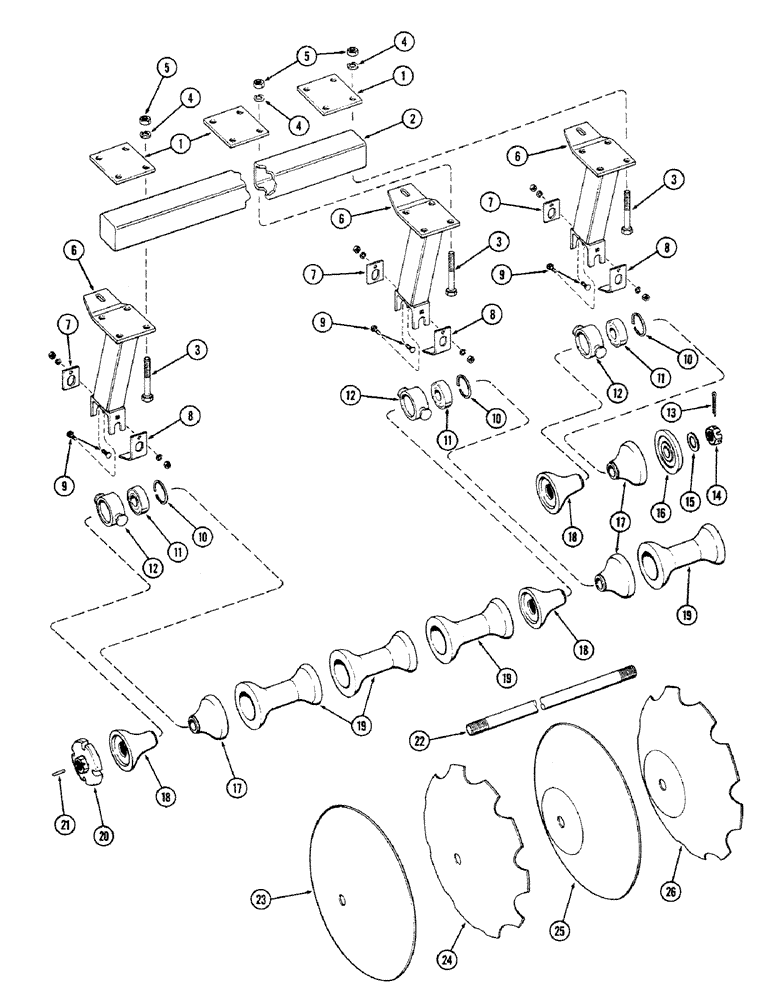

Запчасти Case IH D-SERIES (12) - REAR GANG, D11, D13, D15
№
Артикул
Название
Примечание
Количество
1
T50428
PLATE - standard (D11)
4шт.
1
T50428
PLATE - standard (D13, D15)
6шт.
2
T50422
TUBE - rear gang (D11)
2шт.
2
T50435
TUBE - rear gang (D13)
2шт.
2
T50437
TUBE - rear gang (D15)
2шт.
3
13-1296
BOLT,Hex, 3/4" - 10 x 6", Gr 5
(D11) Hex, 3/4"-10 x 6", G5
16шт.
3
13-1296
BOLT,Hex, 3/4" - 10 x 6", Gr 5
(D13, D15) Hex, 3/4"-10 x 6", G5
24шт.
4
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (D11) 3/4"
16шт.
4
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (D13, D15) 3/4"
24шт.
5
25-1012
NUT,3/4"-10, G5
(D11) 3/4"-10, G5
16шт.
5
25-1012
NUT,3/4"-10, G5
(D13, D15) 3/4"-10, G5
24шт.
6
T50464
STANDARD - R.H. (D11)
2шт.
6
T50464
STANDARD - R.H. (D13, D15)
3шт.
6
T50465
STANDARD - L.H. (D11)
2шт.
6
T50465
STANDARD - L.H. (D13, D15)
3шт.
7
K3006
LOCK
- bearing trunnion, rear (D11)
4шт.
7
K3006
LOCK
- bearing trunnion, rear (D13, D15)
6шт.
8
T50429
GUARD
- bearing trunnion, front (D11)
4шт.
8
T50429
GUARD
- bearing trunnion, front (D13, D15)
6шт.
9
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2
BOLT, CARRIAGE, (D11) Short NK, 3/8"-16 x 1", G2
8шт.
9
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2
BOLT, CARRIAGE, (D13, D15) Short NK, 3/8"-16 x 1", G2
12шт.
92-6
LOCK WASHER,3/8"
(D11) 3/8"
8шт.
92-6
LOCK WASHER,3/8"
(D13, D15) 3/8"
12шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex. (D11)
8шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex. (D13, D15)
12шт.
10
G46143
RING
- retaining (D11)
4шт.
10
G46143
RING
- retaining (D13, D15)
6шт.
11
T50363
BEARING, BALL,38.61mm ID x 90mm OD x 30.18mm W
BEARING - ball (D11)
4шт.
11
T50363
BEARING, BALL,38.61mm ID x 90mm OD x 30.18mm W
BEARING - ball (D13, D15)
6шт.
12
T2198
HOUSING
- bearing (D11)
4шт.
12
T2198
HOUSING
- bearing (D13, D15)
6шт.
13
132-159
COTTER PIN,1/4" x 3"
Pin, Split (Cotter), 1/4" x 3"
2шт.
14
25-1224
SLOTTED NUT,1 1/2"-6, G5
NUT - 1-1/2" N.C. hex. slotted
2шт.
15
O2827HT
WASHER
- takeup
1шт.
16
T2200
WASHER
- end, concave
2шт.
17
T2202
SPOOL
- half, concave (D11)
4шт.
17
T2202
SPOOL
- half, concave (D13, D15)
6шт.
18
T2203
SPOOL
- half, convex (D11)
4шт.
18
T2203
SPOOL
- half, convex (D13, D15)
6шт.
19
T2201
SPOOL
- full (D11, D13)
6шт.
19
T2201
SPOOL
- full (D15)
8шт.
20
T2199
WASHER
- end, convex
2шт.
21
141-703
GROOVED PIN,5/16" x 2 1/4", Type E, Hardened
Pin. Grooved, 5/16" x 2 1/4", Type E, Hardened
2шт.
22
T50368
BOLT - gang (D11)
2шт.
22
T50369
BOLT
- gang (D13)
2шт.
22
T50370
BOLT
- gand (D15)
2шт.
23
T50457
DISC
DISK - solid, spherical, 24" x .203 (D11)
12шт.
23
T50457
DISC
DISK - solid, spherical, 24" x .203 (D13)
14шт.
23
T50457
DISC
DISK - solid, spherical, 24" x .203 (D15)
16шт.
23
T50453
DISK - solid, spherical, 24" x .250 (D11)
12шт.
23
T50453
DISK - solid, spherical, 24 x .250 (D13)
14шт.
23
T50453
DISK - solid, spherical, 24" x .250 (D15)
16шт.
23
T50455
DISK - solid, spherical, 26" x .250 (D11)
12шт.
23
T50455
DISK - solid, spherical, 26" x .250 (D13)
14шт.
23
T50455
DISK - solid, spherical, 26" x .250 (D15)
16шт.
24
NLS
NO LONGER SERVICED
DISK - notched, spherical, 24" x .203 (D11)
12шт.
24
T50456
HEAD (CYLINDER)
DISK - notched, spherical, 24" x .203 (D13)
14шт.
24
NLS
NO LONGER SERVICED
DISK - notched, spherical, 24" x .203 (D15)
16шт.
24
T50452
DISK - notched, spherical, 24" x .250 (D11)
12шт.
24
T50452
DISK - notched, spherical, 24" x .250 (D13)
14шт.
24
T50452
DISK - notched, spherical, 24" x .250 (D15)
16шт.
24
T50454
DISK - notched, spherical, 26" x .250 (D11)
12шт.
24
T50454
DISK - notched, spherical, 26" x .250 (D13)
14шт.
24
T50454
DISK - notched, spherical, 26" x .250 (D15)
16шт.
25
T50377
DISC
DISK - solid, conical, 24" x .203 (D11)
12шт.
25
T50377
DISC
DISK - solid, conical, 24" x .203 (D13)
14шт.
25
T50377
DISC
DISK - solid, conical, 24" x .203 (D15)
16шт.
25
T50360
DISK - solid, conical, 24" x .250 (D11)
12шт.
25
T50360
DISK - solid, conical, 24" x .250 (D13)
14шт.
25
T50360
DISK - solid, conical, 24" x .250 (D15)
16шт.
25
T50359
DISK - solid, conical, 26" x .250 (D11)
12шт.
25
T50359
DISK - solid, conical, 26" x .250 (D13)
14шт.
25
T50359
DISK - solid, conical, 26" x .250 (D15)
16шт.
26
T50361
DISK - notched, conical, 24" x .203 (D11)
12шт.
26
T50361
DISK - notched, conical, 24" x .203 (D13)
14шт.
26
T50361
DISK - notched, conical, 24" x .203 (D15)
16шт.
26
T50362
DISC
DISK - notched, conical, 24" x .250 (D11)
12шт.
26
T50362
DISC
DISK - notched, conical, 24" x .250 (D13)
14шт.
26
T50362
DISC
DISK - notched, conical, 24" x .250 (D15)
16шт.
26
T50364
LARGE PIN
DISK - notched, conical, 26" x .250 (D11)
12шт.
26
T50364
LARGE PIN
DISK - notched, conical, 26" x .250 (D13)
14шт.
26
T50364
LARGE PIN
DISK - notched, conical, 26" x .250 (D15)
16шт.
Выбрано товаров: 82
