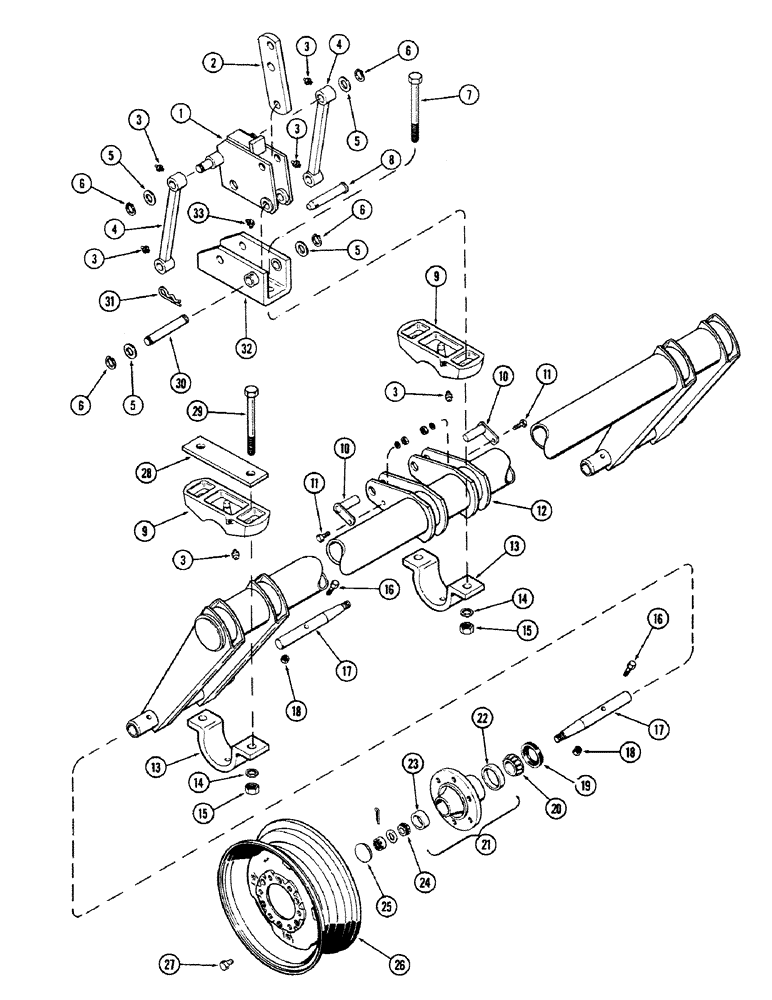

Запчасти Case IH D-SERIES (08) - TRANSPORT AXLE
№
Артикул
Название
Примечание
Количество
1
T50443
BRACKET - rocker lift
1шт.
2
T50446
LINK - pivot anchor
1шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8"
7шт.
4
T50409
LINK - raising
2шт.
5
195-2105
WASHER,1 1/16" x 1 3/4" x .065"
- 1-3/4" x 1-1/16" x 16 ga.
4шт.
6
B18208
SNAP RING,#100, Ext
4шт.
7
15-14136
BOLT - 7/8" x 8-1/2" N.C. hex.
2шт.
8
T31033
PIN - transport
1шт.
9
T2206
BEARING - axle
3шт.
10
T50449
PIN - raising link anchor
2шт.
11
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
92-6
LOCK WASHER,3/8"
2шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
12
T50367
AXLE - transport
1шт.
13
T50379
STRAP - axle bearing
3шт.
14
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
6шт.
15
25-1014
NUT,7/8"-9, G5
6шт.
16
13-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5
Hex, 1/2"-13 x 2 3/4", G5
4шт.
17
T38994
SPINDLE
- axle
4шт.
195-45
WASHER,3/4"
4шт.
25-1312
SLOTTED NUT,3/4"-16, G5
NUT - 3/4" N.F. hex. slotted
4шт.
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), 1/8" x 1 1/8"
4шт.
18
131-354
LOCK NUT,1/2"-13, GA
NUT - lock, 1/2" N.C. hex.
4шт.
19
MTA2043S
OIL SEAL
SEAL - grease
4шт.
20
T12256
TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"
CONE - bearing, inner
4шт.
21
T28066
HUB
- with cups
4шт.
22
A29977
BEARING CUP
CUP - bearing, inner
1шт.
23
A30318
BEARING, CUP
CUP - bearing, outer
1шт.
24
A30611
ROLLER BEARING
CONE - bearing, outer
4шт.
25
G47038
CAP
- hub
4шт.
26
T25842
RIM
WHEEL - 14 inch
4шт.
26
V13989
GEAR
WHEEL - 15 inch
4шт.
26
F88910
WHEEL - 15 inch (for high-flotation tire)
4шт.
27
A30064
BOLT
- wheel
24шт.
28
T50462
STRAP - axle bearing, outer
2шт.
29
15-14128
BOLT (MACHINE),Hex, 7/8" - 9 x 8", Gr 5
BOLT - 7/8" x 8" N.C. hex.
4шт.
30
T50419
PIN - rocker bracket pivot, 1" x 6-1/4"
1шт.
31
T31049
COTTER - hairpin
1шт.
32
T50410
- rocker lift bracket
1шт.
33
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING - grease, 1/4"-28
2шт.
Выбрано товаров: 40
