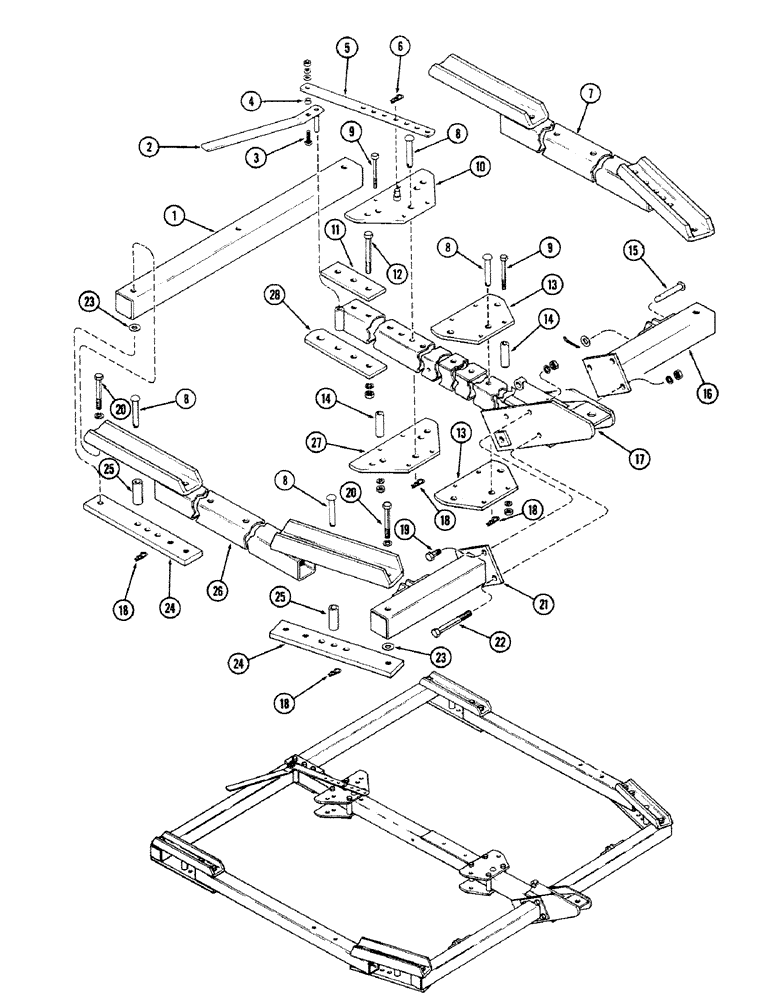

Запчасти Case IH D-SERIES (06) - MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
T51829
TUBE - frame, rear
1шт.
2
T50474
LEVER - gang positioning
1шт.
3
11-624
BOLT
- 3/8" x 1-1/2" cge.
1шт.
195-2036
WASHER,13/32" x 2" x .109"
- 1-1/4" x 7/16" x 10 ga.
1шт.
92-6
LOCK WASHER,3/8"
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
4
T50470
BUSHING - connecting link
1шт.
5
T50471
LINK - lever connecting
1шт.
6
T11538
COTTER - hairpin
1шт.
7
T50375
TUBE - frame, side, L.H.
1шт.
8
T50418
RIVET - drilled, gang bars
10шт.
9
13-10104
BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5
- 5/8" x 6-1/2" N.C. hex.
8шт.
25-1010
NUT,5/8"-11, G5
8шт.
10
T50403
PLATE - rear gang control bracket, upper
1шт.
11
T50380
STRAP - center tie, rear upper
1шт.
12
13-14104
BOLT (MACHINE)
BOLT - 7/8" x 6-1/2" N.C. hex.
3шт.
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
3шт.
25-1014
NUT,7/8"-9, G5
3шт.
13
T50402
PLATE - front gang control bracket
2шт.
14
T50420
SPACER - gang control bracket
8шт.
15
H3748S
PIN - hitch brace
2шт.
95-16
WASHER,1 1/16" x 2 1/2" x .164"
- 2-1/2" x 1-1/16" x 8 ga.
2шт.
132-152
PIN
- cotter, 1/4" x 1-3/4"
2шт.
16
T50391
TUBE - frame, front, L.H. 42.6" L
1шт.
17
T50400
TUBE - frame, center
1шт.
18
T20588
PIN, SPLIT (COTTER)
COTTER - hairpin
10шт.
19
13-1432
BOLT,Hex, 7/8" - 9 x 2", Gr 5
2шт.
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
2шт.
25-1014
NUT,7/8"-9, G5
2шт.
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
12шт.
21
T50390
TUBE - frame, front, R.H. 42.6" L
1шт.
22
15-14112
BOLT
- 7/8" x 7" N.C. hex.
2шт.
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
2шт.
25-1014
NUT,7/8"-9, G5
2шт.
23
195-2126
WASHER - 3-1/2" x 1" x 13 ga. (Frame Spacers)
12шт.
24
T50376
BRACKET - corner tie, lower
4шт.
25
T50417
TUBE - gang spacer 0.938" ID x 1.5" OD x 4" L
4шт.
26
T50374
TUBE - frame, side, R.H.
1шт.
27
T50401
PLATE - rear gang control bracket, lower
1шт.
28
T50463
STRAP - hitch, center tie, rear lower
1шт.
Выбрано товаров: 42
