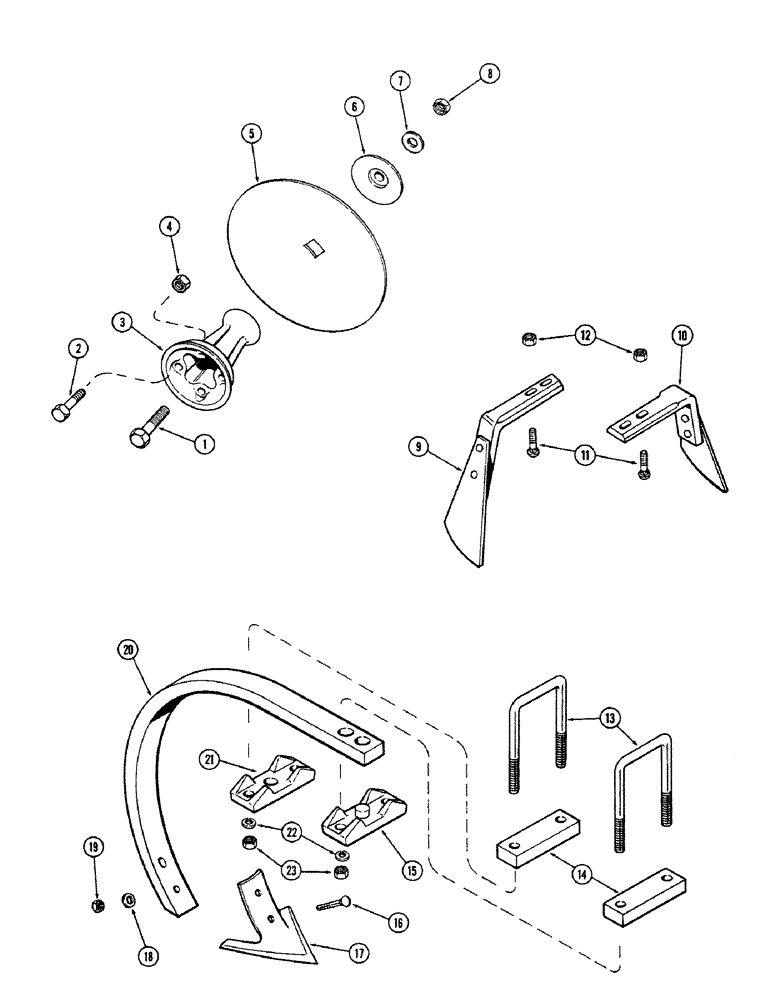

Запчасти Case IH D-SERIES (18) - FURROW FILLER

1

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

2

111-601

CARRIAGE BOLT,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" cge., Z.P.

8шт.

3

T2204

SPOOL - extension

2шт.

4

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

8шт.

5

T51603

DISK HARROW

DISK - solid, 20" x 3/16"

2шт.

5

T51602

BLADE

DISK - solid, 22" x 3/16"

2шт.

6

T2205

WASHER - end

2шт.

7

195-546

WASHER - 1-3/4" x 13/16" x 10 ga., Z.P.

2шт.

8

131-385

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

9

T50441

SCRAPER ASSEMBLY - R.H., furrow filler

1шт.

10

T50442

SCRAPER ASSEMBLY - L.H., furrow filler

1шт.

11

111-613

BOLT,Short NK, 5/8"-11 x 2 3/4", G2

- 5/8" x 2-3/4" cge., Z.P., scrapers - furrow filler

4шт.

12

129-107

NUT,5/8"-11, G5

Scrapers - furrow filler 5/8"-11, G5

4шт.

13

T50385

"U" BOLT, center tooth atachment

2шт.

14

T50381

SPACER - center tooth attachment

2шт.

15

T50384

CLAMP - front, center tooth atachment

1шт.

16

118-213

X

BOLT - plow, 7/16" x 2-1/4" P3 gr. 5 w/rep. hd., center tooth atachment

2шт.

17

B12452

SHOVEL

SWEEP - full, 8" heavy duty, center tooth atachment

1шт.

18

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4 x 1/2" x 10 ga., center tooth atachment

2шт.

19

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex., center tooth atachment

2шт.

20

T35133

SHANK

- center tooth attachment

1шт.

21

T50383

CLAMP - rear, center tooth atachment

1шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Center tooth attachment 5/8"

4шт.

23

25-1010

NUT,5/8"-11, G5

Center tooth attachment 5/8"-11, G5

4шт.
