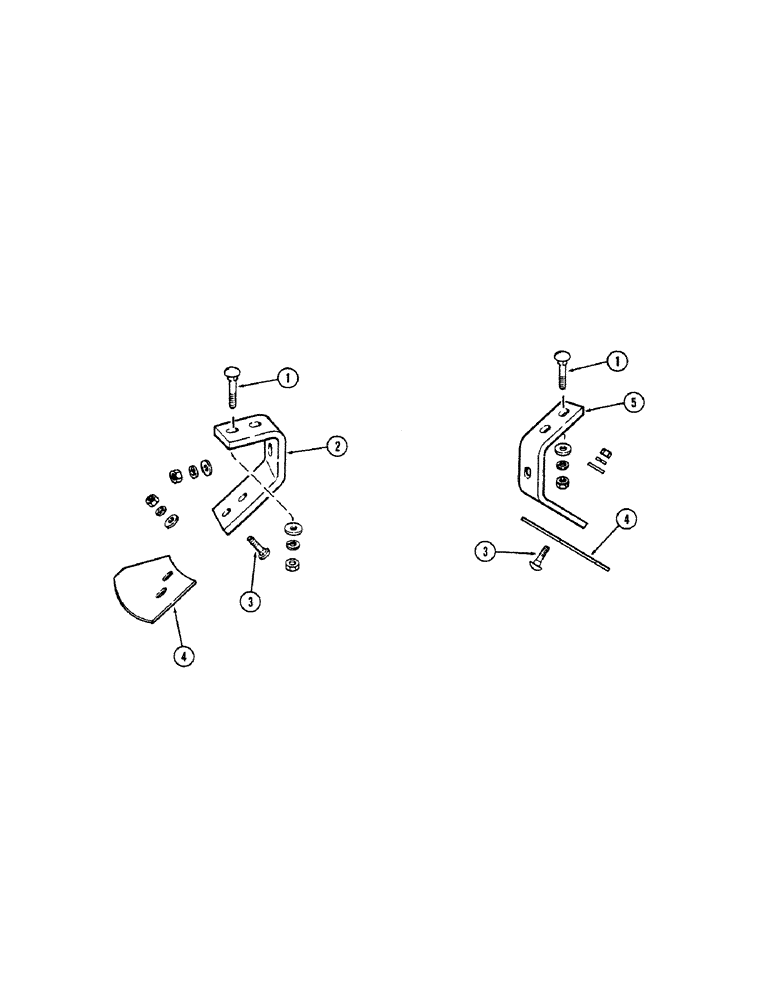

Запчасти Case IH D-SERIES (16[1]) - END DISK SCRAPERS, SPHERICAL BLADES

1

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" cge.

8шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga.

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

1шт.

2

T50459

SUPPORT - R.H.

2шт.

3

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

8шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga.

8шт.

92-6

LOCK WASHER,3/8"

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

4

T50461

BLADE - scraper

4шт.

5

T50460

SUPPORT - L.H.

2шт.
