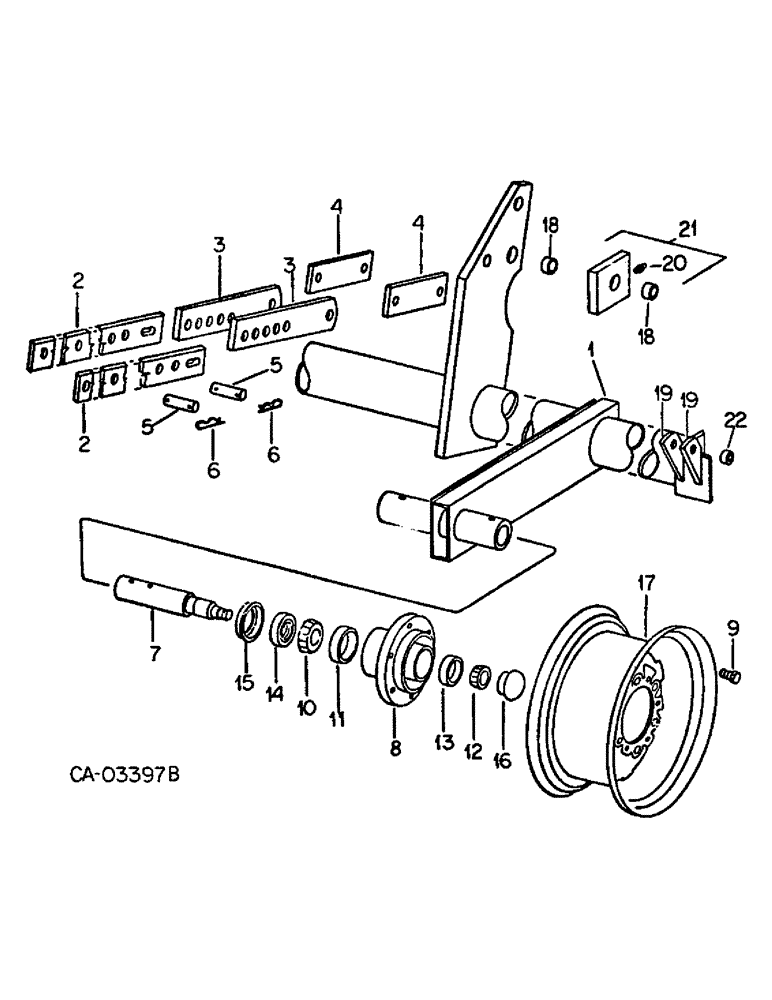

Запчасти Case IH 490 (AG-08) - CENTER FRAME WHEEL AXLE

1

56978C3

AXLE

ASSY, wheel, included ref. nos. 18, 19 & 21, units A through F, L through P

1шт.

1

57925C2

AXLE ASSY, wheel, included ref. nos. 18, 19 & 20, units G, H, J and K

1шт.

2

56985C1

SUPPORT

BAR, transport

2шт.

3

56986C1

BAR

adjusting

2шт.

4

56987C1

BAR

link

2шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

3шт.

9413973

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 znd hex. lock

3шт.

5

57106C1

PIN

7/8 x 3.7 in. long

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

6

517843R1

COTTER PIN

PIN, quick attach. cot.

2шт.

7

478375R1

SPINDLE

wheel

4шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga H. T

4шт.

69442D

NUT

3/4-16 slt hex.

4шт.

6120123

PIN, 1/8 x 1-1/4 C-Z cot.

4шт.

8

465493R2

HUB

wheel

4шт.

110146

FITTING, 1/4-28 str lub

4шт.

9

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel, replaces 351079R1

24шт.

10

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, inner cone

4шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

4шт.

12

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

4шт.

13

371883R1

BEARING CUP

Outer

4шт.

14

667599R91

OIL SEAL

oil

4шт.

15

667564R91

RING

wear sleeve

4шт.

16

663908R1

CAP

hub

4шт.

17

481344R91

WHEEL

DISC AND RIM ASSY, 14 x 8 KB, 4 used units A through P, recommend 9.5L, 14 IMP rib tire

1шт.

17

463034R1

RIM

WHEEL DISC AND RIM ASSY, 14 x 5 KB, 4 used units G, H, J and K

1шт.

17

481345R91

RIM

WHEEL DISC AND RIM ASSY, 14 x 6 KB, 4 used A through F, N & P

1шт.

17

614424R91

WHEEL ASSY.

WHEEL DISC AND RIM ASSY, 15 x 6 LB, 4 used A, B, G through K

1шт.

17

486101R2

RIM

WHEEL DISC AND RIM ASSY, 15 x 8 LB., 4 used A through F, L through P

1шт.

17

622192R91

WHEEL

DISC AND RIM ASSY, 15 x 5 KB, 4 used G through K

1шт.

387897R91

VALVE STEM

VALVE, tubeless tire

1шт.

18

112886C1

BUSHING

tension (Replaces 112886R1)

1шт.

19

129603C1

SUPPORT

BAR, pivot

4шт.

20

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type

1шт.

21

129607C91

PIVOT

ASSY, hyd cyl

1шт.

22

129593C1

BUSHING,22.23mm ID x 28.57mm OD x 18.29mm L

tension, for service use on wheel axle tube pivot bar with excessive pin hole wear

1шт.

63881C91

BEARING

KIT, wheel bearing, consists of (1) outer cone 371882R91, (1) outer cup 371883R1, (1) inner cone 618023R91, (1) inner cup 618024R1, (1) seal 667599R91, (1) ring 667564R1, (1) cap 663908R1

1шт.
