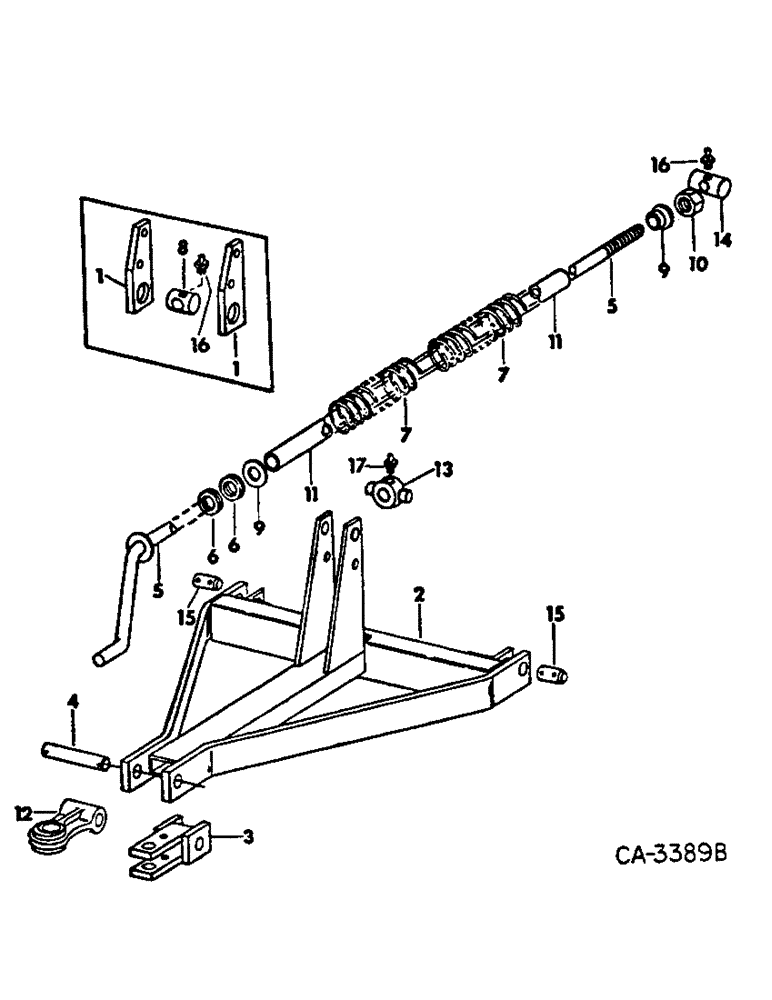

Запчасти Case IH 490 (AG-06) - HITCH

1

56920C1

BAR, hitch spring, machines w/serial no. 1111 and below

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

13шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

13шт.

280954

NUT,3/4"-10, G5

13шт.

2

56963C1

HITCH ASSY, includes ref 13, units A thorugh F w/serial no. 1111 and below and units G thorugh K

1шт.

2

77891C91

HITCH ASSY W/PRODUCT GRAPHIC, 64915C1, includes ref 13, units A through F w/serial no. 1112 and above, units L thorugh P

1шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

SCREW, 1/2-13 x 4-1/2 znd hex-hd mach

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z lock

1шт.

3

56976C3

CLEVIS

ASSY, hitch

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

1шт.

608595R1

NUT

5/8-11 znd hex. lock

1шт.

4

56970C1

PIN

clevis

1шт.

615274R1

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

1-9/32 x 2-1/2 x .105 flat

2шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

5

56971C1

CRANK

ASSY, units A through F w/serial no. 1111 and below and units G thorugh K

1шт.

5

60513C1

CRANK

ASSY, units A through F w/serial no. 1112 and above, units L thorugh P

1шт.

6

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

BEARING, units A through F w/serial no. 1111 and below and units G through K

1шт.

REF#6 THE I.D. IS 1.197 11/22/96

1шт.

6

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING, units A thorugh F w/serial no. 1112 and above, units L through P

1шт.

REF#6A THE I.D.IS 1.2560 11/22/96

1шт.

7

56973C1

SPRING

hitch

2шт.

8

468533R1

LINK

SWIVEL, crank, machines w/serial no. 1111 and below

1шт.

9

59970C1

BUSHING

spring plug, units A through F w/serial no. 1111 and below and units G through K

2шт.

9

60516C1

BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L

spring plug, units A through F w/serial no. 1112 and above, units L through P

2шт.

10

56974C2

NUT

1-1/8 hex. C-Z, ACME thds, units A through F w/serial no. 1111 and below and units G through K

2шт.

10

60149C2

LOCK NUT

1-1/4 hex. C-Z, ACME thds, units A through F w/serial no. 1112 and above, units L through P

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16-18 x 3/8 cup-pt set

2шт.

11

56975C1

PIPE

spring insert

1шт.

12

56892C3

TOW BAR

HITCH COUPLING, tongue type, for units A through F

1шт.

13

60134C1

TRUNNION

hitch screw, units A through F, L through P

1шт.

13

56969C1

TRUNNION

hitch screw, units G through K

1шт.

14

61326C1

PIVOT

SWIVEL, crank, units A, B and G through K with, machines w/serial no. 1112 and above

1шт.

REF#14 MEASURES 1 1/8" 11/22/96

1шт.

14

60147C1

LINK

SWIVEL, crank, units C through F w/serial no. 1112 and above, units L thorugh P

1шт.

REF#14A MEASURES 1 1/4" 11/22/96

1шт.

15

56960C1

PIN

2шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

16

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg angle lub, in crank swivel

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub, in Trunnion

1шт.
