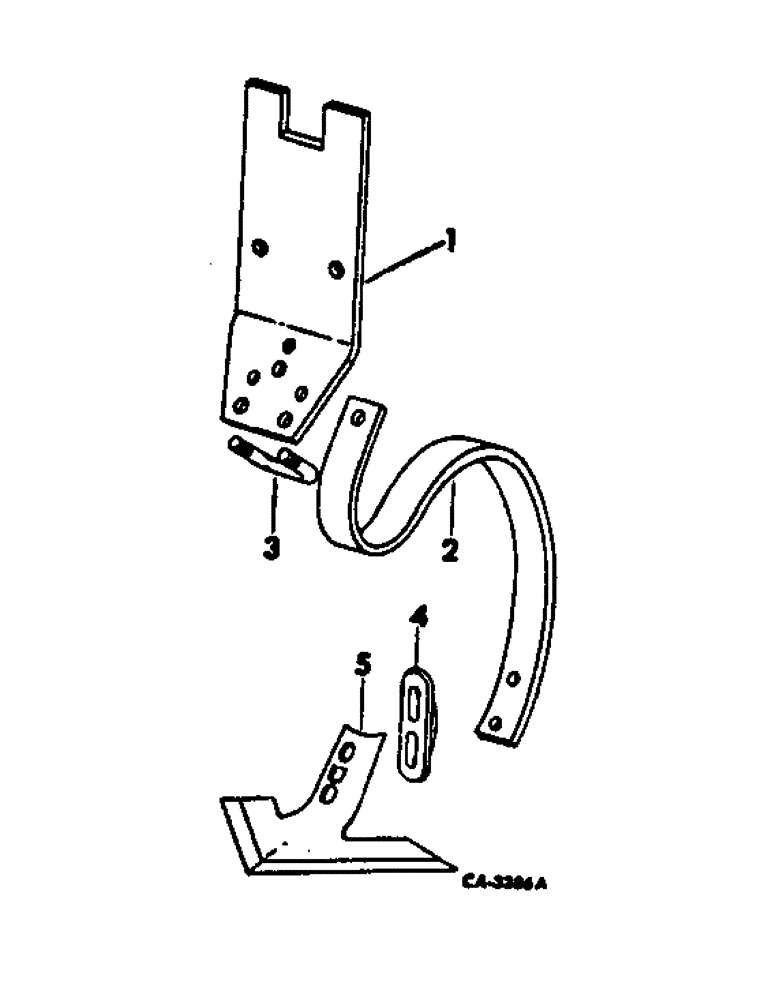

Запчасти Case IH 490 (AG-05) - CENTER TOOTH

1

56962C1

BRACKET

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

2

542564R1

TOOTH

center spring

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp hex. lock

1шт.

3

543439R1

BOLT (SPREADER),U, 1/2" - 13 x 1.60"

U-BOLT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

466868R1

WEDGE

sweep adj

1шт.

5

479005R2

SWEEP

6 in. universal

1шт.

25596BBX

BOLT

ASSY, sweep

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16-14 x 1-3/4 znd sq-nk crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

1шт.
