Запчасти Case IH 490 (AG-04) - CENTER FRAME, WING & BEARINGS, MACHINES BUILT 1976 & SINCE, MACHINES WITH 2 X 2" SCRAPER ANGLES

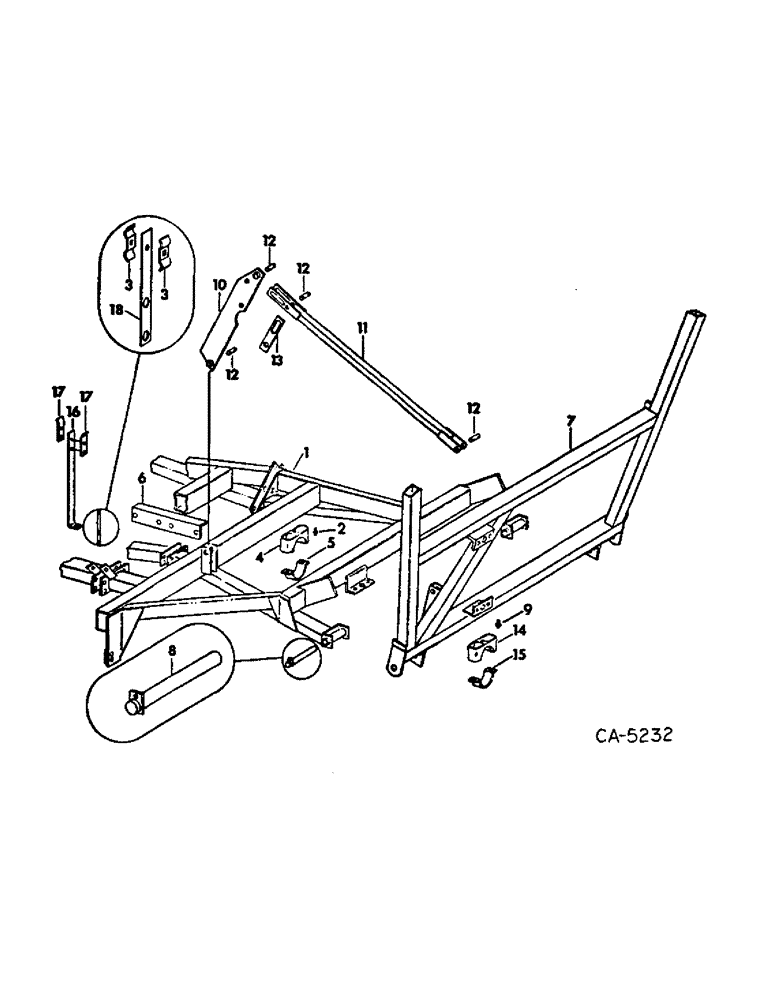

Схема запчастей Case IH 490 - (AG-04) - CENTER FRAME, WING & BEARINGS, MACHINES BUILT 1976 & SINCE, MACHINES WITH 2 X 2" SCRAPER ANGLES

Артикул

Название

Примечание

Количество

1

63747C92

FRAME W/PRODUCT GRAPHIC, 59051C1, center LH, units C through F, units L, M, N & P

1шт.

1

121209C4

FRAME ASSY, center RH, units C through F, units L, M, N & P

1шт.

1

59054C3

FRAME W/PRODUCT GRAPHIC, 59051C1, center LH, units G through K

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap, 13 for units C through F, L thorugh P, 11 for units G thorugh K

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

2

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 PTF str lub, 4 for units C through F, L through P

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/8-27 PTF str lub, 4 for units G through K

1шт.

3

515030R1

CLAMP

hose

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8-16 x 2 znd sq-nk crg

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

1шт.

4

56921C1

CAP

BEARING, wheel shaft, units C through F, L through P

4шт.

4

491921R1

CYLINDER END CAP

BEARING, wheel shaft, units G through K (Replaces 491921C1)

4шт.

5

56922C1

CAP

wheel bearing, units C through F, L through P

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

5

468518R1

CAP

wheel bearing, units G through K

1шт.

21074R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 2

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

6

56923C1

ANGLE, tooth

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

60315C5

FRAME

ASSY, LH wing 21 ft., units G, H, L & M

1шт.

7

60316C5

FRAME

ASSY, RH wings 21 ft., units G, H, L & M

1шт.

7

60313C5

FRAME ASSY, LH wings 24 ft., units J & K, serial no. 20219 & below for units N & P

1шт.

7

129731C1

FRAME ASSY, 24 ft LH, units N & P w/serial no. 20220 & above

1шт.

7

60314C5

FRAME ASSY, RH wing 24 ft., units J & K, serial no. 20219 & below for units N & P

1шт.

7

129732C1

FRAME ASSY, 24 ft RH, units N & P w/serial no. 20220 & above

1шт.

7

56940C5

FRAME ASSY, LH wing 28 ft., units C and D

1шт.

7

56941C5

FRAME ASSY, LH wing 28 ft., units C and D

1шт.

7

56947C5

FRAME ASSY, LH wing 32 ft., units E and F

1шт.

7

56948C5

FRAME ASSY, RH wing 32 ft., units E and F

1шт.

8

121153C1

PIN

ASSY, wing pivot

4шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

128274

LUBE NIPPLE,1/4"-28 NPT x 1.12" lg

FITTING, 1/4-28 NF str lub

4шт.

10

56952C1

PLATE ASSY, lift arm

2шт.

11

56956C1

TUBE

ASSY, lift link

2шт.

12

56960C1

PIN

connecting link

8шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

12шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 11 ga

4шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

16шт.

13

59052C1

BAR

lock out

1шт.

23283R1

PIN, 3/4 x 1-1/2 znd std-hd lockout 3/4" x 1 1/2"

1шт.

591107R1

COTTER PIN

q.a. cot.

1шт.

14

491921R1

CYLINDER END CAP

BEARING, wheel shaft, units C through F

4шт.

14

652815R1

SUPPORT

BEARING, axle top, units G thourgh K, L thorugh P

4шт.

15

468518R1

CAP

wheel shaft bearing, units C thorugh F

4шт.

21074R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 2

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

15

652816R1

CLAMP

BEARING, axle bottom, units G through K, L thorugh P

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

16

58643C1

SUPPORT

hose

1шт.

17

58644C1

HOLDER

BAR, hose

2шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 znd hex-hd mach

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 znd hex. lock

2шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4-10 x 1-1/4 znd hex.

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga flat

2шт.

18

56961C1

BAR

STRAP, hose

1шт.

175311C1

REFLECTOR

red, on rear end of center frame assy

2шт.

174732C1

REFLECTOR

amber, on left front end of center frame assy

1шт.

Выбрано товаров: 68
