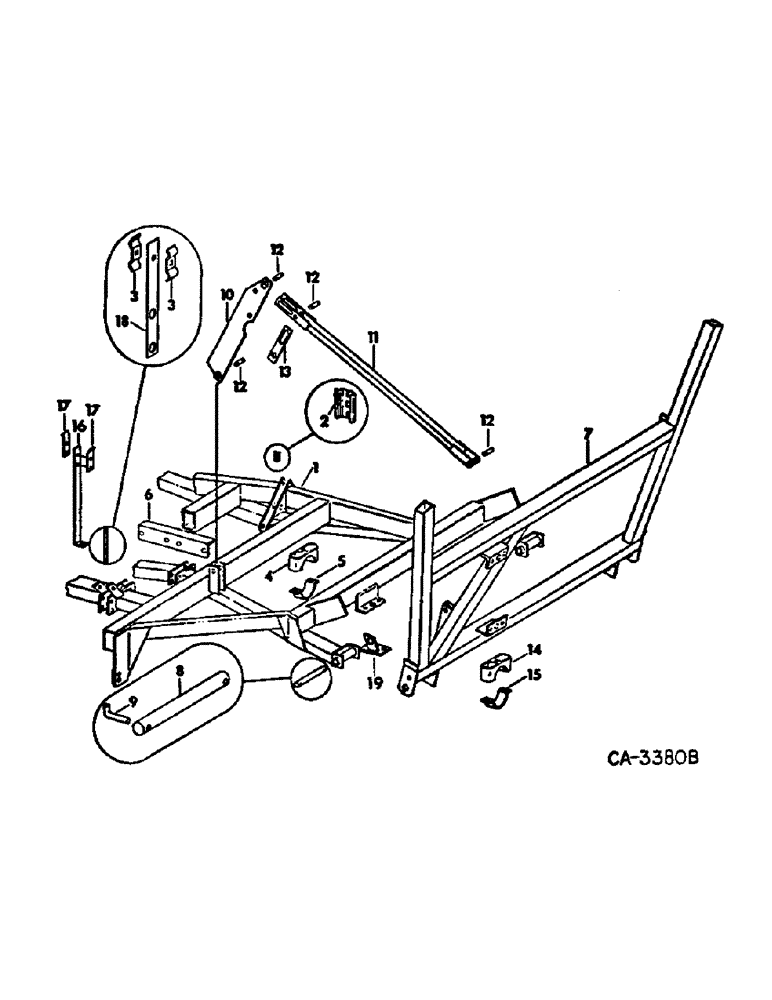

Запчасти Case IH 490 (AG-02) - CENTER FRAME, WING & BEARINGS, MACHINES BUILT 1973 TO 1975, MACHINES WITH 2 X 1-1/2" SCRAPER ANGLES

1

59053C3

FRAME ASSY, center LH, units A through H

1шт.

1

56894C4

FRAME ASSY, center RH, units A through F

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 pln hex.

1шт.

1

59054C3

FRAME ASSY, center LH, units G, H, K and J

1шт.

1

57927C4

FRAME ASSY, center RH, units G, H, K and J

1шт.

220081

NUT

3/4-10 pln hex.

1шт.

2

363919R1

SOCKET

SMV

1шт.

3

515030R1

CLAMP

hose

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8-16 x 2 znd sq-nk crg

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

1шт.

4

56921C1

CAP

BEARING, wheel shaft, units A through F

4шт.

4

491921R1

CYLINDER END CAP

BEARING, wheel shaft, units G, H, K and J

4шт.

5

56922C1

CAP

wheel brg, units A through F

4шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 PTF str lub 4

1шт.

5

468518R1

CAP

wheel brg, units G, H, K and J

1шт.

21074R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 2

SCREW, 3/4-10 x 1-3/4 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/8-27 PTF str lub

4шт.

6

56923C1

ANGLE, tooth

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

56924C1

FRAME ASSY, LH wing 24 ft, units A, B, J and K w/serial no. 1111 and below

1шт.

7

60313C5

FRAME ASSY, LH wing 24 fr, units A, B, J and K w/serial no. 1112 and above

1шт.

7

56925C1

FRAME ASSY, RH wing 24 ft, units A, B, J and K w/serial no. 1111 and below

1шт.

7

60314C5

FRAME ASSY, RH wing 24 ft, units A, B, J and K w/serial no. 1112 and above

1шт.

7

56940C5

FRAME ASSY, wing LH 28 ft, units C and D

1шт.

7

56941C5

FRAME ASSY, wing RH 28 ft, units C and D

1шт.

7

56947C5

FRAME ASSY, wing LH 32 ft, units E and F

1шт.

7

56948C5

FRAE, ASSY, wing RH 32 ft, units E and F

1шт.

7

57928C1

FRAME ASSY, LH wing 21 ft, units G and H w/serial no. 1111 and below

1шт.

7

60315C5

FRAME

ASSY, LH 21 ft, units G and H w/serial no. 1112 and above

1шт.

7

57929C1

FRAME ASSY, RH wing 21 ft, units G and H w/serial no. 1111 and below

1шт.

7

60316C5

FRAME

ASSY, RH 21 ft, units G and H w/serial no. 1112 and above

1шт.

8

56951C1

PIN

pivot

4шт.

21652R1

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

4шт.

9

471323R1

LINCH PIN

PIN, pivot lock

4шт.

10

56952C1

PLATE ASSY, lift arm

2шт.

11

56956C1

TUBE

ASSY, lift link

2шт.

12

56960C1

PIN

connecting link

8шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z, 12 for units a thorugh F, 16 for units G through K

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 11 ga znd, 4 for units A through F

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

16шт.

13

59052C1

BAR

lockout

1шт.

23283R1

PIN, 3/4 x 1-1/2 znd std-hd lockout 3/4" x 1 1/2"

1шт.

591107R1

COTTER PIN

q.a. cot.

1шт.

14

491921R1

CYLINDER END CAP

BEARING, wheel shaft, units C, D, E and F

4шт.

REF#14 SHOULD READ CAP AND LOOKS LIKE PART SHOWN ON THE ILLUSTRATION PAGE. 11/22/96

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub, machines w/serial no. 1111 and below

4шт.

REF#14A is a metal strap that looks more like item 15 on illustration page. 11/22/96

1шт.

128274

LUBE NIPPLE,1/4"-28 NPT x 1.12" lg

FITTING, 1/4-28 NF str lub, machies w/serial no. 1112 and above

4шт.

14

652815R1

SUPPORT

BEARING, axle top, units A, B, G, H, J and K

1шт.

652815R1 Bracket is 7.5" long, 2.5" wide, and 1/4" thick. Holes are 3" center to center.

1шт.

15

468518R1

CAP

wheel shaft brg, units C, D, E and F

1шт.

21074R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 2

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

15

652816R1

CLAMP

BEARING, axle bottom, units A, B, G, H, J and K

4шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

16

58643C1

SUPPORT

hose

1шт.

17

58644C1

HOLDER

BAR, hose

2шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 znd hex-hd mach

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

2шт.

18835R1

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 2

3/4-10 x 1-1/4 znd hex.

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga flat

2шт.

18

56961C1

BAR

STRAP, hose

1шт.

19

112500C1

SUPPORT, scraper angle LH, for 9 in. spacing only

1шт.

19

122501C1

SUPPORT, scraper angle RH, for 9 in. spacing only

1шт.

175311C1

REFLECTOR

red, on rear end of center frame assy

2шт.

174732C1

REFLECTOR

amber, on left front end of center frame assy

1шт.
