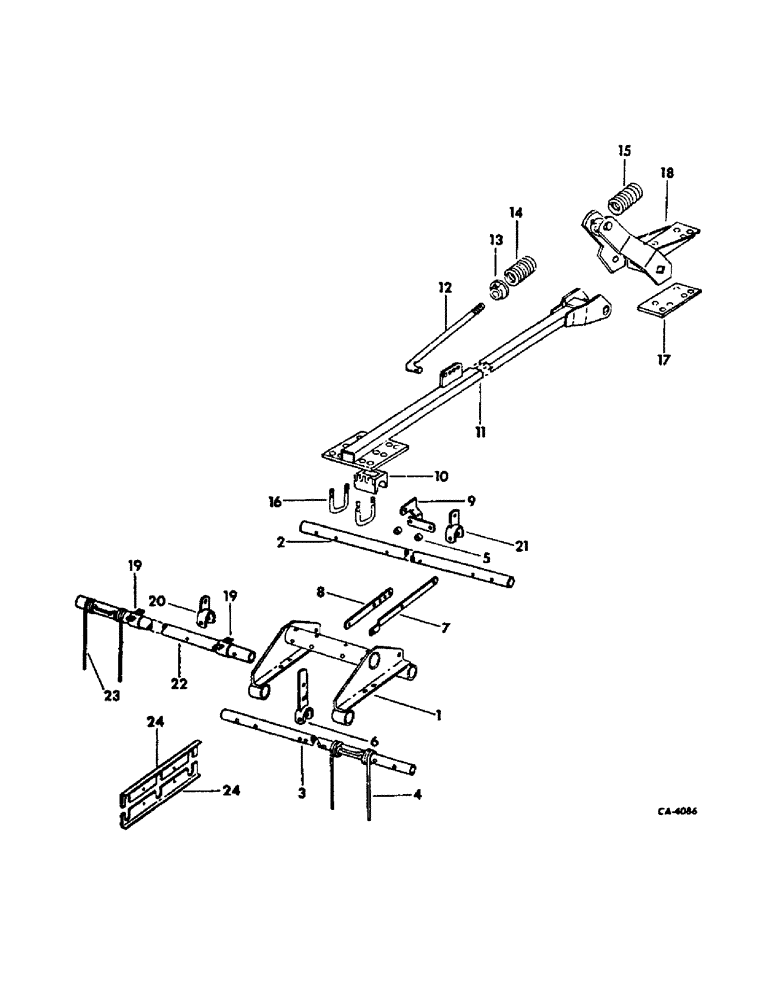

Запчасти Case IH 490 (AG-30) - MULCHER ATTACHMENT, MACHINES BUILT 1973 TO 1975, MACHINES W/2 X 1-1/2 IN. SCRAPER ANGLE

1

485614R2

FRAME

ASSY, 3 ft. 6 in. section, units C and D

2шт.

1

485615R2

FRAME

ASSY, 4 ft. 9 in. section, units C through H

2шт.

1

485616R2

FRAME

ASSY, 6 ft., 2 used with all units except E and F, 4 used with units end F

1шт.

1

490549R1

FRAME

ASSY, 7 ft. 3 in. section, units A, B, J and K

2шт.

2

485589R1

TUBE

BAR, 1st tooth, 1 per frame, used w/frame assy 485614R2

1шт.

2

485596R1

TUBE

BAR, 1st tooth, 1 per frame, used w/frame assy 485615R2

1шт.

2

485599R1

TUBE

BAR, 1st tooth, 1 per frame, used w/frame assy, 485616R2

1шт.

2

490550R1

TUBE

BAR, 1st tooth, 1 per frame, used w/frame assy 490549R1

1шт.

3

485590R1

TUBE

BAR, 3rd tooth, 1 per frame, used w/frame assy 485614R2

1шт.

3

485597R1

TUBE

BAR, 3rd tooth, 1 per frame, used w/frame assy 485615R2

1шт.

3

485600R1

TUBE

BAR, 3rd tooth, 1 per frame, used w/frame assy 485616R2

1шт.

3

490551R1

TUBE

BAR, 3rd tooth, 1 per frame, used w/frame assy 490549R1

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

spring, replaces 485613R1, 6 per frame assy 485614R2, 8 per frame assy 485615R2, 10 per frame assy 485616R2, 12 per frame assy 490549R1

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 MF two-way lock C-Z, 2 per tooth

1шт.

5

485591R1

SPACER

BUSHING, tooth, 2 per frame, used w/frame assy 485614R2

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

2шт.

472144R1

NUT

3/8-16 MF two-way lock C-Z

2шт.

6

485592R1

ARM

HANDLE ASSY, 1 per frame

1шт.

480159

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 MF two-way lock

2шт.

7

485593R1

SUPPORT

REACH, handle, 1 per frame

1шт.

8

485594R1

BAR

REACH, adjusting, 1 per frame

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 zn-pltd std-hd

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523

PIN, quick detachable cot.

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

3шт.

9

485595R1

SUPPORT

POST ASSY, front, 1 per frame, used w/frame assy 485614R2

1шт.

10

490687R1

CLAMP

tail plate, 2 per frame

1шт.

11

812223C1

ARM

ASSY, carrier, 1 per frame

1шт.

18741R1

BOLT

3/4 x 6 znd rd-hd sq-nk crg

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

1шт.

12

596580R1

ROD

compression, 1 per frame

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga znd

1шт.

13

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW ASSY, 1 per frame

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 znd sq-hd cup-pt set

1шт.

178375

WASHER, 25/32 x 1-1/4 x 16 ga znd

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 hex. jam

2шт.

14

596574R1

SPRING

compression bottom, 1 per frame (Replaces 596594R1)

1шт.

15

485611R1

SPRING

compression top, 1 per frame

1шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT, 1/2 in. znd, 4 per frame

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

17

60915C1

CLAMP

bar, 1 per frame

1шт.

18831R1

BOLT,Hex, 5/8" - 11 x 5 1/2"

SCREW, 5/8-11 x 5-1/2 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

18

60916C1

BRACKET

attaching, 1 per frame

1шт.

19

485603R1

BUSHING

ASSY, center bar, 2 per frame

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8/16 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

485601R1

ARM

POST ASSY, center, 1 per frame

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 two-way lock C-Z

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 C-Z std-hd

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

1шт.

21

485601R1

ARM

POST ASSY, 1 per frame

1шт.

22

485602R1

TUBE

BAR, 2nd tooth, 1 per frame, used w/frame assy 485614R2

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

22

485604R1

TUBE

BAR, 2nd tooth, 1 per frame, used w/frame assy 485615R2

1шт.

22

485605R1

TUBE

BAR, 2nd tooth, 1 per frame, used w/frame assy 485616R2

1шт.

22

490552R1

TUBE

BAR, 2nd tooth, 1 per frame, used w/frame assy 490549R1

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

3шт.

23

72901C1

TOOTH

spring, replaces 485613R1, 3 per frame assy 485614R2, 4 per frame assy 485615R2, 5 per frame assy 485616R2, 6 per frame assy 490549R1

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 MF two-way lock C-Z, 2 per tooth

1шт.

24

485598R1

SUPPORT

RAIL, center, 2 per frame

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
