Запчасти Case IH 490 (AG-29) - HYDRAULIC CYLINDER, 4 X 16 IN.

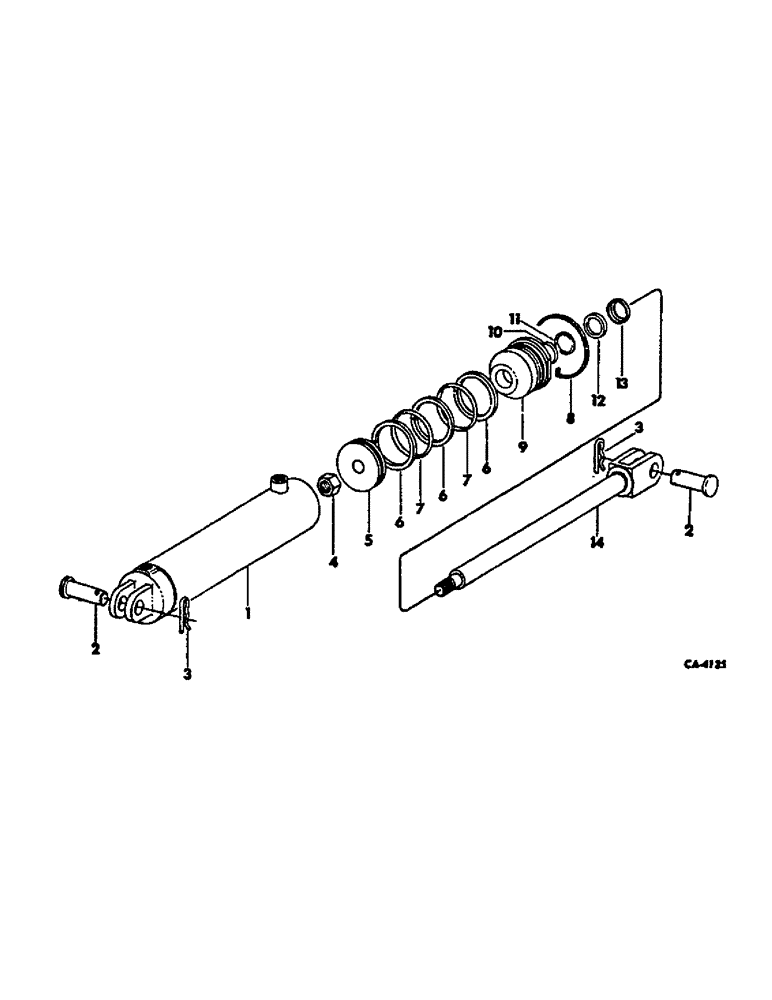

Схема запчастей Case IH 490 - (AG-29) - HYDRAULIC CYLINDER, 4 X 16 IN.

Артикул

Название

Примечание

Количество

548004R92

CYLINDER

ASSY, 4 x 16 in. hydraulic, order 108681C91

1шт.

108681C91

CYLINDER

ASSY, 4 x 16 in. hydraulic

1шт.

1

548015R1

HYD TUBE

BODY ASSY, hyd cylinder

1шт.

2

60909C1

PIN

cylinder pivot

2шт.

3

520175R1

CLIP

PIN, quick attachable cot.

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 hex. lock

1шт.

5

548013R1

PISTON

1шт.

6

381107R1

BACK-UP RING

WASHER, back-up

3шт.

7

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

3-5/8 x 4 x 3/16, class 6

2шт.

8

548025R1

RETAINER

front head

1шт.

9

548022R1

HEAD

front, for cylinder, 548004R92

1шт.

9

108684C1

HEAD

front, for cylinder, 108681C91

1шт.

10

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/16, for cylinder, 548004R92

1шт.

10

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1-3/4 x 2-1/8 x 3/16, for cylinder, 108684C91

1шт.

11

403622R1

BACK-UP RING

WASHER, quad ring back-up, for cylinder, 548004R92

2шт.

11

387362R2

BACK-UP RING

WASHER, quad rind back-up, for cylinder, 108681C91

2шт.

12

383770R1

WASHER

WIPER, piston rod, for cylinder, 548004R92

1шт.

12

389390R1

WIPER SEAL

WIPER, piston rod, for cylinder, 108681C91

1шт.

13

383771R1

SEALING WASHER

RETAINER, piston rod wiper, for cylinder, 548004R92

1шт.

14

548020R1

ROD

ASSY, piston, for cylinder, 548004R92

1шт.

14

108682C1

ROD

ASSY, piston, for cylinder, 108681C91

1шт.

548024R92

KIT

PACKAGE, hydraulic cylinder service, for cylinder, 548004R92, consists of (1) washer 383770R1, (1) washer 383771R1, (1) o-ring 378735R1, (1) washer 403622R1, (2) o-ring 347801R1, (3) washer 381107R1, (1) retainer 548025R1

1шт.

62419C91

SEAL KIT

PACKAGE, hydraulic cylinder service, for cylinder, 108681C91, consists of (3) washer 381107R1, (2) o-ring 347801R1, (1) retainer 548025R1, (1) o-ring 387363R1, (1) washer 387362R2, (1) wiper 389390R1

1шт.

Выбрано товаров: 23
