Запчасти Case IH 490 (AG-28) - HYDRAULIC CYLINDER, 3-1/2 X 16 IN.

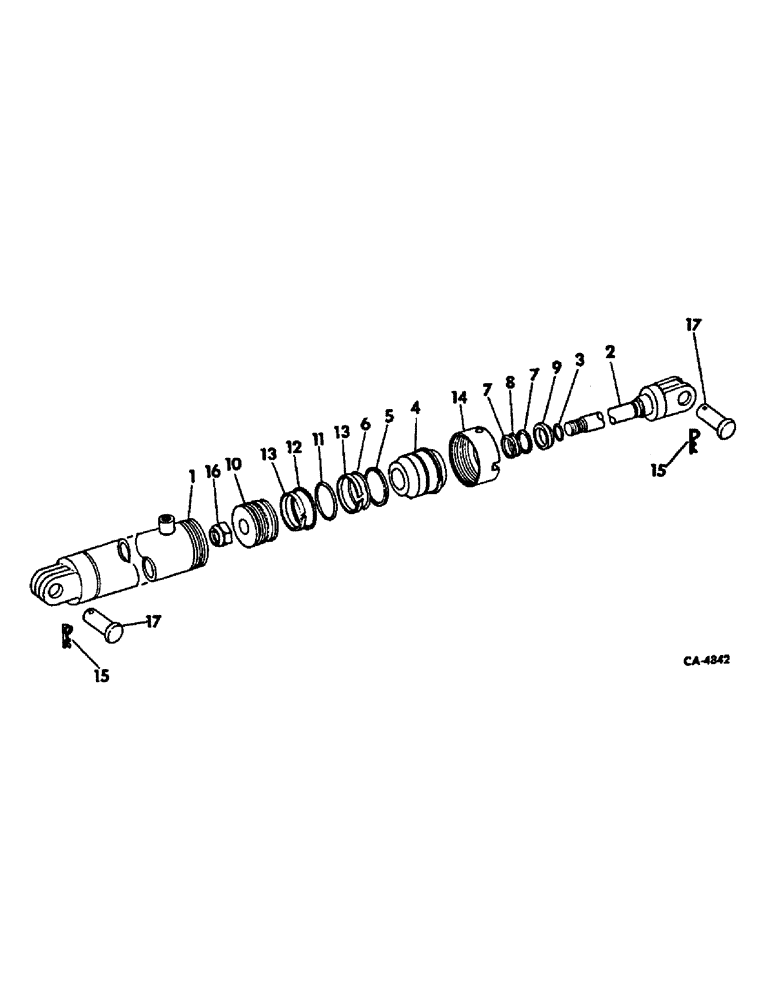

Схема запчастей Case IH 490 - (AG-28) - HYDRAULIC CYLINDER, 3-1/2 X 16 IN.

Артикул

Название

Примечание

Количество

71958C91

CYLINDER

ASSY, 3-1/2 x 16 hydraulic, double acting

1шт.

1

387359R12

TUBE

BODY ASSY, hydraulic cylinder

1шт.

2

128016C1

ROD ASSY.

ROD ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, piston rod static

1шт.

4

387353R1

END

HEAD, cylinder front

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

490 INTERNATIONAL HARVESTER TANDEM DISK HARROW, HEAD, cylinder front, Reman for New PN 387353R1

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

5

381088R1

BACK-UP RING

front head

1шт.

6

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16, front head

1шт.

7

387362R2

BACK-UP RING

WASHER, piston rod backup

2шт.

8

403995R1

RING

quad, piston rod

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

387354R1

PISTON

1шт.

11

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32, piston seal

1шт.

12

381086R1

RING

piston seal

1шт.

13

383005R1

RING

piston bearing

2шт.

14

381089R1

RING

retaining

1шт.

15

520175R1

CLIP

PIN, quick attachable cot.

2шт.

16

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC hex., piston rod lock

1шт.

17

60909C1

PIN

1-1/4 x 3.07 in. headed pivot, cylinder body end

1шт.

17

127892C1

PIN

1-1/4 x 3.33 in. headed pivot, piston rod end

1шт.

387881R92

SEAL KIT

PACKAGE, hydraulic cylinder service, consists of (1) o-ring 380794R1, (1) o-ring 378827R1, (1) o-ring 380910R1, (1) ring 403995R1, (1) washer 381088R1, (2) washer 387362R2, (1) seal ring 381086R1, (2) ring 383005R1, (1) wiper 403845R1

1шт.

Выбрано товаров: 22
