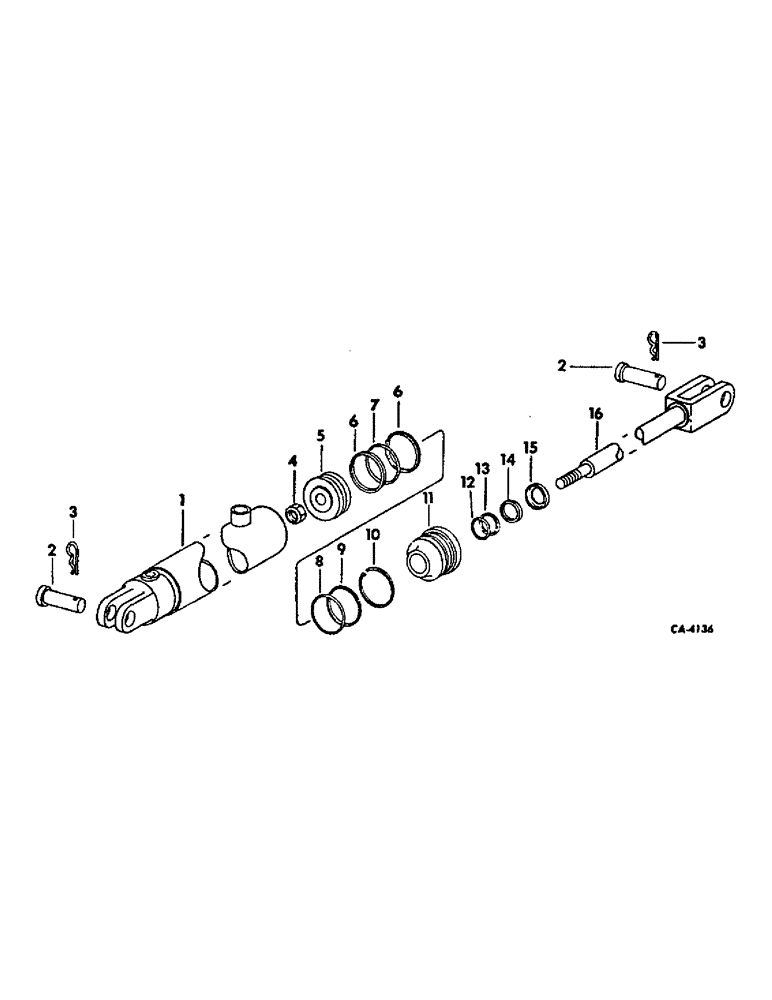

Запчасти Case IH 490 (AG-27) - HYDRAULIC CYLINDER, 3-1/2 X 16 IN.

61107C92

CYLINDER

ASSY, 3-1/2 x 16 hydraulic, order cylinder assy, 71958C91

1шт.

1272149C92R

REMAN-HYD CYLINDER

490 INTERNATIONAL HARVESTER TANDEM DISK HARROW, ASSY, Reman for New PN 61107C92

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

61108C1

CYLINDER

BODY ASSY, hyd cylinder

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

490 INTERNATIONAL HARVESTER TANDEM DISK HARROW, BODY ASSY, hyd cylinder, Reman for New PN 61108C1

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

60909C1

PIN

cyl pivot

2шт.

3

520175R1

CLIP

PIN, quick attachable cot.

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

5

547724R1

PISTON

1шт.

6

375936R1

BACK-UP RING

WASHER, backup

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 piston seal

1шт.

8

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8 frt head

1шт.

9

404015R1

BACK-UP RING

WASHER, backup

1шт.

10

405002R1

RING

RETAINER, frt head

1шт.

11

60299C2

HEAD

front

1шт.

12

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/16

1шт.

13

403622R1

BACK-UP RING

WASHER, backup

1шт.

14

383770R1

WASHER

WASHER, wiper felt

1шт.

15

383771R1

SEALING WASHER

WASHER, retainer

1шт.

16

547742R1

ROD

ASSY, piston

1шт.

548392R92

SEAL KIT

PACKAGE, hyd cyl seal ring, consists of (1) washer 383770R1, (1) washer 383771R1, (1) o-ring 343940R1, (1) o-ring 378735R1, (1) washer 403622R1, (2) washer 375936R1, (1) o-ring 378827R1, (1) retainer 405002R1, (1) nut 9413974, (1) washer 404015R1

1шт.
