Запчасти Case IH 490 (AG-25) - SPECIAL BRACKETS & SCRAPERS, FOR 7-1/2 IN. SPACING, S/N 9816 & ABOVE, USED W/2 X 2" SCRAPER ANGLES

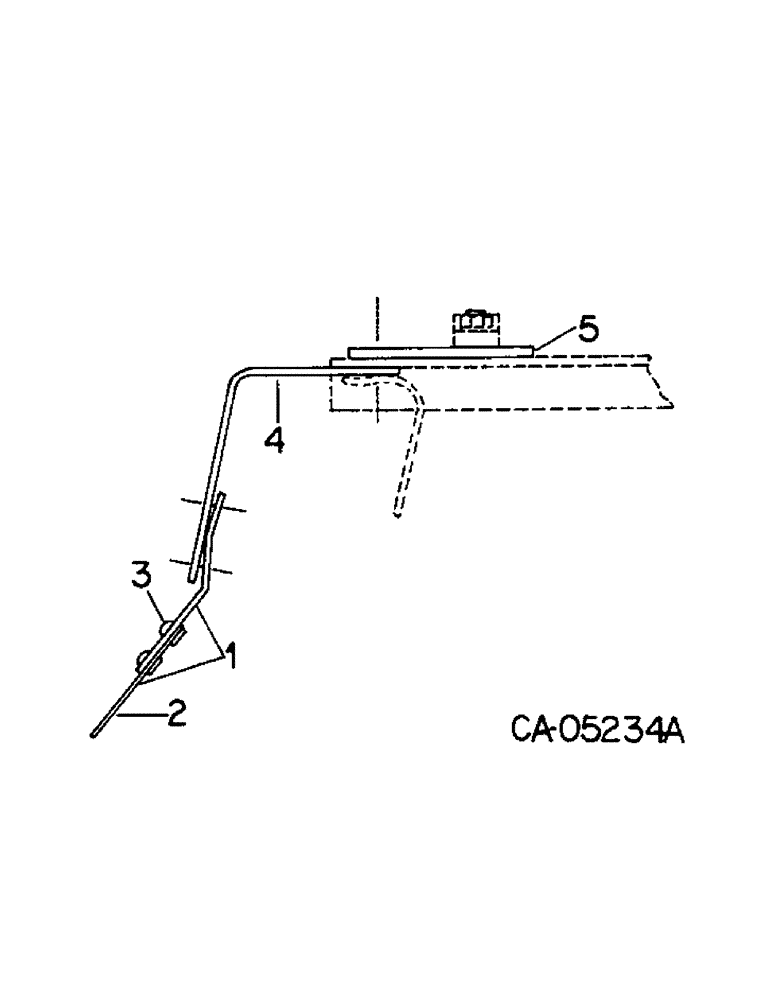

Схема запчастей Case IH 490 - (AG-25) - SPECIAL BRACKETS & SCRAPERS, FOR 7-1/2 IN. SPACING, S/N 9816 & ABOVE, USED W/2 X 2" SCRAPER ANGLES

Артикул

Название

Примечание

Количество

1

121183C91

BRACKET

ASSY, scraper short LH

2шт.

1

121184C91

BRACKET

ASSY, scraper short RH

2шт.

2

121118C1

BLADE

scraper, 1 per scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET, step, 2 per blade

1шт.

4

121168C1

SUPPORT

BRACKET, furrow filler

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

8шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

8шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 X 1-3/4 crg type 1

20шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

22шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

20шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.

5

121301C1

BAR, support, machines w/serial no. 16677 & below

1шт.

Выбрано товаров: 13
