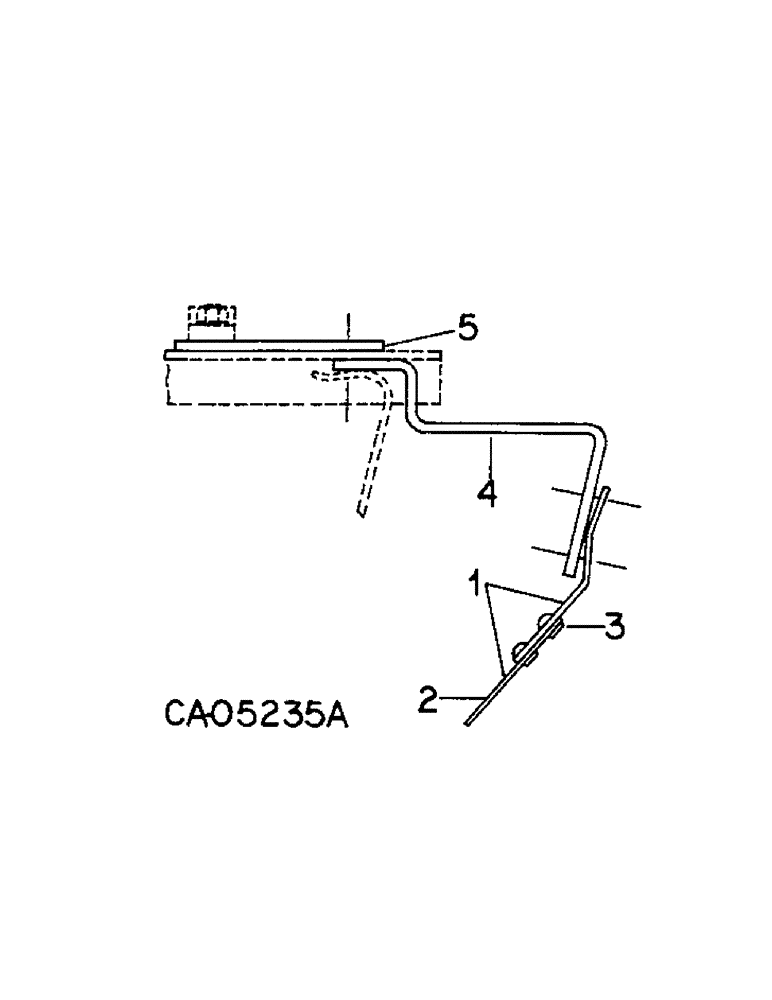

Запчасти Case IH 490 (AG-25[A]) - SPECIAL BRACKETS & SCRAPERS, FOR 9" SPACING MACHINES W/SN 9816 & ABOVE USED W/2 X 2" SCRAPER ANGLES

1

121183C91

BRACKET

ASSY, scraper short LH

1шт.

1

121184C91

BRACKET

ASSY, scraper short RH

1шт.

2

121118C1

BLADE

scraper, 1 per scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET, step, 2 per blade

1шт.

4

121152C1

SUPPORT

scraper extension

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

4шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 sq-nk crg

24шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

26шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

24шт.

131016

WASHER

.656 x 1.312 x .074

2шт.

5

121347C1

BAR

support, machines w/serial no. 16677 & below

1шт.
