Запчасти Case IH 490 (AG-24[B]) - SCRAPERS MACHINES W/SERIAL NO. 9816 AND ABOVE, USED WITH 2 X 2 IN. SCRAPER ANGLES

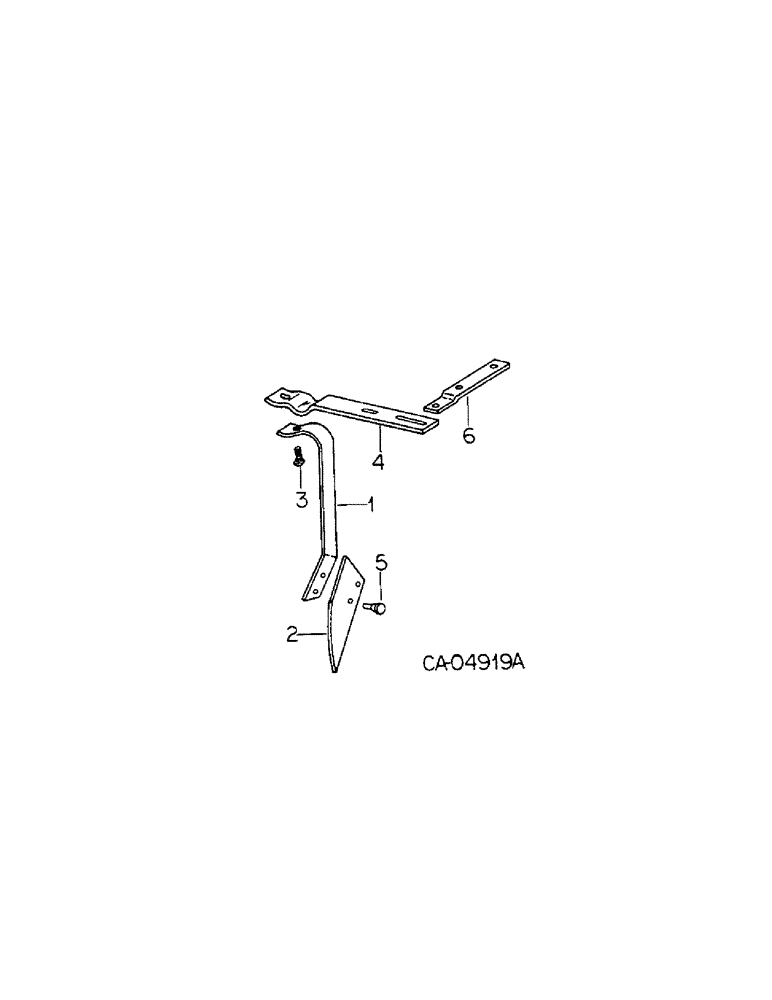

Схема запчастей Case IH 490 - (AG-24[B]) - SCRAPERS MACHINES W/SERIAL NO. 9816 AND ABOVE, USED WITH 2 X 2 IN. SCRAPER ANGLES

Артикул

Название

Примечание

Количество

1

121119C92

SCRAPER

ASSY, LH, 1 per disk

1шт.

1

121120C92

SCRAPER

ASSY, 1 per disk

1шт.

2

121118C1

BLADE

scraper, 1 per scraper

1шт.

3

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT, special step, 1 per scraper

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

PO10535

WASHER

17/32 x 1-1/4 x .105

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

121224C1

SUPPORT

furrow filler, bracket, for furrow filler attachment

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 znd sq-nk crg

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

5

121233C1

RIVET,20mm OD x 29mm L

RIVET, step, 2 per blade

1шт.

6

121167C1

SUPPORT

BRACKET, scraper angle, for furrow filler attachment

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

4шт.

Выбрано товаров: 17
