Запчасти Case IH 490 (AG-24[A]) - SCRAPERS, HEAVY DUTY, MACHINES W/SERIAL NO. 9815 AND BELOW, USED W/2 X 1-1/2 IN. SCRAPER ANGLES

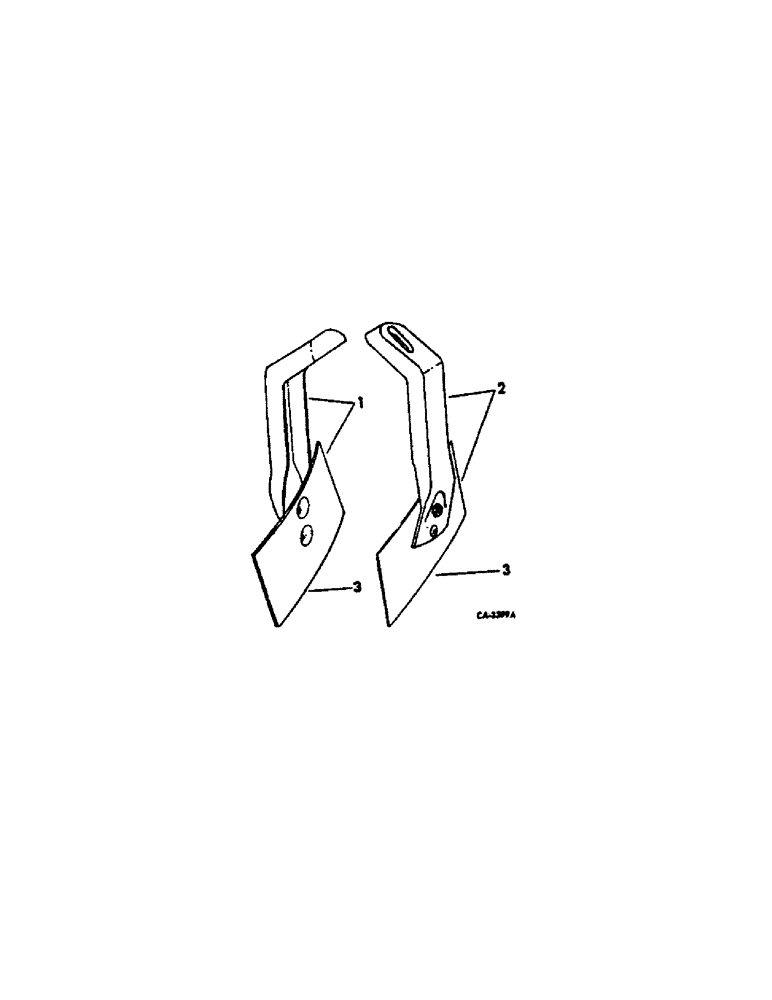

Схема запчастей Case IH 490 - (AG-24[A]) - SCRAPERS, HEAVY DUTY, MACHINES W/SERIAL NO. 9815 AND BELOW, USED W/2 X 1-1/2 IN. SCRAPER ANGLES

Артикул

Название

Примечание

Количество

1

540458R92

HALF BLADE

SCRAPER ASSY, LH, 1 per disk

1шт.

2

540459R92

BLADE

SCRAPER ASSY, RH, 1 per disk

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

2шт.

3

483096R2

KNIFE ASSY

BLADE, scraper, 1 per scraper assy

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

RIET, 3/8 x 7/8 truss-hd

2шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

disc scraper

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

Выбрано товаров: 9
