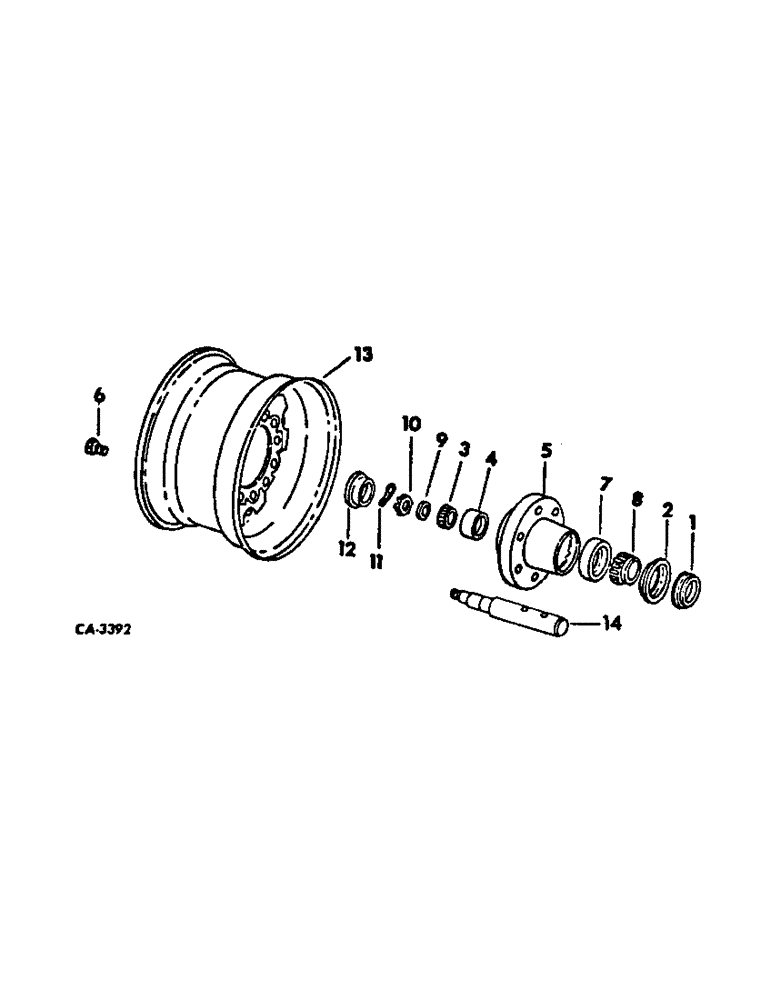

Запчасти Case IH 490 (AG-23) - DIAL WING WHEEL

1

667599R91

OIL SEAL

2шт.

2

667564R1

RING

SLEEVE, wear

2шт.

3

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outside

2шт.

4

371883R1

BEARING CUP

Outside

2шт.

5

465493R2

HUB

wheel

2шт.

6

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inside

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, inside brg

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga (Replaces 369867R1)

2шт.

10

69442D

NUT

3/4-16 NF slotted jam

2шт.

11

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

12

663908R1

CAP

hub

2шт.

13

481344R91

WHEEL

DISC AND RIM ASSY 14 x 8KB

2шт.

13

481345R91

RIM

DISC AND RIM ASSY 14 x 6KB

2шт.

13

614424R91

WHEEL ASSY.

DISC AND RIM ASSY 15 x 6LB

2шт.

14

478375R1

SPINDLE

wheel

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex lock

2шт.
