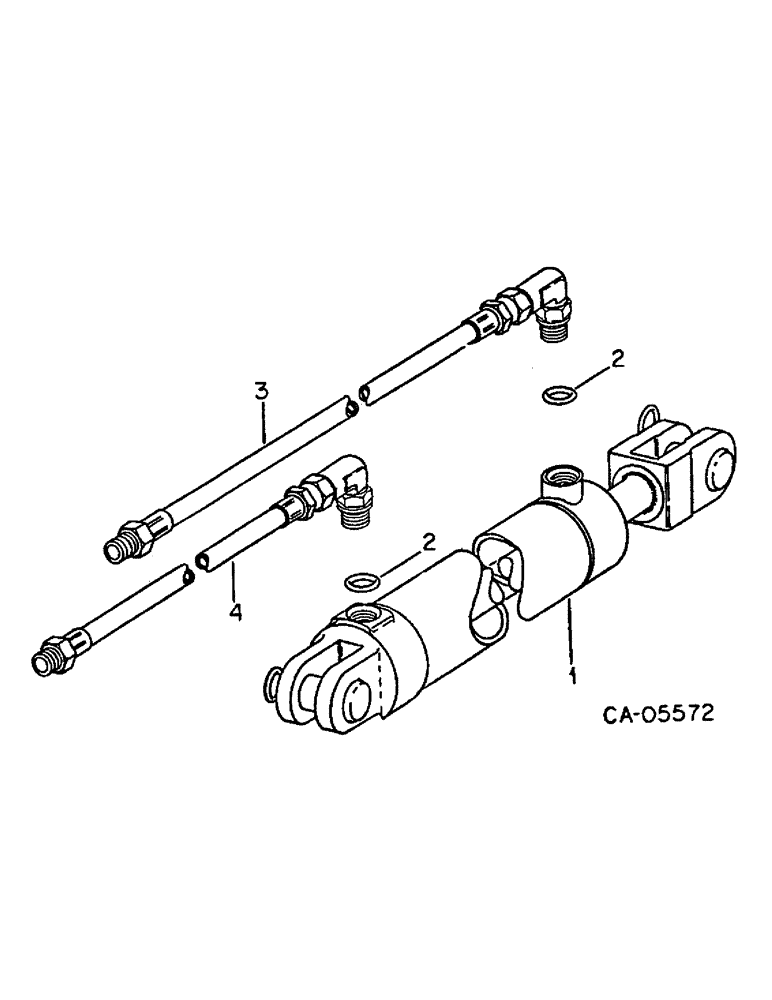

Запчасти Case IH 490 (AG-19) - TRANSPORT CYLINDER AND CONNECTIONS, TRACTORS WITH TWO VALVES

1

71958C91

CYLINDER

ASSY, 3-1/2 x 16 hydraulic, will work for 61107C91, for components see list of parts under details of hydraulic cylinder 3-1/2 x 16

1шт.

REF 1 SEAL KIT IS 387881R92. CNS/CAM 8/21/98

1шт.

1

145434C91

CYLINDER

ASSY, 3-1/2 x 16 hydraulic, refer to cyl, 1 for components

1шт.

NOTE: BODY OF CYLINDER IS PART 387359R12

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

490 INTERNATIONAL HARVESTER TANDEM DISK HARROW, ASSY, Reman for New PN 145434C91

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

3

653348R91

FLEXIBLE HOSE

HOSE ASSY, 1/2 x 155 in. long

1шт.

4

121360C1

HOSE,0.50" ID x 135.00", SAE 100R1

0.50" ID x 135.00", SAE 100R1

1шт.
