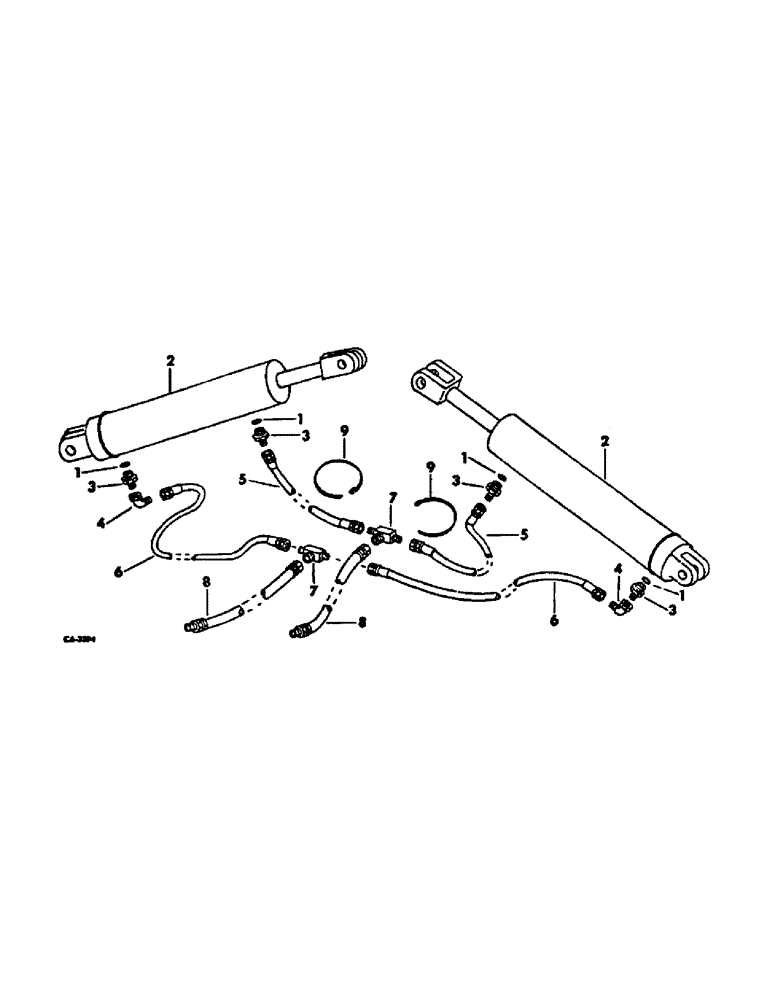

Запчасти Case IH 490 (AG-18) - HYDRAULIC WING LIFT CYLINDERS AND CONNECTIONS

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

2

71958C91

CYLINDER

ASSY, hyd 3-1/2 x 16, will work for 61107C91, units A through D and G through K, for components see list of parts under details of hydraulic cylinder 3-1/2 x 16

2шт.

2

108681C91

CYLINDER

ASSY, hyd 4 x 16, replaces 548004R92, units E and F, for components, see list of parts under details of hydraulic cylinder 4 x 16

2шт.

2

145434C91

CYLINDER

ASSY, 3-1/2 x 16 in., refer to cyl, 1 for components

2шт.

2

1272149C92R

REMAN-HYD CYLINDER

490 INTERNATIONAL HARVESTER TANDEM DISK HARROW, ASSY, Reman for New PN 145434C91

2шт.

2

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

3

391797R1

HYD CONNECTOR,7/16"-20, 37 Degree x 7/8"-14, O-Ring

UNION, 7/16 fittings

4шт.

3

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

UNION, 9/16 fittings

4шт.

4

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16 fittings only

2шт.

5

57015C1

HYDRAULIC HOSE,0.25" ID x 48.00"

7/16 Fittings 0.25" ID x 48.00"

2шт.

5

61909C1

HOSE,0.25" ID x 44.00", Class 7

- 9/16 fittings 0.25" ID x 44.00", Class 7

2шт.

6

57016C1

HYDRAULIC HOSE,0.25" ID x 60.00", Class 7

Basket Sense, 7/16 Fittings 0.25" ID x 60.00", Class 7

2шт.

6

60233C1

HOSE

ASSY, 54 in., 9/16 fittings

2шт.

7

57065C1

TEE

reducing, 7/16 fittings

2шт.

7

673568R1

TEE

reducing, 9/16 fittings

2шт.

8

546502R2

HYDRAULIC HOSE,0.50" ID x 114.00", SAE 100R1

Machines W/Serial No. 1111 and Below 0.50" ID x 114.00", SAE 100R1

2шт.

8

953468R91

HOSE

ASSY, 122 in., machines w/serial no. 1112 and above

2шт.

9

289862C1

CABLE TIE,3/16" x 7"

STRAP, lock

2шт.
