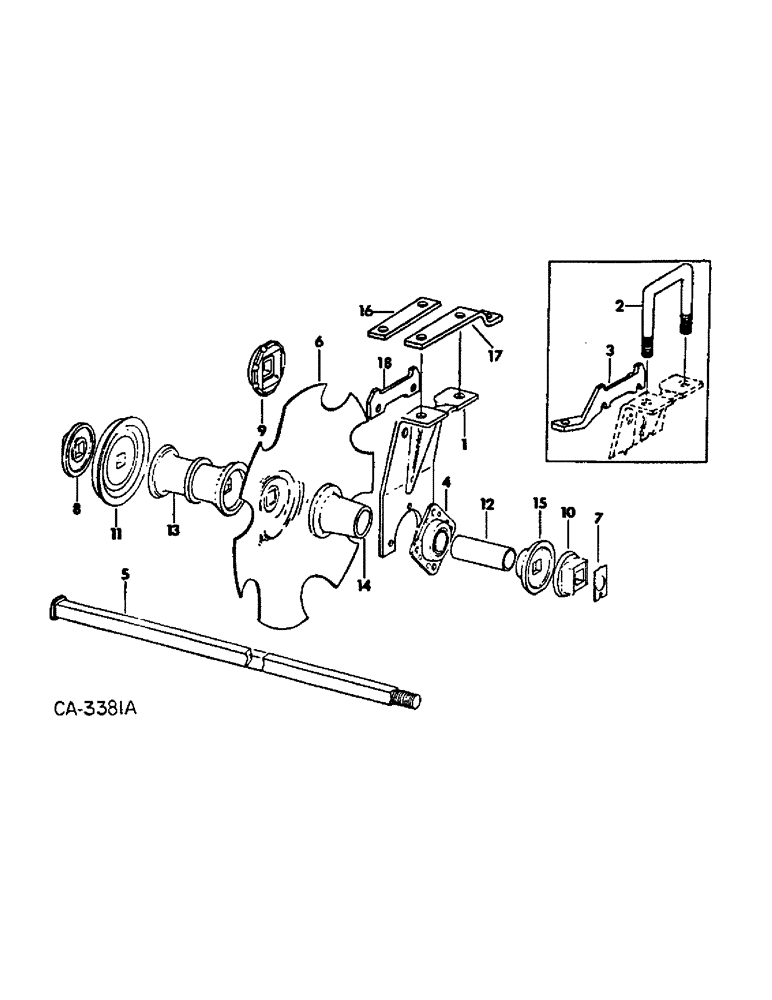

Запчасти Case IH 490 (AG-12) - BEARINGS, DISKS AND GANGS, MACHINES W/SERIAL NO. 16677 AND BELOW
№
Артикул
Название
Примечание
Количество
1
56995C1
SUPPORT
STANDARD, bearing, stamped type, 18 for units A & B, 20 for units G & H, 24 for units C, D, J & K, 26 for units C, D, J & K, 26 for units E and F
1шт.
17452R1
BOLT,Hex, 1/2"-13 x 1 1/4", G2
1/2 x 1-1/4 znd hex-hd mach, 3 per standard
1шт.
120384
WASHER,1/2"
LOCK, , 3 per standard 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 3 per standard 1/2"-13, G5
1шт.
2
56996C1
BOLT,U, 3/4" - 10 x 4.4"
U-BOLT, 3/4 in., 1 per standard, machines built 1973 to 1975, machines w/2 x 1-1/2 in. angles
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
3
56997C3
BRACKET
scraper LH, machines built 1973 to 1975, 1 per standard LH side
1шт.
3
56998C3
BRACKET
scraper RH, machines built 1973 to 1975, 1 per standard RH side
1шт.
271547
STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 2 per bracket
1шт.
373211R1
NUT, 5/8-11 znd hex. lock, 1 per screw
1шт.
4
ST490A
BEARING
disc gang ball sealed, 1 per standard
1шт.
4
ST491A-IMPGV
BEARING
Value, 1-3/4 In. Round Bore Bearing Assy
1шт.
4
ST491A
BALL BEARING,45mm ID
BEARING, ball w/lub fitting, regreasable, 1 per standard
1шт.
5
468607R1
BOLT,1 1/8"-7 x 39.8"
front wing arbor, 39.8 in., 2 for unit H
1шт.
5
471014R1
BOLT,1 1/8"-7 x 48.8"
wing arbor, 48.8 in., 4 for unit G, 2 for unit H
1шт.
5
652939R2
BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"
arbor, 67.4 in., 2 for units D, F and H, 4 for units B and K
1шт.
5
472586R2
BOLT,1 1/8"-7 x 71.9"
arbor, 71.9 in., 4 for units C, E and G, 8 for units A and J
1шт.
5
468582R2
BOLT (SPREADER),1 1/8"-7 x 76.7"
BOLT, arbor, 76.4 in., 2 for units D, F and H, 4 for units B and K
1шт.
5
481844R1
BOLT,1 1/8"-7 x 85.4"
front wing arbor, 85.4 in., 2 for unit D
1шт.
5
487168R1
BOLT,1 1/8"-7 x 94.6"
wing arbor, 94.4 in., 4 for unit C, 2 for unit D
1шт.
5
546831R1
BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 112.70mm
wing arbor, 112.4 in., 2 for unit F
1шт.
5
56999C1
SPECIAL BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 117.60mm
BOLT, wing arbor, 116.9 in., 4 for unit E
1шт.
5
57000C1
BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 121.80mm
wing arbor, 121.4 in., 2 for unit F
1шт.
6
472217R1
DISK HARROW
DISK, 20 in. x 8 ga solid, standard equipment
1шт.
6
482986R2
DISK HARROW
DISK, 18 in. x 8 ga solid
1шт.
6
651199R1
DISC
DISK, 18 in. x 9 ga solid
1шт.
6
482973R1
DISC
DISK, 20 in. x 7 ga solid
1шт.
6
482975R1
PLOW DISC
DISK, 22 in. x 6 ga solid
1шт.
6
472218R1
DISC
DISK, 22 in. x 7 ga solid
1шт.
6
482987R2
DISK HARROW
DISK, 18 in. x 8 ga notched
1шт.
6
651200R1
DISK HARROW
DISK, 18 in. x 9 ga notched
1шт.
6
482974R1
DISC
DISK, 20 in. x 7 ga notched
1шт.
6
489241R1
DISC
DISK, 20 in. x 8 ga HV notched
1шт.
6
482976R1
DISK HARROW
DISK, 22 in. x 6 ga notched
1шт.
6
P24425
DISC
DISK, 22 in. x 7 ga notched
1шт.
59749C1
SQ HOLE WASHER
take-up washer for 8 ga disks
1шт.
7
489292R1
SUPPORT ASSY.
STRIP, arbor bolt
8шт.
492-11112
LOCK WASHER,1 1/8"
1-1/8 znd reg lock
8шт.
8
P4165A
WASHER
head
4шт.
9
100696C1
WASHER
furrow filler, replaces 466950R2
2шт.
10
PA4167
WASHER
nut, 8 for units A and B, 4 for units G & H
8шт.
10
481611R1
WASHER
nut, 4 for units G & H, 8 for units C, D, E, F, J and K
1шт.
11
468584R2
SQ HOLE WASHER
bumper
2шт.
12
652383R1
BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L
support, 7-1/2 in., for use w/spools w/sqw ctr holes, 1 per standard on units A, C, E, G and J
1шт.
12
112769C1
BUSHING,38.91mm ID x 44.45mm OD x 183mm L
support, 7-1/2 in., for use w/spools w/rd ctr holes, 1 per standard on units A, C, E, G and J
1шт.
12
472594R1
BUSHING,38.91mm ID x 44.45mm OD x 154mm L
support, 9 in., for use w/spools w/sq ctr holes, 1 per standard on units B, D, F, H and K
1шт.
12
112410C1
TUBE
BUSHING, support, 9 in., for use w/spools w/rd ctr holes, 1 per standard on units B, D, F, H and K
1шт.
13
481416R1
SPOOL
7-1/2 in. spacing, 42 used unit G, 54 used units A and J, 62 used on unit C, 72 used on unit E
1шт.
13
481417R1
SPOOL
9 in. spacing, 30 used on unit H, 42 used on units B and K, 46 used on unit D, 56 used on unit F
1шт.
14
472591R3
BUSHING,1.796" ID x 2.4" OD x 4.052"
W/SQ CENTER HOLE, brg 4 in.
1шт.
15
472592R3
SPOOL
W/SQ CENTER HOLE, brg 1-1/2 in.
1шт.
15
101189C1
SPOOL
W/RD CENTER HOLE, brg 1-1/2 in., 1 per standard on units A, C, E, G and J
1шт.
15
472593R3
SPOOL
W/SQ CENTER HOLE, brg 3 in.
1шт.
16
112448C2
BAR
replaces u-bolt, 56996C1, by also ordering attaching hardware, 1 per standard, machines built 1973 to 1975, machines w/2 x 1-1/2 in. angles
1шт.
16
112448C2
BAR
units C, D, G through K, machines built 1976 and since, machines w/2 x 2 in angles
2шт.
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
SCREW, 3/4-10 x 5 znd hex-hd cap, 2 per bar , Course threads
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 1 per screw
1шт.
17
121167C1
SUPPORT
BRACKET, scraper angle, machines w/serial no. 9816 to 166677, machines w/2 and 2 in. angles, 14 for G and H, 18 for C, D, J and 5, 22 for E and f
1шт.
413-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
SCREW, 3/4-10 x 5 znd hex-hd cap, 2 per bracket , Course threads
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 1 per screw
1шт.
17
112917C1
BRACKET, scraper LH, machines w/serial no. 9815 & below
1шт.
17
112918C1
BRACKET
scraper RH, machines w/serial no. 9815 & below
1шт.
18
121207C1
SUPPORT
bearing standard, mashines w/serial no. 9816 to 16677, 1 per standard
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-1/2 znd hex-hd cap, 2 per support
1шт.
473211R1
LOCK NUT,5/8"-11, GB
NUT, 5/8-11 znd hex. lock, 2 per support
1шт.
72819C91
1шт.
PACKAGE, bearing std-service, for changing machines in the field w/steel std's to cast std's, consists of, (2) bearing std 129532C2, (2) bar, taped 129530C1, (4) bolts 271781, (6) bolts 18496R1, (6) washers 120384, (6) nuts 120373, (2) bars 112448C1, (1) instructions (NSS)
1шт.
Выбрано товаров: 73
