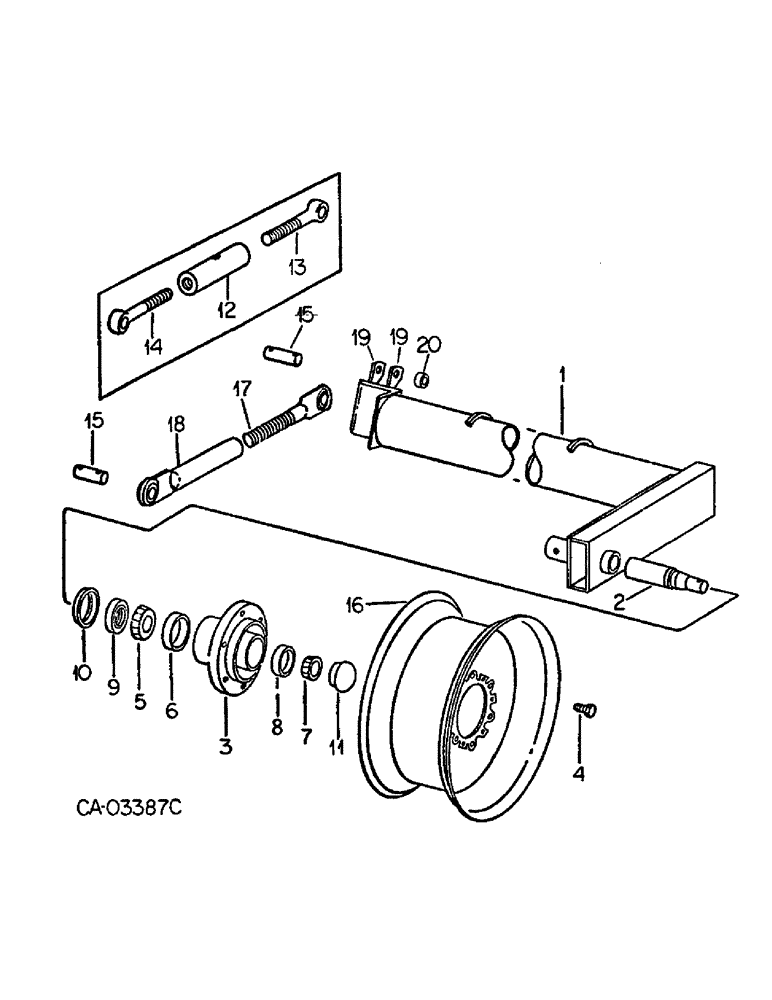

Запчасти Case IH 490 (AG-10) - WING FRAME WHEEL AXLE

1

56988C1

TUBE ASSY, wheel axle LH, units A, B and G through K with serial no. 1111 and below

1шт.

1

60308C4

TUBE,38.7" Length

ASSY, wheel axle LH, includes ref 19, units A, B and G through K with serial no. 1112 and above, units L & M, units N & P w/serial no. 20219 & below

1шт.

REFER TO PART 60308C4 MEASURES 38.7 WIDE.

1шт.

1

129733C2

TUBE

ASSY, wheel axle LH w/spindle, units N & P w/serial no. 20220 & above

1шт.

REFER TO PART 129733C2 MEASURES 60.1 WIDE

1шт.

1

56989C1

TUBE ASSY, wheel axle RH, units A, B and G through K with serial no. 1111 and below

1шт.

1

60309C4

TUBE,38.7" Length

ASSY, wheel axle RH, includes ref 19, units A, B and G through K with serial no. 1112 and above, units L & M, units N & P w/serial no. 20219 & below

1шт.

REFER TO PART 60309C4 MEASURES 38.7 WIDE

1шт.

1

129734C2

TUBE

ASSY, wheel axle RH w/spindle, units N & P w/serial no. 20220 & above

1шт.

REFER TO PART 129734C2 MEASURES 60".1 WIDE.

1шт.

1

56992C4

TUBE ASSY, wheel axle LH, included ref 19, units C, D, E and F

1шт.

REFER TO PART 56992C4 MEASURES 79.2" WIDE.

1шт.

1

56993C4

TUBE ASSY, wheel axle RH, includes ref 19, units C, D, E and F

1шт.

REFER TO PART 56993C4 MEASURES 79.2" WIDE.

1шт.

2

478375R1

SPINDLE

wheel, note reqd for units N & P

1шт.

NOTE:PRIOR TO SN#1111 SPINDLE 472289R91

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd lock hex.

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga

2шт.

69442D

NUT

3/4-16 slotted hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

3

465493R2

HUB

wheel

2шт.

NOTE:PRIOR TO SN#1111 HUB 472220R2 11/22/96

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

4

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel hub special, replaces 351079R1

12шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, inner cone, units A, B and D through K with serial no. 1111 and below

2шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, inner cone, units A, B and G through K w/serial no. 1112 and above and units C through F, L through P

1шт.

6

651817R1

BEARING CUP

BEARING, inner cup, units A, B and G through K with serial no 1111 and below

1шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, units A, B, G through K w/serial no. 1112 and above and units C through F, L through P

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone, units A, B and G through K with serial no. 1111 and below

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

7

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer, units A, B, G through K w/serial no. 1112 and above and units C through F, L through P

1шт.

8

651814R1

BEARING CUP

BEARING, outer cup, units A, B and G through K with serial no. 1111 and below

1шт.

8

371883R1

BEARING CUP

Outer, Units A, B, G through K w/serial no. 1112 and above units C through F, L through P

1шт.

9

NS

NOT SERVICED

SEAL, oil, units A, B and G through K with serial no. 1111 and below

1шт.

9

667599R91

OIL SEAL

oil, units A, B, G through K w/serial no. 1112 and above and units C through F, L through P

1шт.

10

472222R1

SLEEVE

oil seal, units A, B and G through K with serial no. 1111 and below

1шт.

10

667564R91

RING

wear sleeve, units A, B and G through K w/serial no. 1112 and above and units C through F, L through P

1шт.

11

651194R1

CAP

wheel hub, units A, B and G through K with serial no. 1111 and below

1шт.

11

663908R1

CAP

hub, units A, B, G through K w/serial no. 1112 and above and units C through F, L through P

1шт.

12

TURNBUCKLE, on orders for 526904R1 furnish tube assy, 60420C2 and eyebolt, 60423C3

1шт.

109451

FITTING, 1/4-28 str lub

2шт.

13

EYEBOLT, LH, on orders for 490790R1 furnish tube assy, 60420C2 and eyebole, 60423C3

1шт.

426899

NUT,Jam, 1"-8, G5

1 in. C-Z hex. jam

2шт.

14

EYEBOLT, RH, on oders for 490791R1 furnish tube assy, 60420C2 and eyebolt, 60423C3

1шт.

426899

NUT,Jam, 1"-8, G5

1 in. C-Z hex. jam

2шт.

15

57106C1

PIN

7/8 x 3.7 in. long

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

8шт.

16

463034R1

RIM

WHEEL DISC AND RIM ASSY, 14 x 5 KB, units A, B, G, H, J and K

2шт.

16

481344R91

WHEEL

DISC AND RIM ASSY, 14 x 8 KB, units C, D, E and F, L through P

2шт.

16

481345R91

RIM

WHEEL DISC AND RIM ASSY, 14 x 6 KB, units C, D, E and F

2шт.

16

614424R91

WHEEL ASSY.

WHEEL DISC AND RIM ASSY, 15 x 6 LB, units C, D, E and F

2шт.

16

485669R1

WHEEL DISC AND RIM ASSY, 15 x 6 LB, units C, D, E and F

2шт.

16

486101R2

RIM

WHEEL DISC AND RIM ASSY, 15 x 8 LB, units A through F, L through P

2шт.

16

622192R91

WHEEL

DISC AND RIM ASSY, 15 x 5 KB, units G through K

2шт.

17

60423C3

EYEBOLT

ASSY, ball joint, replaces turnbuckle, 526904R1, eyebolt, 490790R1 and eyebolt, 490791R1 by also ordering tube assy, 60420C2

2шт.

18

60420C2

TUBE,11.56" Length

ASSY, replaces turnbuckle, 526904R1, eyebolt, 490790R1 and eyebolt, 490791R1 by also ordering eyebolt, 60423C3

2шт.

19

129603C2

SUPPORT

BAR, pivot

2шт.

20

129593C1

BUSHING,22.23mm ID x 28.57mm OD x 18.29mm L

tension, for service use on wheel axle tube pivot bar with excessive pin hole wear

1шт.

63881C91

BEARING

KIT, wheel bearing, consists of, (1) outer cone 371882R91, (1) outer cup 371883R1, (1) inner cone 618023R91 (1) inner cup 618024R1, (1) seal 667599R91, (1) ring 667564R1, (1) ring 667564R1, (1) cap 663908R1

1шт.
