Запчасти Case IH 3950 (8-01) - HYDRAULIC TRANSPORT SYSTEM (08) - HYDRAULICS

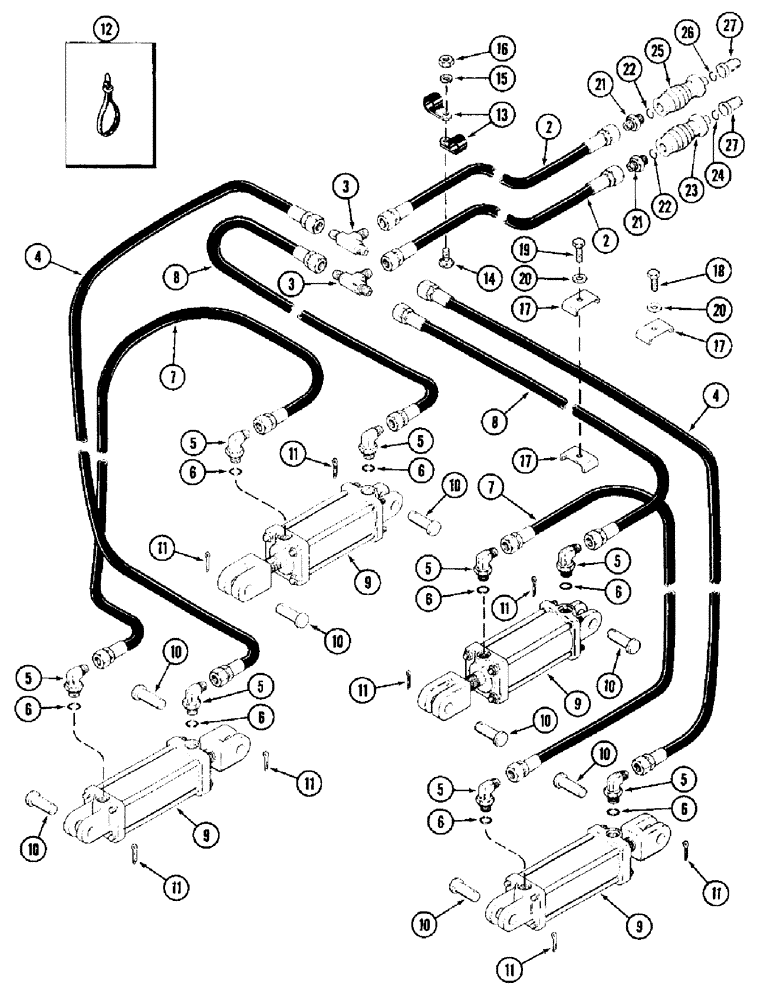

Схема запчастей Case IH 3950 - (8-01) - HYDRAULIC TRANSPORT SYSTEM (08) - HYDRAULICS
5
9
17
10
27
11
4
25
18
6
23
10
11
5
19
6
5
7
6
12
21
11
11
5
9
10
10
5
8
17
11
10
22
20
4
6
26
11
27
16
13
2
3
6
9
17
6
6
9
22
10
5
10
10
3
20
6
24
15
11
14
2
5
21
5
11
8
7

Артикул

Название

Примечание

Количество

2

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 4445 mm (175 inch) long

2шт.

3

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

4

139519C2

HYDRAULIC HOSE

HOSE - 3429 mm (135 inch) long

2шт.

Used on disk harrows coded A, B, C, and D.

1шт.

4

129759C2

HYDRAULIC HOSE

HOSE - 4572 mm (180 inch) long

2шт.

Used on disk harrows coded E, F, G, and H.

1шт.

4

129765C2

HYDRAULIC HOSE

HOSE - 5080 mm (200 inch) long

2шт.

Used on disk harrows coded I, J, K, and L.

1шт.

4

129764C2

HYDRAULIC HOSE

HOSE - 5461 mm (215 inch) long

2шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. 6

8шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

139654C2

HYDRAULIC HOSE

HOSE - 3175 mm (125 inch) long

2шт.

Used on disk harrows coded A, B, C, and D.

1шт.

7

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long

2шт.

Used on disk harrows coded E, F, G, and H.

1шт.

7

129782C2

HYDRAULIC HOSE

HOSE - 4191 mm (165 inch) long

2шт.

Used on disk harrows coded I, J, K, and L.

1шт.

7

129759C2

HYDRAULIC HOSE

HOSE - 4572 mm (180 inch) long

2шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

8

129672C2

HYDRAULIC HOSE

HOSE - 991 mm (39 inch) long

2шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic transport, See Figure 8-4

4шт.

10

810751C1

PIN

- headed, 1 x 3-1/2 inch

8шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

6шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

16шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

8шт.

15

492-11038

LOCK WASHER,3/8"

8шт.

16

425-106

NUT,3/8"-16, Cl 5

8шт.

17

129886C2

CLAMP

- hose

1шт.

18

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Inc. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

236881A1

GRIP

KIT - HYDRA-GRIP, red, 1/2 inch PT (If used)

1шт.

236878A1

GRIP

KIT - HYDRA-GRIP, red, 3/4-16 inch O-ring boss, Inc. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - red, extend, 3/4-16 inch O-ring boss, Inc. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - red, retract, 3/4-16 inch O-ring boss, Inc.26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.
