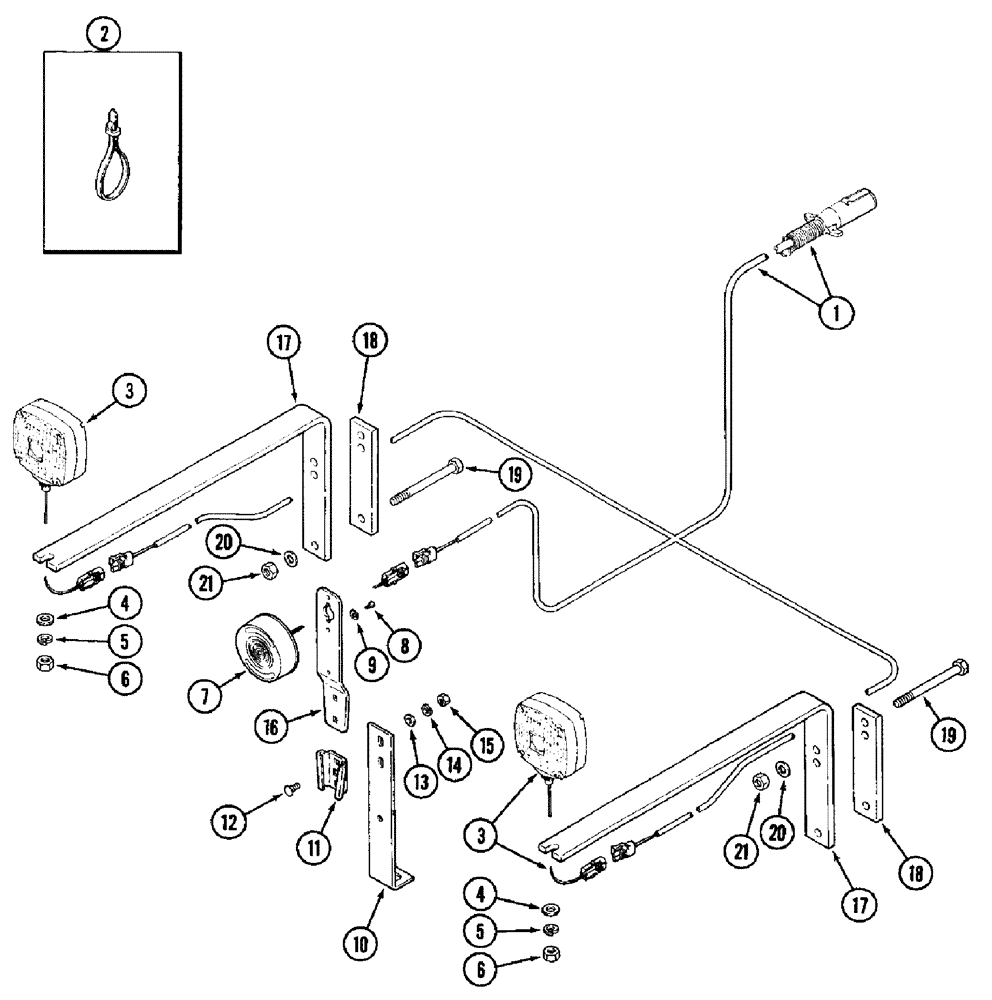

Запчасти Case IH 3950 (4-1) - LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

1995523C1

HARNESS

- lighting system

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

12шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - See Figure 4-2

2шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

7

91986C91

LIGHT

LAMP ASSEMBLY - See Figure 4-2

1шт.

8

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

10

131946C1

SUPPORT

BRACKET - mounting

1шт.

11

A59457

BRACKET

- mounting

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

13

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

1978653C1

SUPPORT

BRACKET - lamp mounting

1шт.

17

1995521C1

SUPPORT

- lamp

2шт.

18

1995522C2

BAR

PLATE - mounting

2шт.

9

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

19

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

4шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

12шт.

21

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.
