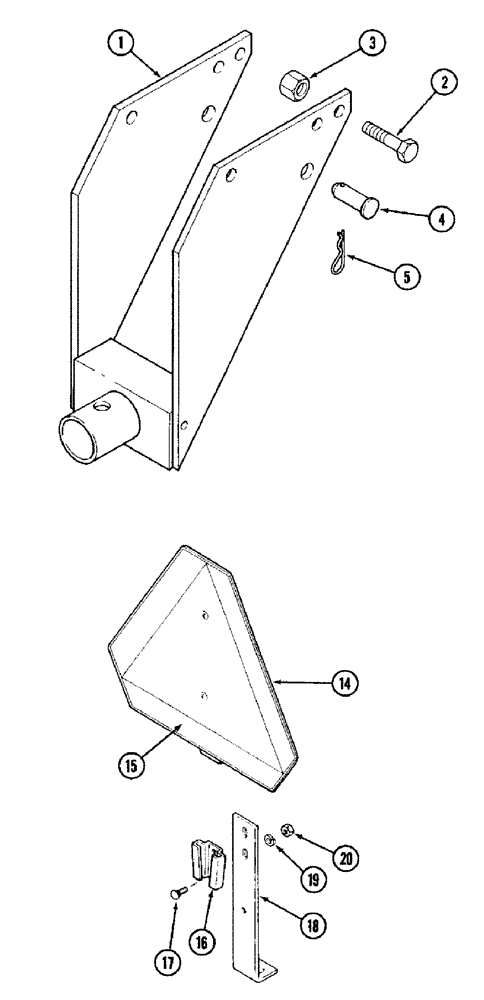

Запчасти Case IH 3950 (9-26) - REAR JACKSTAND ATTACHMENT, SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

1986459C1

TUBE

JACKSTAND ASSEMBLY - rear (Machinery item), Inc. 1 - 5

1шт.

1

1986014C1

BAR

BRACKET - jackstand

1шт.

2

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

3

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.

4

439-51228

HEADED PIN,3/4" x 1 3/4"

PIN - headed, 3/4 x 1-3/4 inch

2шт.

5

1978739C1

PIN

- hair

2шт.

14

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

15

REF

INSTRUCTION

DECAL - SMV emblem, See Figure 9-27

1шт.

16

A59457

BRACKET

- mounting

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

18

131946C1

SUPPORT

BRACKET - mounting

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
