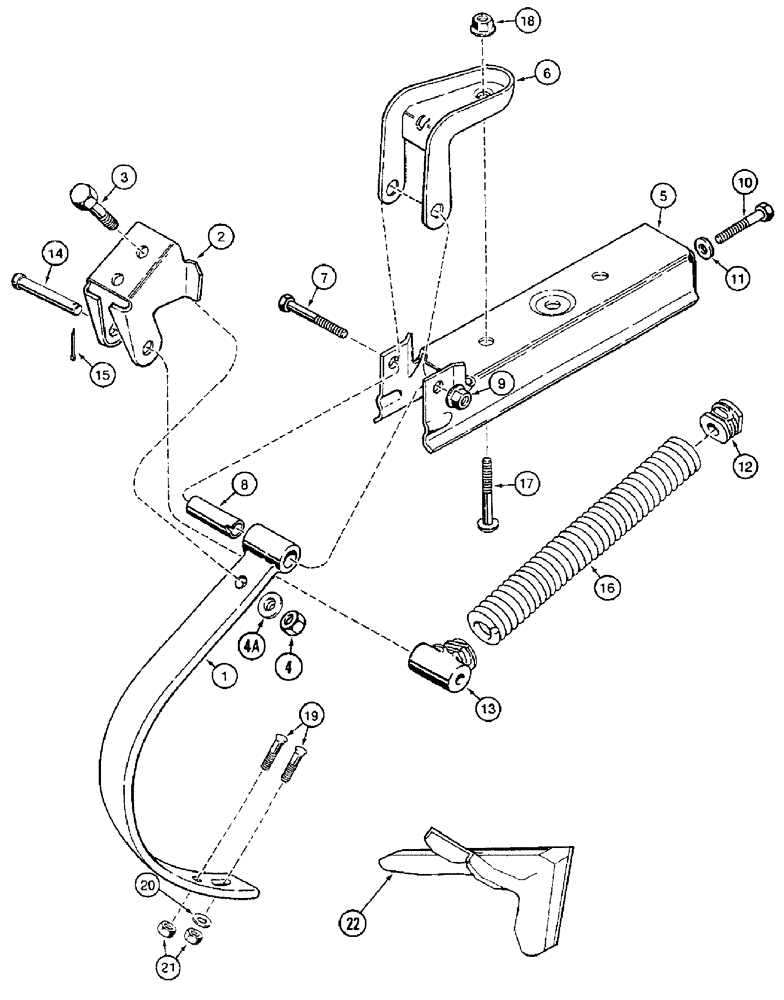

Запчасти Case IH 3950 (9-24) - VIBRA SHANK (09) - CHASSIS/ATTACHMENTS

1

813293C1

SHANK

- ground working tool

1шт.

2

591542R1

BRACKET

CLAMP - shank

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

4a

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

811357C3

SUPPORT

BRACKET - shank

1шт.

6

811353C1

CLAMP

- shank

1шт.

7

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

8

811354C2

BUSHING

- shank clamp

1шт.

9

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

12

591547R1

PLUG

- spring retaining

1шт.

13

591544R1

PLUG

- spring

1шт.

14

591545R1

PIN,13.08mm OD x 61.98mm L

- special

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

1шт.

16

591546R2

SPRING

- shank return

1шт.

17

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT - special, 1/2 NC x 4 inch

1шт.

18

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

19

420-3724

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

BOLT - plow, 7/16 NC x 1-1/2 inch, grade 8

2шт.

20

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch

1шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

22

1547097C2

SWEEP

7.5

1шт.
