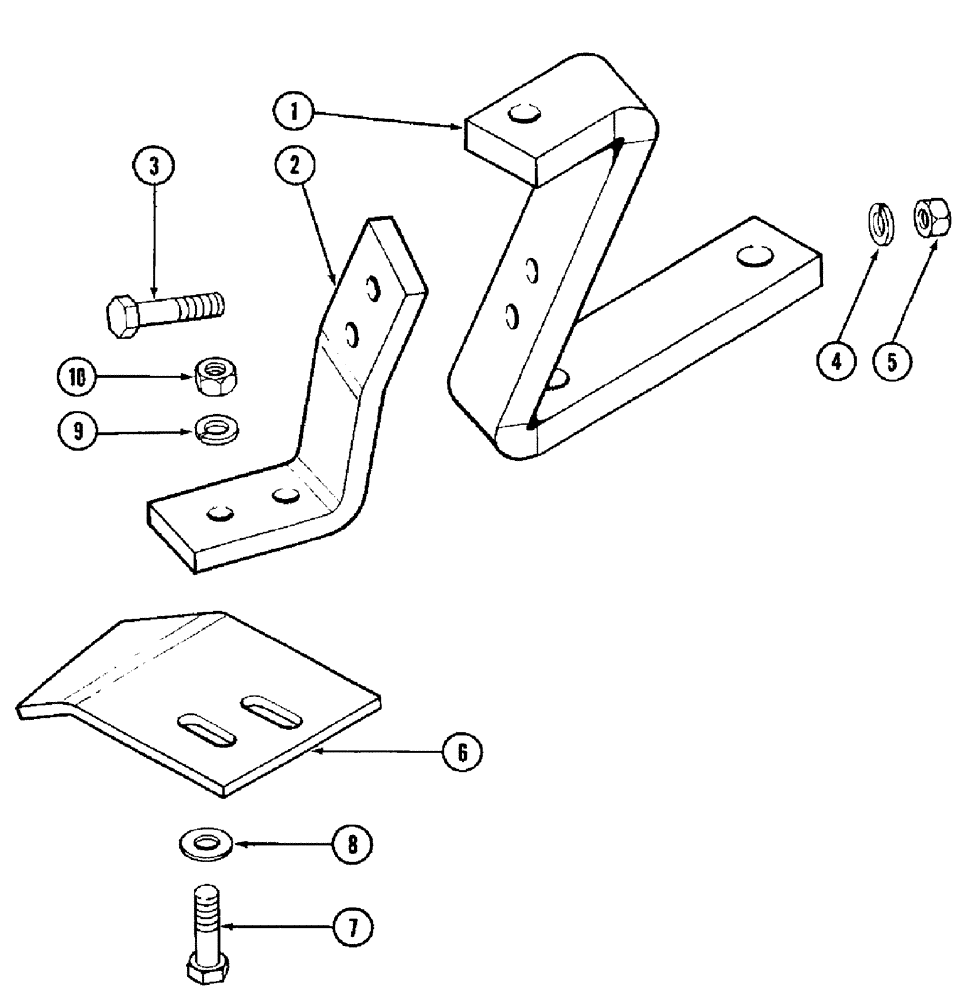

Запчасти Case IH 3950 (9-22) - TRASH GUARD (DISK SCRAPER) - CUSHION GANG, 7-1/2 & 9 INCH (09) - CHASSIS/ATTACHMENTS

1

194634A2

SUPPORT

- scraper/trunnion, right-hand (Shown)

1шт.

1

194633A2

SUPPORT

- scraper/trunnion, left-hand

1шт.

2

244786A1

BRACKET

SUPPORT - trash guard, right-hand

1шт.

2

244945A1

BRACKET

SUPPORT - trash guard, left-hand

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

6

256104A1

BLADE

- scraper, right-hand (9 inch spacing only)

1шт.

6

256103A1

BLADE

- scraper, left-hand long (9inch spacing only)

1шт.

6

244787A1

BLADE

- scraper, right-hand short

1шт.

6

246344A1

BLADE

- scraper, left-hand short

1шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
