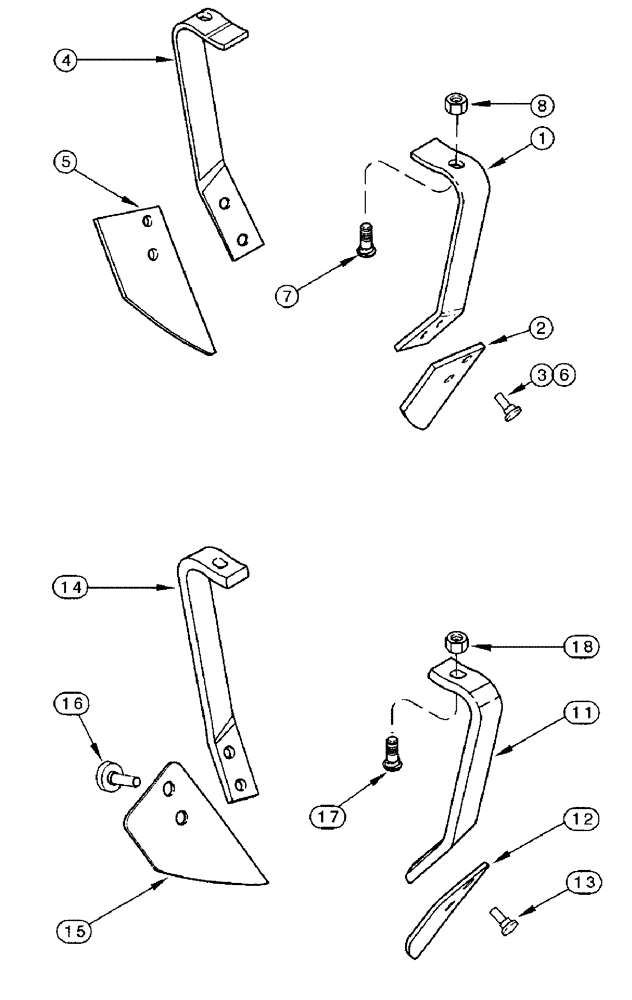

Запчасти Case IH 3950 (9-21) - DISK SCRAPER, STANDARD AND HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY - disk, right-hand

1шт.

Standard

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

Standard

1шт.

2

121118C2

BLADE

- scraper

1шт.

Standard

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

121119C92

SCRAPER

ASSEMBLY - disk, left-hand

1шт.

Standard

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

Standard

1шт.

5

121118C2

BLADE

- scraper

1шт.

Standard

1шт.

6

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

7

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

1шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

195939A1

BRACKET

ASSEMBLY - disk, right-hand

1шт.

Heavy duty

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

Heavy duty

1шт.

12

195916A2

BLADE

- scraper

1шт.

Heavy duty

1шт.

13

147-351

RIVET,12.7mm OD x 38.1mm L

- flat head, 1/2 x 1-1/2 inch, blade retaining

2шт.

195938A1

SCRAPER

ASSEMBLY - disk, left-hand

1шт.

Heavy duty

1шт.

14

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

Heavy duty

1шт.

15

195916A2

BLADE

- scraper

1шт.

Heavy duty

1шт.

16

147-351

RIVET,12.7mm OD x 38.1mm L

- flat head, 1/2 x 1-1/2 inch, blade retaining

2шт.

17

231425A1

BOLT

- special, scraper retaining

1шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
