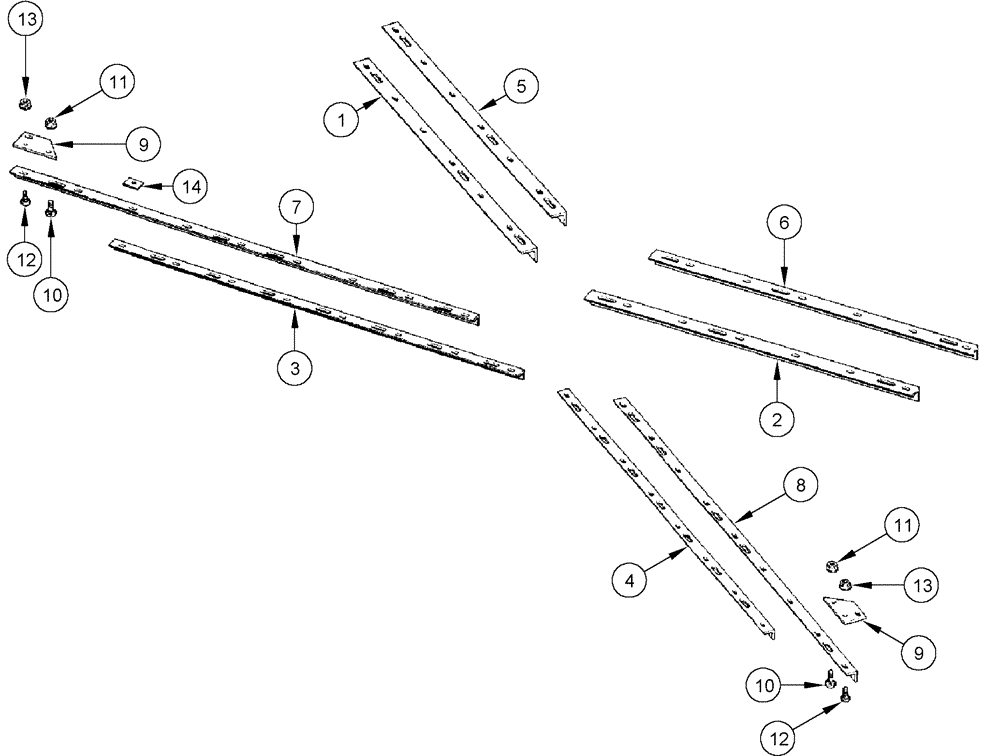

Запчасти Case IH 3950 (9-20) - WING GANG SCRAPER SUPPORTS, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

220132A2

ANGLE

SUPPORT - scraper, 54 inch (1372 mm) long, left-hand front (Shown)

1шт.

Used on disk harrows coded C and D.

1шт.

1

225916A2

ANGLE

SUPPORT - scraper, 70-7/7 inch (1800 mm) long, left-hand front

1шт.

Used on disk harrows coded G, H, K, and L.

1шт.

1

225919A2

ANGLE

SUPPORT - scraper, 90-1/4 inch (2292 mm) long, left-hand front

1шт.

Used on disk harrows coded M and N.

1шт.

1

195914A2

ANGLE

SUPPORT - scraper, 58 inch (1474 mm) long, left-hand front

1шт.

Used on disk harrows coded T, U, and V.

1шт.

2

220133A2

ANGLE

SUPPORT - scraper, 54 inch (1372 mm) long, right-hand front (Shown)

1шт.

Used on disk harrows coded C and D.

1шт.

2

225915A2

ANGLE

SUPPORT - scraper, 70-7/8 inch (1800 mm) long, right-hand front

1шт.

Used on disk harrows coded G, H, K, and L.

1шт.

2

225918A2

ANGLE

SUPPORT - scraper, 90-1/4 inch (2292 mm) long, right-hand front

1шт.

Used on disk harrows coded M and N.

1шт.

2

195913A2

ANGLE

SUPPORT - scraper, 58 inch (1474 mm) long, right-hand front

1шт.

Used on disk harrows coded T, U, and V.

1шт.

3

220128A2

ANGLE

SUPPORT - scraper, 67 inch (1704 mm) long, left-hand rear (Shown)

1шт.

Used on disk harrows coded C and D.

1шт.

3

229977A2

ANGLE

SUPPORT - scraper, 85 inch (2158 mm) long, left-hand rear

1шт.

Used on disk harrows coded G and H.

1шт.

3

225920A2

ANGLE

SUPPORT - scraper, 94-1/4 inch (2394 mm) long, left-hand rear

1шт.

Used on disk harrows coded K and L.

1шт.

3

225912A2

ANGLE

SUPPORT - scraper, 112-3/8 inch (2854 mm) long, left-hand rear

1шт.

Used on disk harrows coded M and N.

1шт.

3

195913A2

ANGLE

SUPPORT - scraper, 58inch (1474 mm) long, left-hand rear

1шт.

Used on disk harrows coded T, U, and V.

1шт.

4

220129A2

ANGLE

SUPPORT - scraper, 67 inch (1704 mm) long, right-hand rear (Shown)

1шт.

Used on disk harrows coded C and D.

1шт.

4

229976A2

ANGLE

SUPPORT - scraper, 85 inch (2158 mm) long, right-hand rear

1шт.

Used on disk harrows coded G and H.

1шт.

4

225921A2

ANGLE

SUPPORT - scraper, 94-1/4 inch (2394 mm) long, right-hand rear

1шт.

Used on disk harrows coded K and L.

1шт.

4

225914A2

ANGLE

SUPPORT - scraper, 112-3/8 inch (2854 mm) long, right-hand rear

1шт.

Used on disk harrows coded M and N.

1шт.

4

195914A2

ANGLE

SUPPORT - scraper, 58 inch (1474 mm) long, right-hand rear

1шт.

Used on disk harrows coded T, U, and V.

1шт.

5

220132A2

ANGLE

SUPPORT - scraper, 54 inch (1372 mm) long, left-hand front (See Note D)

1шт.

Used on disk harrows coded T, U, and V.

1шт.

6

220133A2

ANGLE

SUPPORT - scraper, 54 inch (1372 mm) long, right-hand front (See Note D)

1шт.

Used on disk harrows coded T, U, and V.

1шт.

7

220130A2

ANGLE

SUPPORT - scraper, 76 inch (1932 mm) long, left-hand rear (See Note D)

1шт.

Used on disk harrows coded T, U, and V.

1шт.

8

220131A2

ANGLE

SUPPORT - scraper, 76 inch (1932 mm) long, right-hand rear (See Note D)

1шт.

Used on disk harrows coded T, U, and V.

1шт.

9

1986108C1

BAR

- furrow filler scraper extension (If used)

2шт.

10

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

11

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC,grade 8

1шт.

12

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining (If used)

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

14

136222A1

SHIM

- scraper support (If used)

1шт.
