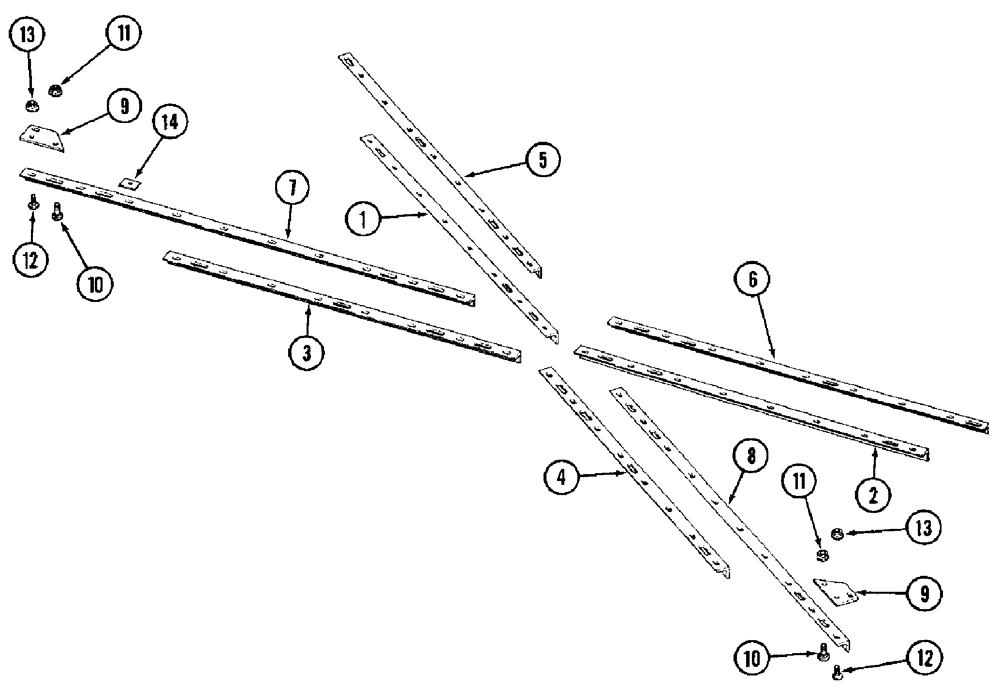

Запчасти Case IH 3950 (9-19) - WING GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

229970A2

ANGLE

SUPPORT - scraper, 52-5/8 inch (1338 mm) long, left-hand front

1шт.

Used on disk harrows coded A and B.

1шт.

1

229973A2

ANGLE

SUPPORT - scraper, 75-3/8 inch (1914 mm) long, left-hand front

1шт.

Used on disk harrows coded E, F, I, and J.

1шт.

1

229961A2

ANGLE

SUPPORT - scraper, 98 inch (2488 mm) long, left-hand front

1шт.

Used on disk harrows coded O and P.

1шт.

1

229965A2

ANGLE

SUPPORT - scraper, 56-5/8 inch (1438 mm) long, left-hand front (Shown)

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

2

229969A2

ANGLE

SUPPORT - scraper, 52-5/8 inch (1338 mm) long, right-hand front

1шт.

Used on disk harrows coded A and B.

1шт.

2

229972A2

ANGLE

SUPPORT - scraper, 75-3/8 inch (1914 mm) long, right-hand front

1шт.

Used on disk harrows coded E, F, I, and J.

1шт.

2

229962A2

ANGLE

SUPPORT - scraper, 98 inch (2488 mm) long, right-hand front

1шт.

Used on disk harrows coded O and P.

1шт.

2

229964A2

ANGLE

SUPPORT - scraper, 56-5/8 inch (1438 mm) long, right-hand front (Shown)

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

3

229954A2

ANGLE

SUPPORT - scraper, 64-1/8 inch (1630 mm) long, left-hand rear

1шт.

Used on disk harrows coded A and B.

1шт.

3

229966A2

ANGLE

SUPPORT - scraper, 86-7/8 inch (2206 mm) long, left-hand rear

1шт.

Used on disk harrows coded E, F, I, and J.

1шт.

3

229963A2

ANGLE

SUPPORT - scraper, 109-1/2 inch (2782 mm) long, left-hand rear

1шт.

Used on disk harrows coded O and P.

1шт.

3

229964A2

ANGLE

SUPPORT - scraper, 55-5/8 inch (1438 mm) long, left-hand rear (Shown)

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

4

229954A2

ANGLE

SUPPORT - scraper, 64-1/8 inch (1630 mm) long, right-hand rear

1шт.

Used on disk harrows coded A and B.

1шт.

4

229966A2

ANGLE

SUPPORT - scraper, 86-7/8 inch (2206 mm) long, right-hand rear

1шт.

Used on disk harrows coded E, F, I, and J.

1шт.

4

229963A2

ANGLE

SUPPORT - scraper, 109-1/2 inch (2782 mm) long, right-hand rear

1шт.

Used on disk harrows coded O and P.

1шт.

4

229965A2

ANGLE

SUPPORT - scraper, 55-5/8 inch (1438 mm) long, right-hand rear (Shown)

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

5

229959A2

ANGLE

SUPPORT - scraper, 60-1/4 inch (1530 mm) long, left-hand front

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

6

229957A2

ANGLE

SUPPORT - scraper, 60-1/4 inch (1530 mm) long, right-hand front

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

7

229997A2

ANGLE

SUPPORT - scraper, 71-3/4 inch (1822 mm) long, left-hand rear

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

8

229997A2

ANGLE

SUPPORT - scraper, 71-3/4 inch (1822 mm) long, right-hand rear

1шт.

Used on disk harrows coded Q, R, and S.

1шт.

9

1986108C1

BAR

- furrow filler scraper extension (if used)

2шт.

10

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

11

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

12

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

14

136222A1

SHIM

- scraper support (If used)

1шт.
