(9-18) - MAIN GANG SCRAPER SUPPORTS, 9 INCH CUSHION SPACING

Запчасти Case IH 3950 (9-18) - MAIN GANG SCRAPER SUPPORTS, 9 INCH CUSHION SPACING (09) - CHASSIS/ATTACHMENTS

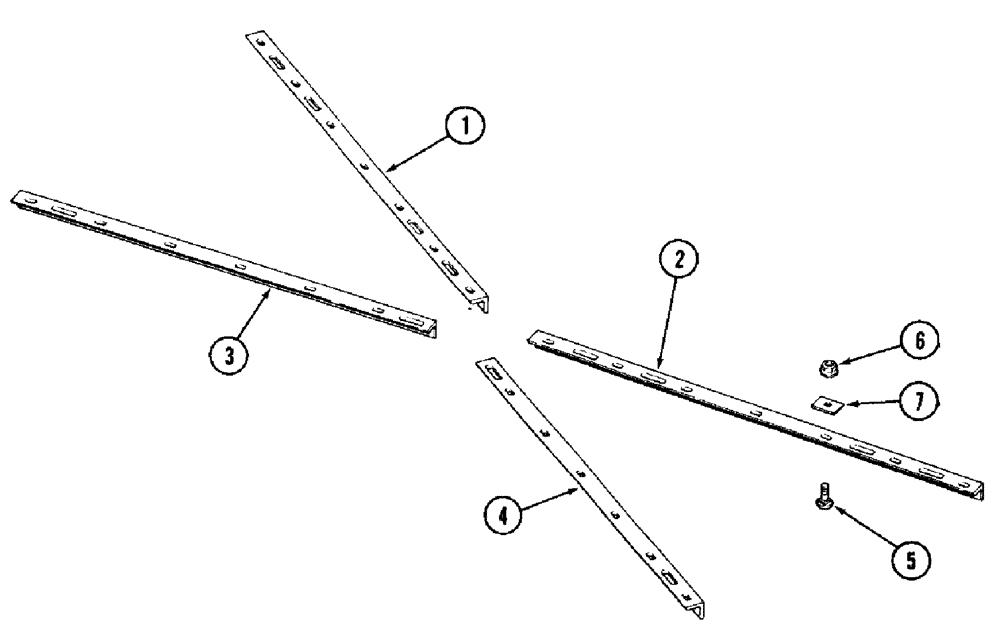

Схема запчастей Case IH 3950 - (9-18) - MAIN GANG SCRAPER SUPPORTS, 9 INCH CUSHION SPACING (09) - CHASSIS/ATTACHMENTS
1
6
7
3
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

229975A2

ANGLE

SUPPORT - scraper, 48-7/8 inch (1240 mm) long, left-hand front (prior to P.I.N. JAG0751165) (Shown)

1шт.

Used on disk harrows coded D and H.

1шт.

1

252090A2

ANGLE

SUPPORT - scraper, 49 inch (1244 mm) long, left-hand front (P.I.N. JAG0751165 and after)

1шт.

Used on disk harrows coded D and H.

1шт.

1

220129A2

ANGLE

SUPPORT - scraper, 67 inch (1704 mm) long, left-hand front (prior to P.I.N. JAG0751165)

1шт.

Used on disk harrows coded L, N, and V.

1шт.

1

252092A2

ANGLE

SUPPORT - scraper, 66-3/4 inch (1696 mm) long, left-hand front (P.I.N. JAG0751165 and after)

1шт.

Used on disk harrows coded L, N, and V.

1шт.

2

229974A2

ANGLE

SUPPORT - scraper, 48-7/8 inch (1240 mm) long, right-hand front (prior to P.I.N. JAG0751165) (Shown)

1шт.

Used on disk harrows coded D and H.

1шт.

2

252091A2

ANGLE

SUPPORT - scraper, 49 inch (1244 mm) long, right-hand front (P.I.N. JAG0751165 and after)

1шт.

Used on disk harrows coded D and H.

1шт.

2

220128A2

ANGLE

SUPPORT - scraper, 67 inch (1704 mm) long, right-hand front (prior to P.I.N. JAG0751165)

1шт.

Used on disk harrows coded L, N, and V.

1шт.

2

252093A2

ANGLE

SUPPORT - scraper, 66-3/4 inch (1696 mm) long, right-hand front (P.I.N. JAG0751165 and after)

1шт.

Used on disk harrows coded L, N, and V.

1шт.

3

229978A2

ANGLE

SUPPORT - scraper, 45-1/4 inch (1150 mm) long, left-hand rear (Shown)

1шт.

Used on disk harrows coded D and H.

1шт.

3

220133A2

ANGLE

SUPPORT - scraper, 54 inch (1372 mm) long, left-hand rear

1шт.

Used on disk harrows coded L, N, and V.

1шт.

4

229979A2

ANGLE

SUPPORT - scraper, 45-1/4 inch (1150 mm) long, right-hand rear (Shown)

1шт.

Used on disk harrows coded D and H.

1шт.

4

220132A2

ANGLE

SUPPORT - scraper, 54 inch (1372 mm) long, right-hand rear

1шт.

Used on disk harrows coded L, N, and V.

1шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

8шт.

6

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

8шт.

7

136222A1

SHIM

- scraper support (If Used)

1шт.
