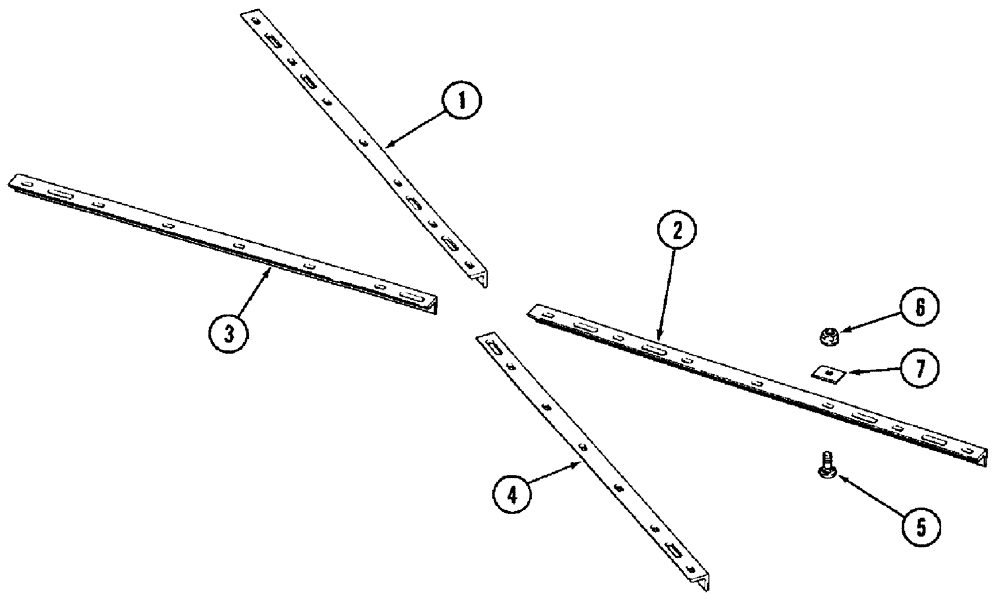

Запчасти Case IH 3950 (9-15) - MAIN GANG SCRAPER SUPPORTS, 7-1/2 INCH RIGID SPACING (09) - CHASSIS/ATTACHMENTS

1

229971A2

ANGLE

SUPPORT - scraper, 49 inch (1246 mm) long, left-hand front (Shown)

1шт.

Used on disk harrows coded A and E.

1шт.

1

229954A2

ANGLE

SUPPORT - scraper, 64-1/8 inch (1630 mm) long, left-hand front

1шт.

Used on disk harrows coded I, O, Q, and R.

1шт.

2

229971A2

ANGLE

SUPPORT - scraper, 49 inch (1246 mm) long, right-hand front (Shown)

1шт.

Used on disk harrows coded A and E.

1шт.

2

229954A2

ANGLE

SUPPORT - scraper, 64-1/8 inch (1630 mm) long, right-hand front

1шт.

Used on disk harrows coded I, O, Q, and R.

1шт.

3

229968A2

ANGLE

SUPPORT - scraper, 45 inch (1145 mm) long, left-hand rear (Shown)

1шт.

Used on disk harrows coded A and E.

1шт.

3

229957A2

ANGLE

SUPPORT - scraper, 60-1/4 inch (1530 mm) long, left-hand rear

1шт.

Used on disk harrows coded I, O, Q, and R.

1шт.

4

229967A2

ANGLE

SUPPORT - scraper, 45 inch (1145 mm) long, right-hand rear (Shown)

1шт.

Used on disk harrows coded A and E.

1шт.

4

229959A2

ANGLE

SUPPORT - scraper, 60-1/4 inch (1530 mm) long, right-hand rear

1шт.

Used on disk harrows coded I, O, Q, and R.

1шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

8шт.

6

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

8шт.

7

136222A1

SHIM

- scraper support (If Used)

1шт.
