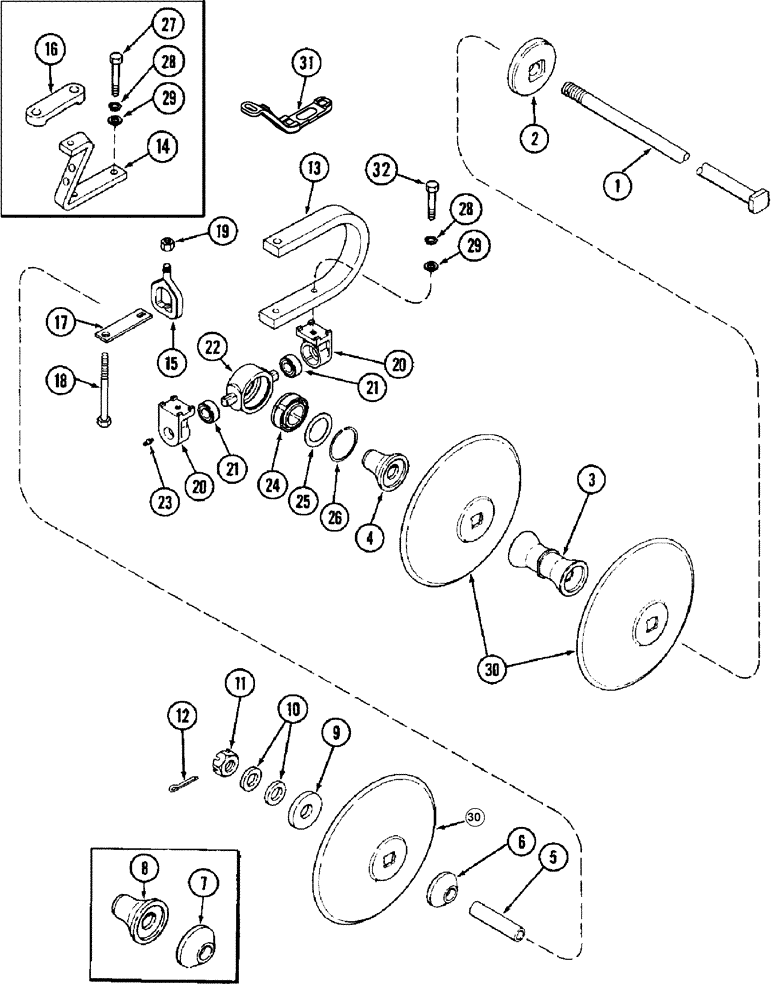

Запчасти Case IH 3950 (9-14) - CUSHION DISK GANG, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

BOLT - arbor, 1244 mm (49 inch) long, 6 blade 9 inch spacing

1шт.

1

1263537C6

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

BOLT - arbor, 1472 mm (58 inch) long, 7 blade 9 inch spacing

1шт.

1

1263538C6

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

BOLT - arbor, 1708 mm (67-1/4 inch) long, 8 blade 9 inch spacing

1шт.

1

1263539C6

BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

BOLT - arbor, 1937 mm (76-1/4 inch) long, 9 blade 9 inch spacing

1шт.

1

1263540C6

BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled

BOLT - arbor, 2171 mm (85-1/2 inch) long, 10 blade 9 inch spacing

1шт.

1

1263541C6

BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

BOLT - arbor, 2403 mm (94-5/8 inch) long, 11 blade 9 inch spacing

1шт.

1

1986271C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 112 7/8", Carbon Steel

BOLT - arbor, 2867 mm (112-7/8 inch) long, 13 blade 9 inch spacing

1шт.

2

1344908C1

WASHER

- bumper

1шт.

3

139918C1

SPACER

SPOOL - spacing, 9 inch spacing

1шт.

4

101191C1

SPOOL

- bearing, 4 inch long

1шт.

5

112410C1

TUBE

BUSHING - support, 9 inch long

1шт.

6

101190C1

SPOOL

- bearing, 3 inch long

1шт.

7

101189C1

SPOOL

- bearing, 1-1/2 inch long, front gang only, center bearing

1шт.

8

243280A1

SPOOL

- bearing, 5-1/2 inch, front main gang only, center bearing

1шт.

9

139773C1

WASHER

WASHER - end

1шт.

10

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

- arbor bolt

1шт.

11

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

1шт.

12

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

13

193831A1

SPRING

- cushion gang

1шт.

14

194634A2

SUPPORT

- scraper/trunnion, right-hand (Shown)(If used)

1шт.

14

194633A2

SUPPORT

- scraper/trunnion, left-hand (If used)

1шт.

15

195495A1

EYEBOLT,Spring, 7/8" - 9 x 176mm

BOLT - spring eye

1шт.

16

195496A1

SUPPORT

- cushion spring (If used)

1шт.

17

244620A1

RETAINER

BAR - bolt retainer

1шт.

18

413-1496

BOLT,Hex, 7/8" - 9 x 6", Gr 5

- hex, 7/8 NC x 6 inch

1шт.

19

230-42114

LOCK NUT,7/8"-9, GA

NUT - hex, self-locking, 7/8 inch NC

1шт.

20

195109A1

TRUNNION

PIVOT - trunnion

1шт.

21

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

- pivot

1шт.

194704A1

BEARING ASSY,44.96mm ID x 110mm OD x 38.25mm W

TRUNNION ASSEMBLY - bearing

1шт.

22

NSS

NOT SOLD SEPARAT

TRUNNION - bearing

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

24

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

BEARING - trunnion

1шт.

25

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

WASHER - retaining

1шт.

26

101-21433

SNAP RING,#433, 4.641", Int

RING, SNAP, #433, 4.641", Int

1шт.

27

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

28

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

29

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

1шт.

30

31000R1

DISC

DISK - solid, 559 x 5 mm

1шт.

30

30999R1

DISC

DISK - solid, 508 x 5 mm

1шт.

30

31230R1

DISC

DISK - solid, 457 x 5 mm

1шт.

30

31217R2

DISC

DISK - solid, 559 x 6.5 mm

1шт.

30

31232R2

DISC

DISK - solid, 508 x 6.5 mm

1шт.

31

329523A1

SUPPORT

- scraper angel, right-hand (Shown)(If used)

1шт.

31

329521A1

SUPPORT

- scraper angel, left-hand (If used)

1шт.

32

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.
